ACA38

Toyota RAV4-VANGUARD · 2005 · 3,594 parts · 190 categories

← Back to categories

3,594 items

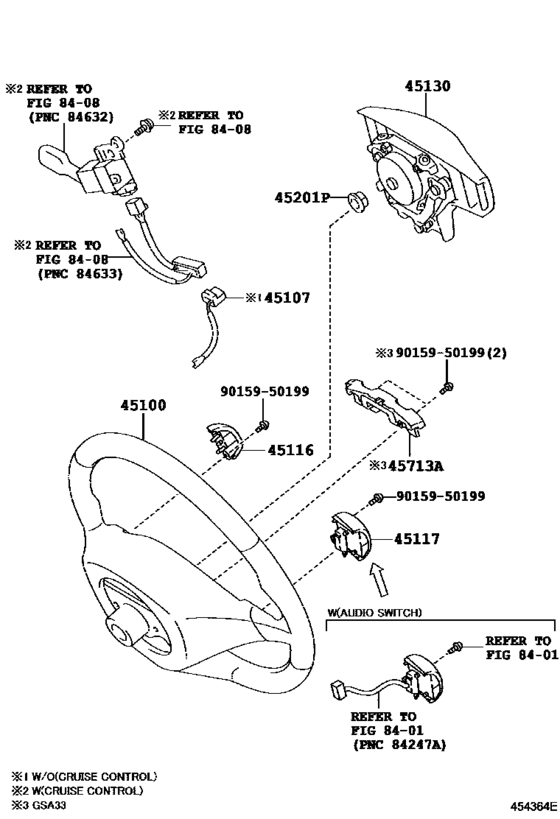

Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC) 7

#	OEM	Part name
45100	45100-42131-B0	Wheel Assy, Steering
45100	45100-42151-B0	Wheel Assy, Steering
45116	45116-42041-B0	Ornament, Steering Wheel, No.1
45117	45117-42061-B0	Ornament, Steering Wheel, No.2
45130	45130-42100-B0	Button Assy, Horn
45201	90179-12071	Nut, Steering Wheel Set
9015950199	90159-50199	SCREW

OEM	Part name	Category
45100-42131-B0	Wheel Assy, Steering	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
45100-42151-B0	Wheel Assy, Steering	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
45116-42041-B0	Ornament, Steering Wheel, No.1	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
45117-42061-B0	Ornament, Steering Wheel, No.2	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
45130-42100-B0	Button Assy, Horn	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
90159-50199	SCREW	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([12.2008 - ] 3-SPOKE,TYPE A (0812- )ACA38,ALA35..DCR,HTWC..ARL,EUR,GCC)
