ACA38

Toyota RAV4-VANGUARD · 2005 · 3,594 parts · 190 categories

3,594 items

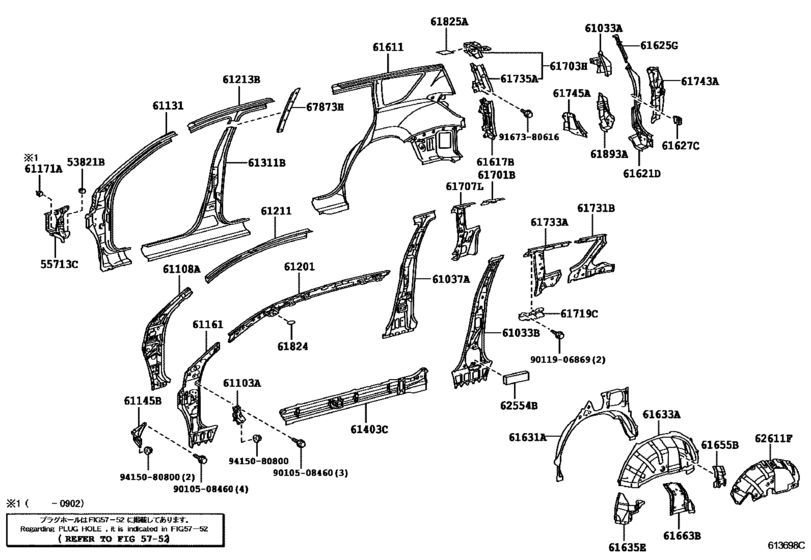

Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33) 48

#	OEM	Part name
53821	53821-16010	Bracket, Front Fender, Rear Rh
55713	55713-42050	Panel, Cowl Top Side, Rh
61033	61033-42021	Reinforce Sub-Assy, Back Door Opening Side
61033	61033-42010	Pillar Sub-Assy, No.2 Inner, Rh
61037	61037-42901	Reinforcement Sub-Assy, Center Body Pillar, Rh
61103	61103-42020	Reinforcement Sub-Assy, Cowl Side, Rh
61108	61108-42903	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61131	61131-42201	Pillar, Front Body, Upper Outer Rh
61145	61145-42020	Gusset, Front Body Pillar, Lower Rh
61161	61023-42111	Pillar, Front Body, Upper Inner Rh
61201	61201-42030	Rail Sub-Assy, Roof Side, Rh
61211	61211-42060	Rail, Roof Side, Outer Rh
61213	61213-42010	Rail, Roof Side, Outer No.2 Rh
61311	61311-42020	Pillar, Center Body, Outer Rh
61403	61403-42030	Reinforce Sub-Assy, Rocker, Outer Rh
61611	61601-42030	Panel, Quarter, Rh
61611	61601-42070	Panel, Quarter, Rh
61617	61617-42020	Panel, Quarter Inner, Lower Rh
61621	61621-42041	Trough, Back Door Opening, Rh
61625	61625-42040	Extension, Quarter Panel, Rear Rh
61627	61627-42040	Reinforcement, Quarter Inner Panel, Rh
61631	61631-42060	Panel, Quarter Wheel House, Outer Rh
61633	61633-42060	Panel, Quarter Wheel House, Inner Rh
61633	61633-42061	Panel, Quarter Wheel House, Inner Rh
61635	61065-42010	Extension, Quarter Wheel House, Rh
61635	61065-42011	Extension, Quarter Wheel House, Rh
61655	61655-42030	Gusset, Quarter Wheel House, Inner Rh
61663	61067-42010	Reinforcement, Quarter Wheel House, Inner Center Rh
61701	61701-42010	Panel Sub-Assy, Roof Side, Inner Upper Rh
61703	61703-42051	Reinforcement Sub-Assy, Roof Side, Inner Rh
61707	61707-42040	Panel Sub-Assy, Roof Side, Inner Front Rh
61719	61719-42020	Bracket, Roof Side Rail, Rh
61731	61731-42110	Panel, Roof Side, Inner Rh
61733	61733-42020	Panel, Roof Side, Inner Front Rh
61735	61735-42060	Panel, Roof Side, Inner Rear Rh
61743	61743-42020	Reinforcement, Back Door Opening Side, Rh
61745	61745-42020	Reinforcement, Back Door Opening, Lower Rh
61824	61824-12050	Plate, Noise Control, No.1
61825	61825-42020	Plate, Noise Control, No.2
61893	61893-42010	Retainer, Back Door Lower Hinge, Rh
62554	62554-42030	Pad, Pillar, No.4
62554	62554-52010	Pad, Cowl Side Silencer, No.2
62611	62505-42020	Insulator, Quarter Wheel House, Rh
67873	67873-42010	Weatherstrip, Center Door, Upper No.1
9010508460	90105-08460	New Genuine Part
9011906869	90119-06869	Bolt, W/washer
9167380616	91673-80616	Bolt, W/washer
9415080800	94150-80800	NUT, FLANGE

OEM	Part name	Category
53821-16010	Bracket, Front Fender, Rear Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
55713-42050	Panel, Cowl Top Side, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61023-42111	Pillar, Front Body, Upper Inner Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61033-42010	Pillar Sub-Assy, No.2 Inner, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61033-42021	Reinforce Sub-Assy, Back Door Opening Side	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61037-42901	Reinforcement Sub-Assy, Center Body Pillar, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61065-42010	Extension, Quarter Wheel House, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61065-42011	Extension, Quarter Wheel House, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61067-42010	Reinforcement, Quarter Wheel House, Inner Center Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61103-42020	Reinforcement Sub-Assy, Cowl Side, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61108-42903	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61131-42201	Pillar, Front Body, Upper Outer Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61145-42020	Gusset, Front Body Pillar, Lower Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61201-42030	Rail Sub-Assy, Roof Side, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61211-42060	Rail, Roof Side, Outer Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61213-42010	Rail, Roof Side, Outer No.2 Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61311-42020	Pillar, Center Body, Outer Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61403-42030	Reinforce Sub-Assy, Rocker, Outer Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61601-42030	Panel, Quarter, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61601-42070	Panel, Quarter, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61617-42020	Panel, Quarter Inner, Lower Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61621-42041	Trough, Back Door Opening, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61625-42040	Extension, Quarter Panel, Rear Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61627-42040	Reinforcement, Quarter Inner Panel, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61631-42060	Panel, Quarter Wheel House, Outer Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61633-42060	Panel, Quarter Wheel House, Inner Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61633-42061	Panel, Quarter Wheel House, Inner Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61655-42030	Gusset, Quarter Wheel House, Inner Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61701-42010	Panel Sub-Assy, Roof Side, Inner Upper Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61703-42051	Reinforcement Sub-Assy, Roof Side, Inner Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61707-42040	Panel Sub-Assy, Roof Side, Inner Front Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61719-42020	Bracket, Roof Side Rail, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61731-42110	Panel, Roof Side, Inner Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61733-42020	Panel, Roof Side, Inner Front Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61735-42060	Panel, Roof Side, Inner Rear Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61743-42020	Reinforcement, Back Door Opening Side, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61745-42020	Reinforcement, Back Door Opening, Lower Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61824-12050	Plate, Noise Control, No.1	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61825-42020	Plate, Noise Control, No.2	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
61893-42010	Retainer, Back Door Lower Hinge, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
62505-42020	Insulator, Quarter Wheel House, Rh	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
62554-42030	Pad, Pillar, No.4	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
62554-52010	Pad, Cowl Side Silencer, No.2	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
67873-42010	Weatherstrip, Center Door, Upper No.1	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
90105-08460	New Genuine Part	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
90119-06869	Bolt, W/washer	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
91673-80616	Bolt, W/washer	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
94150-80800	NUT, FLANGE	Side Member ([11.2005 - ] RH (0511- )ACA33,38,GSA33)
