ACA38

Toyota RAV4-VANGUARD · 2005 · 3,594 parts · 190 categories
ACA38 ×

← Back to categories

3,594 items

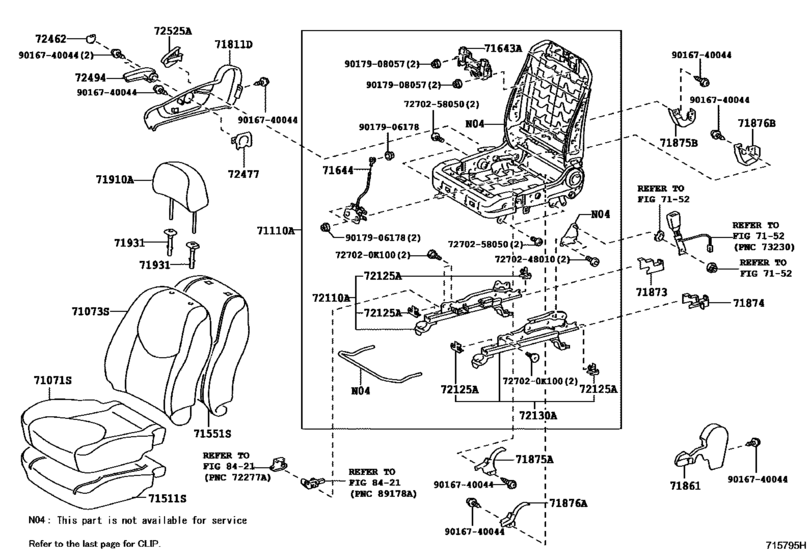

Seat & Seat Track ([08.2008 - ] DRIVER SIDE (0808- )X..ARL) 40
#OEMPart name
71071 71071-42570-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42571-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-42532-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42533-B5 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42533-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42552-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42553-B4 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42553-B2 Cover, Front Seat Back, Rh(For Separate Type)
71110 71110-42330 Frame Assy, Front Seat W/adjuster, Rh
71110 71110-42340 Frame Assy, Front Seat W/adjuster, Rh
71511 71511-42110 Pad, Front Seat Cushion, Rh(For Separate Type)
71551 71551-42140 Pad, Front Seat Back, Rh(For Separate Type)
71551 71551-42150 Pad, Front Seat Back, Rh(For Separate Type)
71643 71643-12011 Unit, Active Headrest, Upr
71644 71644-12030 Unit, Active Headrest, Lwr
71811 71811-42090-B0 Shield, Front Seat Cushion, Rh
71861 71861-42070-B0 Shield, Front Seat Cushion, Inner Rh
71873 71873-42030 Shield, Front Seat Cushion, Lower Rh
71874 71874-42020 Shield, Front Seat Cushion, Lower Lh
71875 71875-42050-B0 Cover, Reclining Adjuster Inside, Rh
71875 71875-58060 Cover, Reclining Adjuster Inside, Rh
71876 71876-42050-B0 Cover, Reclining Adjuster Inside, Lh
71876 71876-58060 Cover, Reclining Adjuster Inside, Rh
71910 71910-42161-B0 Headrest Assy, Front Seat
71910 71910-42161-B2 Headrest Assy, Front Seat
71931 71930-52030-B0 Support Assy, Front Seat Headrest
71931 71931-42020-B4 Support Assy, Front Seat Headrest
72110 72110-42050 Track Assy, Front Seat, Outer Rh
72125 72125-13040 Cover, Seat Track, Upper Rear
72130 72130-42050 Track Assy, Front Seat, Inner Rh
72462 72462-42010-B0 Cover, Vertical Adjuster Rh
72477 72477-52010-C0 Spacer, Vertical Adjuster
72494 72494-42010-B0 Handle, Vertical Adjusting, Rh
72525 72525-42020-B0 Handle, Reclining Adjuster Release, Rh
727020 72702-0K100 Bracket Sub-assy, Rear Seat Back Striker
7270248010 72702-48010 Bracket Sub-assy, Rear Seat Back Striker
7270258050 72702-58050 Bracket Sub-assy, Rear Seat Back Striker
9016740044 90167-40044 BOLT
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9017908057 90179-08057 NUT
