ACA38

Toyota RAV4-VANGUARD · 2005 · 3,594 parts · 190 categories

3,594 items

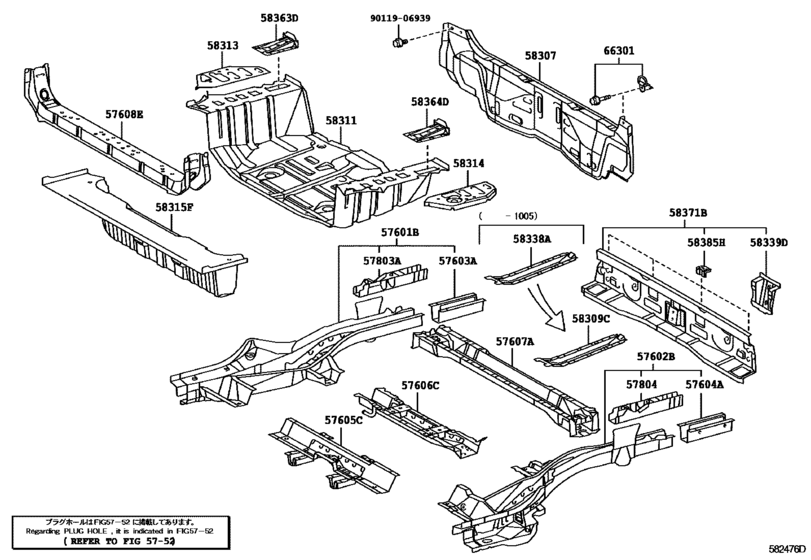

Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33) 31

#	OEM	Part name
57601	57601-42903	Member Sub-Assy, Rear Floor Side, Front Rh
57601	57601-42909	Member Sub-Assy, Rear Floor Side, Front Rh
57601	57601-42905	Member Sub-Assy, Rear Floor Side, Front Rh
57602	57602-42901	Member Sub-Assy, Rear Floor Side, Front Lh
57602	57602-42907	Member Sub-Assy, Rear Floor Side, Front Lh
57602	57602-42903	Member Sub-Assy, Rear Floor Side, Front Lh
57603	57603-42021	Member Sub-Assy, Rear Floor Side, Rear Rh
57604	57604-42020	Member Sub-Assy, Rear Floor Side, Rear Lh
57605	57605-42010	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-42091	Member Sub-Assy, Rear Floor Cross, No.2
57607	57607-42060	Member Sub-Assy, Rear Floor Cross, No.3
57608	57608-42030	Reinforce Sub-Assy, Side Member To Floor, Rh
57803	57803-42010	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh
57804	57804-42010	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh
58307	58307-42010	Panel Sub-Assy, Body Lower Back
58307	58307-42011	Panel Sub-Assy, Body Lower Back
58309	58309-42020	Guard Sub-Assy, Rear Valance Panel
58311	58311-42110	Pan, Rear Floor
58313	58313-42040	Panel, Rear Floor Side, Rh
58314	58314-42040	Panel, Rear Floor Side, Lh
58315	58315-42060	Extension, Rear Floor Side Panel, Front
58338	58338-42030	Reinforcement, Rear Floor Pan, No.2
58339	58339-42030	Bracket, Jack Up
58339	58339-42031	Bracket, Jack Up
58363	58363-42010	Reinforcement, Rear Floor Panel, No.2 Rh
58364	58364-42030	Reinforcement, Rear Floor Panel, No.2 Lh
58371	58302-42010	Panel, Body Lower Back, Outer
58371	58302-42011	Panel, Body Lower Back, Outer
58385	58385-42010	Bracket, Rear Bumper Cover, No.1
66301	66301-42010	Hook Sub-Assy, Rope
9011906939	90119-06939	Bolt, Hood Lock

OEM	Part name	Category
57601-42903	Member Sub-Assy, Rear Floor Side, Front Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57601-42905	Member Sub-Assy, Rear Floor Side, Front Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57601-42909	Member Sub-Assy, Rear Floor Side, Front Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57602-42901	Member Sub-Assy, Rear Floor Side, Front Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57602-42903	Member Sub-Assy, Rear Floor Side, Front Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57602-42907	Member Sub-Assy, Rear Floor Side, Front Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57603-42021	Member Sub-Assy, Rear Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57604-42020	Member Sub-Assy, Rear Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57605-42010	Member Sub-Assy, Rear Floor Cross, No.1	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57606-42091	Member Sub-Assy, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57607-42060	Member Sub-Assy, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57608-42030	Reinforce Sub-Assy, Side Member To Floor, Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57803-42010	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
57804-42010	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58302-42010	Panel, Body Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58302-42011	Panel, Body Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58307-42010	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58307-42011	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58309-42020	Guard Sub-Assy, Rear Valance Panel	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58311-42110	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58313-42040	Panel, Rear Floor Side, Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58314-42040	Panel, Rear Floor Side, Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58315-42060	Extension, Rear Floor Side Panel, Front	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58338-42030	Reinforcement, Rear Floor Pan, No.2	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58339-42030	Bracket, Jack Up	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58339-42031	Bracket, Jack Up	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58363-42010	Reinforcement, Rear Floor Panel, No.2 Rh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58364-42030	Reinforcement, Rear Floor Panel, No.2 Lh	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
58385-42010	Bracket, Rear Bumper Cover, No.1	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
66301-42010	Hook Sub-Assy, Rope	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
90119-06939	Bolt, Hood Lock	Rear Floor Panel & Rear Floor Member ([11.2005 - ] (0511- )ACA33,38,GSA33)
