ACA38

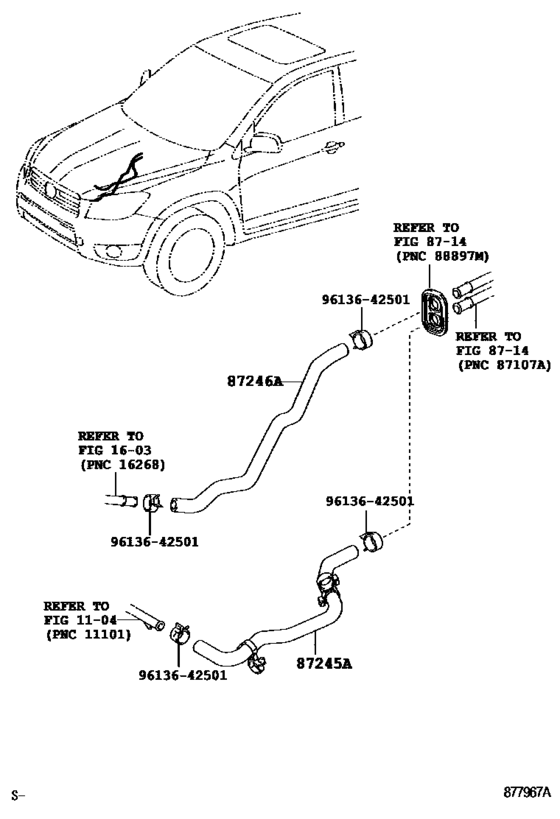

Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..5F ; (0511- )ACA31,33,38) 3
| # | OEM | Part name |
|---|---|---|
| 87245 | 87209-42060 | Hose, Heater Water, Inlet A |
| 87246 | 87245-42350 | Hose, Heater Water, Outlet A |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87209-42060 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..5F ; (0511- )ACA31,33,38) |
| 87245-42350 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..5F ; (0511- )ACA31,33,38) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..5F ; (0511- )ACA31,33,38) |
