ACA38

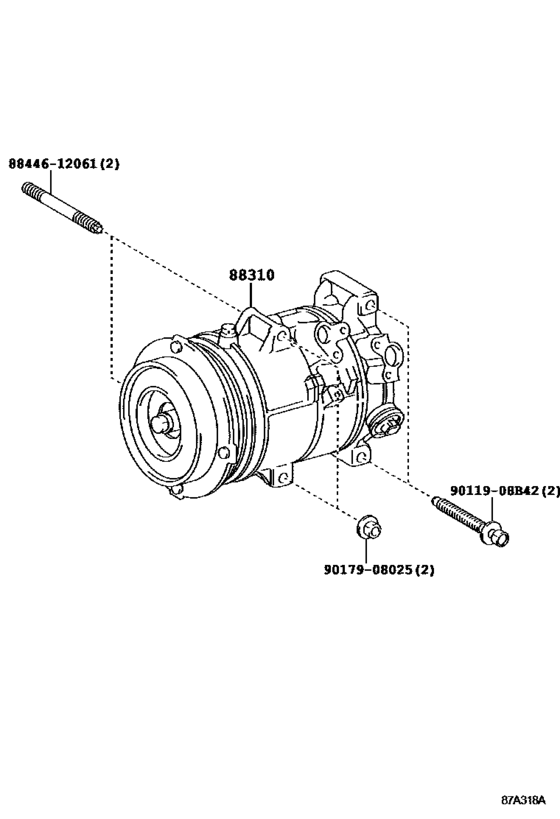

Heating & Air Conditioning - Compressor ([08.2008 - ] (0808- )ACA33,38..ARL,GCC,GEN ; (0812- )AC A33..EUR) 4
| # | OEM | Part name |
|---|---|---|
| 88310 | 88310-42270 | Compressor Assy, W/pulley |
| 9011908 | 90119-08B42 | BOLT WWASHER |
| 8844612061 | 88446-12061 | Bolt, Compressor, No.1 |
| 9017908025 | 90179-08025 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 88310-42270 | Compressor Assy, W/pulley | Heating & Air Conditioning - Compressor ([08.2008 - ] (0808- )ACA33,38..ARL,GCC,GEN ; (0812- )AC A33..EUR) |
| 88446-12061 | Bolt, Compressor, No.1 | Heating & Air Conditioning - Compressor ([08.2008 - ] (0808- )ACA33,38..ARL,GCC,GEN ; (0812- )AC A33..EUR) |
| 90119-08B42 | BOLT WWASHER | Heating & Air Conditioning - Compressor ([08.2008 - ] (0808- )ACA33,38..ARL,GCC,GEN ; (0812- )AC A33..EUR) |
| 90179-08025 | Nut, Cap(For Cylinder Head Cover) | Heating & Air Conditioning - Compressor ([08.2008 - ] (0808- )ACA33,38..ARL,GCC,GEN ; (0812- )AC A33..EUR) |
