ACA33

Toyota RAV4-VANGUARD · 2005 · 4,434 parts · 202 categories
ACA33 ×

← Back to categories

4,434 items

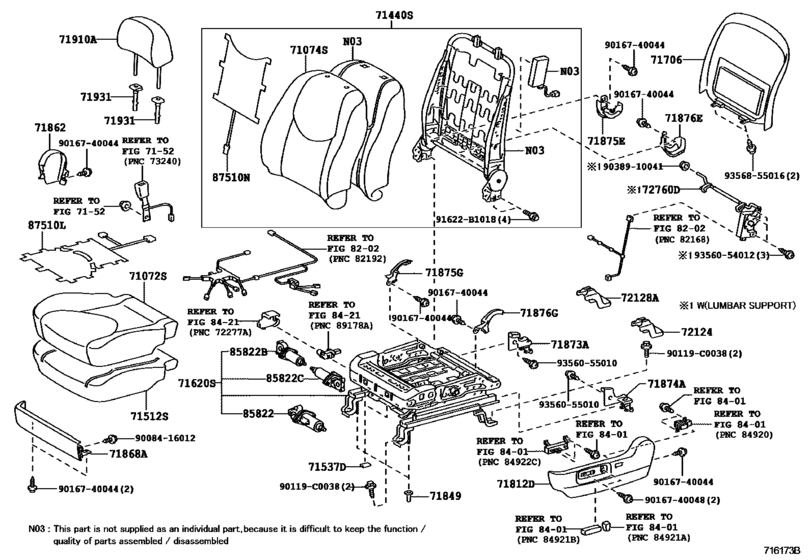

Seat & Seat Track ([03.2009 - ] DRIVER SEAT W(POWER SEAT) (0903- )) 93
#OEMPart name
71072 71072-0R051-B3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-0R051-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-0R060-B1 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-0R060-B2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-0R060-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 71074-0R051-B4 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-0R051-E0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-0R060-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-0R190-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-0R060-B3 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-0R060-E0 Cover, Front Seat Back, Lh(For Separate Type)
71440 71440-0R031-B1 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R031-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R040-B2 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R170-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R040-B3 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R040-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R050-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-0R050-E0 Back Assy, Front Seat, Lh(For Separate Type)
71512 71052-0R020 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71512-0R050 Pad, Front Seat Cushion, Lh (For Separate Type)
71537 71537-02020 Protector, Front Seat Cushion - FRONT SEAT CUSHION EDGE, RH
71620 71620-0R010 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620 71620-0R020 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71706 71771-0R020-B2 Board Sub-Assy, Front Seat Back, Rh
71706 71771-0R020-B3 Board Sub-Assy, Front Seat Back, Rh
71706 71771-0R020-E0 Board Sub-Assy, Front Seat Back, Rh
71812 71812-0R030-B1 Shield, Front Seat Cushion, Lh
71812 71812-0R030-E0 Shield, Front Seat Cushion, Lh
71812 71812-0R040-B0 Shield, Front Seat Cushion, Lh
71812 71812-0R040-B1 Shield, Front Seat Cushion, Lh
71812 71812-0R040-E0 Shield, Front Seat Cushion, Lh
71812 71812-0R050-B0 Shield, Front Seat Cushion, Lh
71812 71812-0R050-E0 Shield, Front Seat Cushion, Lh
71849 71848-33010 Cap, Rear Seat
71862 71862-06130-B0 Shield, Front Seat Cushion, Inner Lh
71862 71862-06130-B1 Shield, Front Seat Cushion, Inner Lh
71862 71862-06130-E1 Shield, Front Seat Cushion, Inner Lh
71862 71862-0R030-B1 Shield, Front Seat Cushion, Inner Lh
71862 71862-0R030-E0 Shield, Front Seat Cushion, Inner Lh
71868 71868-0R020-B0 Shield, Front Seat Cushion, Inner No.1 Lh
71868 71868-0R020-B1 Shield, Front Seat Cushion, Inner No.1 Lh
71868 71868-0R020-E0 Shield, Front Seat Cushion, Inner No.1 Lh
71873 71873-06280 Shield, Front Seat Cushion, Lower Rh
71874 71874-06240 Shield, Front Seat Cushion, Lower Lh
71875 71875-06340 Cover, Reclining Adjuster Inside, Rh - RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875 71875-06240-B0 Cover, Reclining Adjuster Inside, Rh (For Lh Seat)
71875 71875-06240-B1 Cover, Reclining Adjuster Inside, Rh (For Lh Seat)
71875 71875-06240-E1 Cover, Reclining Adjuster Inside, Rh
71875 71875-0R020-B1 Cover, Reclining Adjuster Inside, Rh
71875 71875-0R020-E0 Cover, Reclining Adjuster Inside, Rh
71876 71876-06230 Cover, Reclining Adjuster Inside, Lh
71876 71876-06370 Cover, Reclining Adjuster Inside, Lh - RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876 71876-06270-B0 Cover, Reclining Adjuster Inside, Lh (For Lh Seat)
71876 71876-06270-B1 Cover, Reclining Adjuster Inside, Lh (For Lh Seat)
71876 71876-06270-E1 Cover, Reclining Adjuster Inside, Lh
71876 71876-0R020-B1 Cover, Reclining Adjuster Inside, Lh
71876 71876-0R020-E0 Cover, Reclining Adjuster Inside, Lh
71910 71910-0R040-B2 Headrest Assy, Front Seat
71910 71910-0R040-E0 Headrest Assy, Front Seat
71910 71910-0R050-B0 Headrest Assy, Front Seat
71910 71910-0R050-B1 Headrest Assy, Front Seat
71910 71910-0R050-E0 Headrest Assy, Front Seat
71931 71930-02360-B0 Support, Front Seat Headrest
71931 71930-02360-C0 Support, Front Seat Headrest
71931 71930-02360-B1 Support, Front Seat Headrest
71931 71930-02360-E2 Support, Front Seat Headrest
71931 71931-02120-B0 Support, Front Seat Headrest
71931 71931-02120-C0 Support, Front Seat Headrest
71931 71931-02120-B1 Support, Front Seat Headrest
71931 71931-02120-E2 Support, Front Seat Headrest
72124 72124-0R020-B0 Cover, Seat Track Bracket, Outer Front Lh
72124 72124-0R020-B1 Cover, Seat Track Bracket, Outer Front Lh
72124 72124-0R020-E0 Cover, Seat Track Bracket, Outer Front Lh
72128 72128-0R030-B0 Cover, Seat Track Bracket, Inner Front Lh
72128 72128-0R030-B1 Cover, Seat Track Bracket, Inner Front Lh
72128 72128-0R030-E0 Cover, Seat Track Bracket, Inner Front Lh
72760 72760-06050 Adjuster Assy, Lumbar Support, Lh
72760 72760-06051 Adjuster Assy, Lumbar Support, Lh
85822 85801-06020 Motor Assy, Power Seat Slide, Lh
85822 85801-06080 Motor Assy, Power Seat Lifter, Lh
85822 85801-06060 Motor Assy, Power Seat
87510 87510-0R040 Heater Assy, Front Seat Cushion, Rh
87510 87510-0R030 Heater Assy, Front Seat Back, Rh
90119 90119-C0038 New Genuine Part
91622 91622-B1018 BOLT WWASHER
9008416012 90084-16012 SCREW
9016740044 90167-40044 BOLT
9016740048 90167-40048 SCREW PAN TAPPING
9038910041 90389-10041 BUSH
9356054012 93560-54012 Screw
9356055010 93560-55010 Screw(For Mat Set Plate)
9356855016 93568-55016 Screw
