Search › Model › ACA33

ACA33

Toyota RAV4-VANGUARD · 2005 · 4,434 parts · 202 categories

← Back to categories

4,434 items

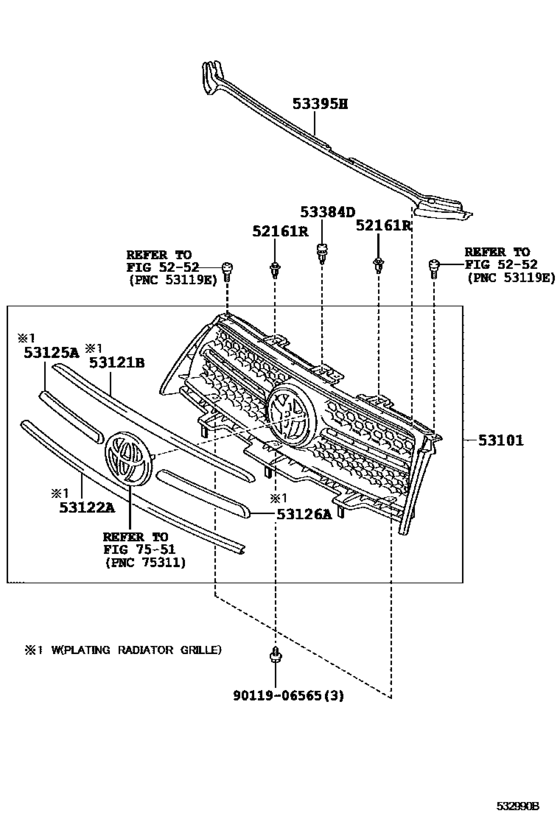

Radiator Grille ([03.2009 - 08.2011] (0903-1108)) 12

#	OEM	Part name
52161	52161-02040	Piece, Rear Bumper
53101	53101-0R080	Grille Sub-Assy, Radiator
53101	53101-0R090	Grille Sub-Assy, Radiator
53101	53101-0R110	Grille Sub-Assy, Radiator
53121	53121-0R030	Moulding, Radiator Grille, Upper
53121	53121-0R040	Moulding, Radiator Grille, Upper
53122	53122-0R030	Moulding, Radiator Grille, Lower
53125	53125-0R030	Moulding, Radiator Grille, Center Rh
53126	53126-0R030	Moulding, Radiator Grille, Center Lh
53384	53384-68010	Cushion, Radiator Grille
53395	53395-0R020	Seal, Hood To Radiator Grille
9011906565	90119-06565	BOLT WWASHER

OEM	Part name	Category
52161-02040	Piece, Rear Bumper	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53101-0R080	Grille Sub-Assy, Radiator	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53101-0R090	Grille Sub-Assy, Radiator	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53101-0R110	Grille Sub-Assy, Radiator	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53121-0R030	Moulding, Radiator Grille, Upper	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53121-0R040	Moulding, Radiator Grille, Upper	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53122-0R030	Moulding, Radiator Grille, Lower	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53125-0R030	Moulding, Radiator Grille, Center Rh	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53126-0R030	Moulding, Radiator Grille, Center Lh	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53384-68010	Cushion, Radiator Grille	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
53395-0R020	Seal, Hood To Radiator Grille	Radiator Grille ([03.2009 - 08.2011] (0903-1108))
90119-06565	BOLT WWASHER	Radiator Grille ([03.2009 - 08.2011] (0903-1108))

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 202
Collected: 2026-08-02
