ACA33

Toyota RAV4-VANGUARD · 2005 · 4,434 parts · 202 categories

← Back to categories

4,434 items

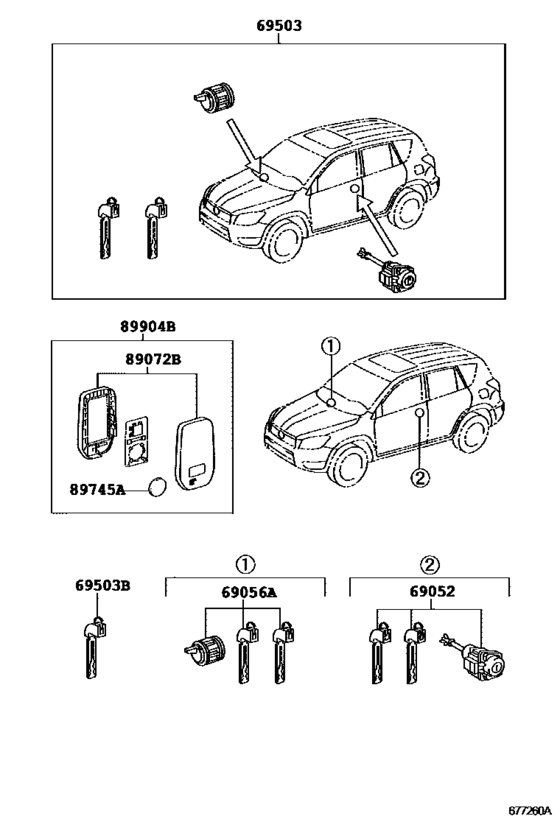

Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33) 18

#	OEM	Part name
69052	69052-0D120	Cylinder & Key Set, Door Lock, Lh
69052	69052-0R030	Cylinder & Key Set, Door Lock, Lh
69052	69052-0R080	Cylinder & Key Set, Door Lock, Lh
69056	69056-0E070	Cylinder & Key Set, Glove Compartment Lock
69056	69056-0R020	Cylinder & Key Set, Glove Compartment Lock
69056	69056-0R030	Cylinder & Key Set, Glove Compartment Lock
69503	69005-0R011	Cylinder Set, Lock
69503	69005-0R030	Cylinder Set, Lock
69503	69005-0R120	Cylinder Set, Lock
69503	69515-12310	Key, Cut
69503	69515-52110	Key, Cut - for blank key →
89072	89072-0R140	Housing Set, Door Control Transmitter
89745	89745-48030	Battery, Transmitter
89904	89904-0R040	Transmitter Sub-Assy, Electrical Key
89904	89904-0R041	Transmitter Sub-Assy, Electrical Key
89904	89904-0R070	Transmitter Sub-Assy, Electrical Key
89904	89904-0R071	Transmitter Sub-Assy, Electrical Key
89904	89904-0R100	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-0R011	Cylinder Set, Lock	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69005-0R030	Cylinder Set, Lock	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69005-0R120	Cylinder Set, Lock	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69052-0D120	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69052-0R030	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69052-0R080	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69056-0E070	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69056-0R020	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69056-0R030	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69515-12310	Key, Cut	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89072-0R140	Housing Set, Door Control Transmitter	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89745-48030	Battery, Transmitter	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89904-0R040	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89904-0R041	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89904-0R070	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89904-0R071	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
89904-0R100	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([03.2012 - ] W(SMART ENTRY) (1203- )ACA33)
