ACA33

Toyota RAV4-VANGUARD · 2005 · 4,434 parts · 202 categories

4,434 items

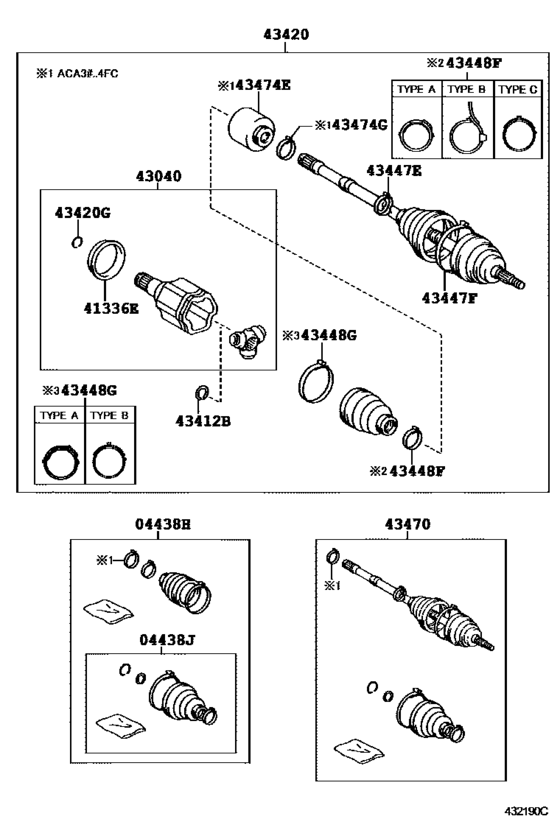

Front Drive Shaft ([03.2009 - ] LH (0903- )) 29

#	OEM	Part name
4438	04428-0R040	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04428-0R042	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-0R030	Boot Kit, Front Drive Shaft Inboard Joint, Lh
4438	04428-0R030	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04428-0R031	Boot Kit, Front Drive Shaft, In & Outboard, Lh
41336	41336-28030	Cover, Front Drive Shaft Dust, Lh
41336	41336-28020	Cover, Front Drive Shaft Dust, Lh
43040	43040-06300	Joint Assy, Front Drive Inboard, Lh
43040	43040-0R020	Joint Assy, Front Drive Inboard, Lh
43040	43040-06190	Joint Assy, Front Drive Inboard, Lh
43040	43040-0R010	Joint Assy, Front Drive Inboard, Lh
43412	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-0R070	Shaft Assy, Front Drive, Lh
43420	90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43420	43420-0R050	Shaft Assy, Front Drive, Lh
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43447	42345-42120	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42110	Clamp, No.2 (For Front Axle Outboard Joint Boot)
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-06400	Clamp, No.2 (For Front Axle Inboard Joint Boot Lh)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	42345-06410	Clamp (For Front Axle Inboard Joint Boot Lh) - NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43470	43470-09X90	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-09X70	Shaft Assy, Front Drive Outboard Joint, Lh
43474	43474-0R010	Damper, Front Drive Shaft, Lh
43474	43474-0R140	Damper, Front Drive Shaft, Lh
43474	42345-06420	Clamp (For Drive Shaft Damper Setting)

OEM	Part name	Category
04428-0R030	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
04428-0R031	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
04428-0R040	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
04428-0R042	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
04438-0R030	Boot Kit, Front Drive Shaft Inboard Joint, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
41336-28020	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
41336-28030	Cover, Front Drive Shaft Dust, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-06400	Clamp, No.2 (For Front Axle Inboard Joint Boot Lh)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-06410	Clamp (For Front Axle Inboard Joint Boot Lh) - NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-06420	Clamp (For Drive Shaft Damper Setting)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-42110	Clamp, No.2 (For Front Axle Outboard Joint Boot)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
42345-42120	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43040-06190	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43040-06300	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43040-0R010	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43040-0R020	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43420-0R050	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43420-0R070	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43470-09X70	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43470-09X90	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43474-0R010	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
43474-0R140	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([03.2009 - ] LH (0903- ))
90521-33002	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([03.2009 - ] LH (0903- ))
