ACA33

Toyota RAV4-VANGUARD · 2005 · 4,434 parts · 202 categories

4,434 items

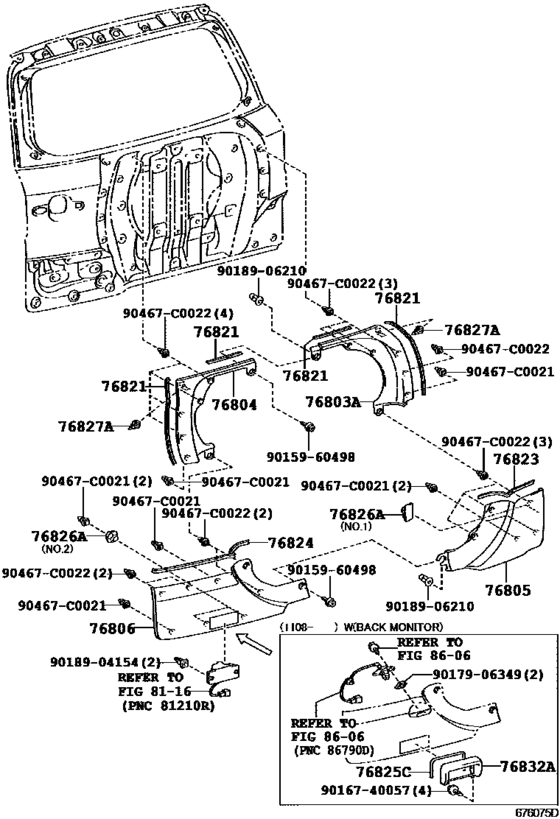

Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- )) 21

#	OEM	Part name
76803	76813-0R901	Garnish Sub-Assy, Back Door, Outside Upper Rh
76804	76814-0R901	Garnish Sub-Assy, Back Door, Outside Upper Lh
76805	76815-0R901	Garnish Sub-Assy, Back Door, Outside Lower Rh
76806	76816-0R901	Garnish Sub-Assy, Back Door, Outside Lower Lh
76806	76816-0R902	Garnish Sub-Assy, Back Door, Outside Lower Lh
76821	76821-0R030	Protector, Back Door Garnish Moulding, Upper
76821	76821-0R040	Protector, Back Door Garnish Moulding, Upper
76823	76823-0R030	Protector, Back Door Garnish Moulding, Rh
76824	76824-0R010	Protector, Back Door Garnish Moulding, Lh
76825	76825-0R020	Protector, Back Door Outside Garnish
76826	76826-0R020	Retainer, Back Door Garnish, No.1
76826	76829-0R030	Retainer, Back Door Garnish, No.1
76827	76827-42020	Retainer, Back Door Garnish, No.2
76832	76832-0R901	Cover, Back Door Finish Panel, Lh
90467	90467-C0021	New Genuine Part
90467	90467-C0022	New Genuine Part
9015960498	90159-60498	SCREW W-WASHER
9016740057	90167-40057	SCREW, PAN TAPPING
9017906349	90179-06349	NUT
9018904154	90189-04154	GROMMET SCREW
9018906210	90189-06210	GROMMET SCREW

OEM	Part name	Category
76813-0R901	Garnish Sub-Assy, Back Door, Outside Upper Rh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76814-0R901	Garnish Sub-Assy, Back Door, Outside Upper Lh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76815-0R901	Garnish Sub-Assy, Back Door, Outside Lower Rh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76816-0R901	Garnish Sub-Assy, Back Door, Outside Lower Lh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76816-0R902	Garnish Sub-Assy, Back Door, Outside Lower Lh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76821-0R030	Protector, Back Door Garnish Moulding, Upper	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76821-0R040	Protector, Back Door Garnish Moulding, Upper	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76823-0R030	Protector, Back Door Garnish Moulding, Rh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76824-0R010	Protector, Back Door Garnish Moulding, Lh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76825-0R020	Protector, Back Door Outside Garnish	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76826-0R020	Retainer, Back Door Garnish, No.1	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76827-42020	Retainer, Back Door Garnish, No.2	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76829-0R030	Retainer, Back Door Garnish, No.1	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
76832-0R901	Cover, Back Door Finish Panel, Lh	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90159-60498	SCREW W-WASHER	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90167-40057	SCREW, PAN TAPPING	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90179-06349	NUT	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90189-04154	GROMMET SCREW	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90189-06210	GROMMET SCREW	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90467-C0021	New Genuine Part	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
90467-C0022	New Genuine Part	Back Door Panel & Glass ([03.2009 - ] BACK DOOR OUTSIDE GARNISH (0903- ))
