Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

← Back to categories

3,836 items

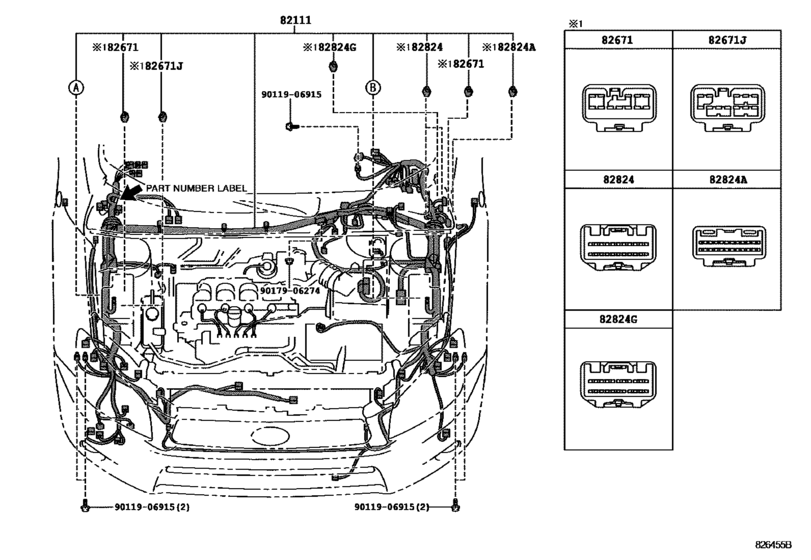

Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- )) 10

#	OEM	Part name
82111	82111-0R110	Wire, Engine Room Main
82111	82111-0R130	Wire, Engine Room Main
82111	82111-0R250	Wire, Engine Room Main
82671	82671-30360	Block, Junction
82671	82671-30370	Block, Junction
82824	82824-47210	Connector, Wiring Harness
82824	82824-50340	Connector, Wiring Harness
82824	82824-30220	Connector, Wiring Harness
9011906915	90119-06915	BOLT W-WASHER
9017906274	90179-06274	Nut

OEM	Part name	Category
82111-0R110	Wire, Engine Room Main	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82111-0R130	Wire, Engine Room Main	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82111-0R250	Wire, Engine Room Main	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82671-30360	Block, Junction	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82671-30370	Block, Junction	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82824-30220	Connector, Wiring Harness	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82824-47210	Connector, Wiring Harness	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
82824-50340	Connector, Wiring Harness	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))
90179-06274	Nut	Wiring & Clamp ([03.2009 - ] ENGINE ROOM(1/2) (0903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 189
Collected: 2026-08-02
