ACA32

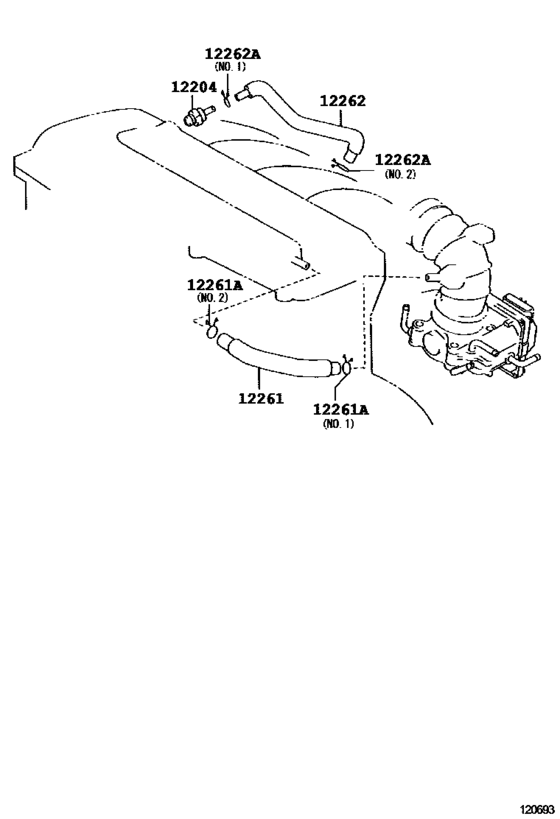

Ventilation Hose ([03.2009 - ] (0903- )) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-0H010 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-0H140 | Hose, Ventilation |
| 12261 | 90467-19003 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-0H050 | Hose, Ventilation, No.2 |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-0H010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([03.2009 - ] (0903- )) |
| 12261-0H140 | Hose, Ventilation | Ventilation Hose ([03.2009 - ] (0903- )) |
| 12262-0H050 | Hose, Ventilation, No.2 | Ventilation Hose ([03.2009 - ] (0903- )) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([03.2009 - ] (0903- )) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([03.2009 - ] (0903- )) |
| 90467-19003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([03.2009 - ] (0903- )) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([03.2009 - ] (0903- )) |
