ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

← Back to categories

3,836 items

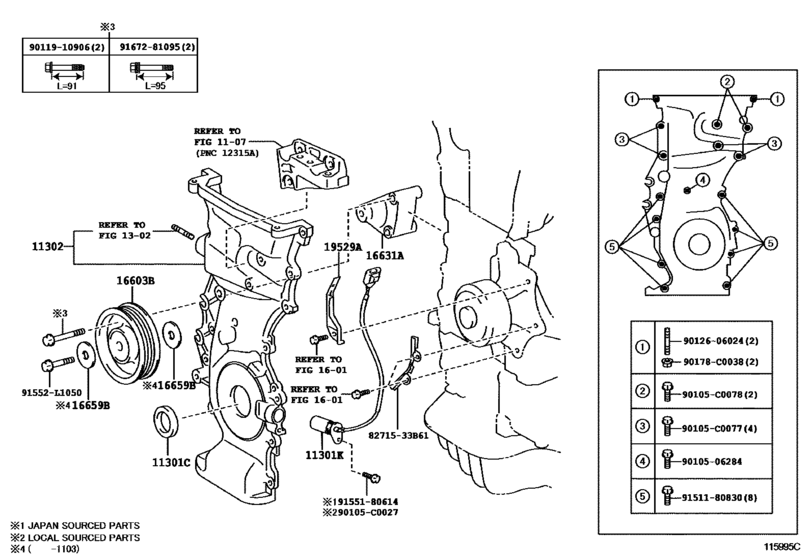

Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- )) 19

#	OEM	Part name
11301	90311-C0025	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-T0024	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05067	Sensor, Crank Position
11302	11310-0H070	Cover Sub-Assy, Timing Chain Or Belt
16603	16603-28050	Pulley Sub-Assy, Idler
16631	16631-28031	Bracket, Idler Pulley
19529	19529-28050	Clamp
90105	90105-C0027	New Genuine Part
90105	90105-C0077	New Genuine Part
90105	90105-C0078	New Genuine Part
90178	90178-C0038	New Genuine Part
91552	91552-L1050	BOLT FLANGE
8271533	82715-33B61	Bracket,wiring Harness Clamp
9010506284	90105-06284	New Genuine Part
9011910906	90119-10906	New Genuine Part
9012606024	90126-06024	STUD HEX LOBULAR
9151180830	91511-80830	Bolt(For Alternator)
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9167281095	91672-81095	BOLT FLANGE

OEM	Part name	Category
11310-0H070	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
16603-28050	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
16631-28031	Bracket, Idler Pulley	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
19529-28050	Clamp	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
82715-33B61	Bracket,wiring Harness Clamp	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90105-06284	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90105-C0027	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90105-C0077	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90105-C0078	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90119-10906	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90126-06024	STUD HEX LOBULAR	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90178-C0038	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90311-C0025	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90311-T0024	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
90919-05067	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
91511-80830	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
91552-L1050	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
91672-81095	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([03.2009 - ] (0903- ))
