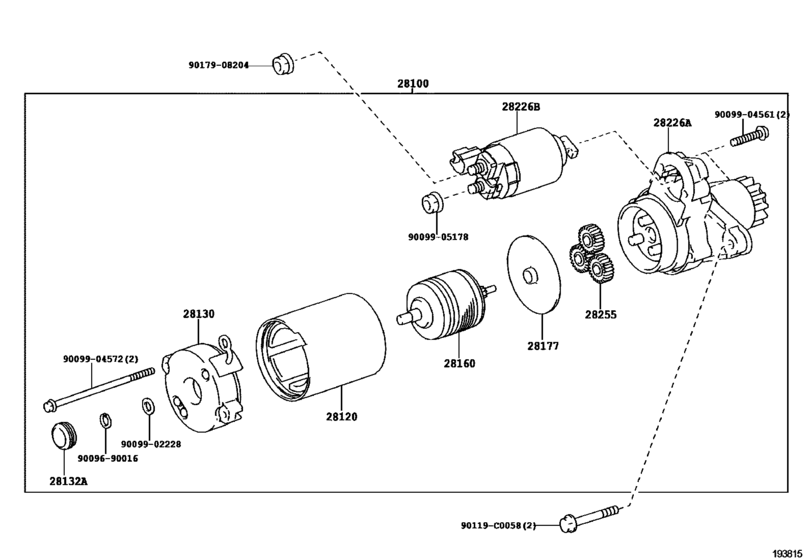

| 28100-0H080 |
Starter Assy |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28120-0H120 |
Yoke Assy, Starter |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28130-0H120 |
Frame Assy, Starter Commutator End |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28132-28040 |
Cover, Starter Bearing(For Drive Housing) |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28160-28040 |
Armature Assy, Starter |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28177-28040 |
Plate(For Starter Armature) |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28226-28041 |
Starter Kit, Battery Terminal |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28226-28051 |
Starter Kit, Repair Service |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 28255-20020 |
Gear, Planet |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90080-18070 |
NUT, WWASHER |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90096-90016 |
Ring, Snap(For Venturi Throttle Valve Shaft) |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90099-02228 |
WASHER |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90099-04561 |
BOLT |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90099-04572 |
BOLT |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90099-05178 |
New Genuine Part |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90119-C0058 |
New Genuine Part |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
| 90179-08204 |
Nut |
Starter ([08.2011 - ] 12V 1.7KW (1108- )) |
