ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories
ACA32 ×

← Back to categories

3,836 items

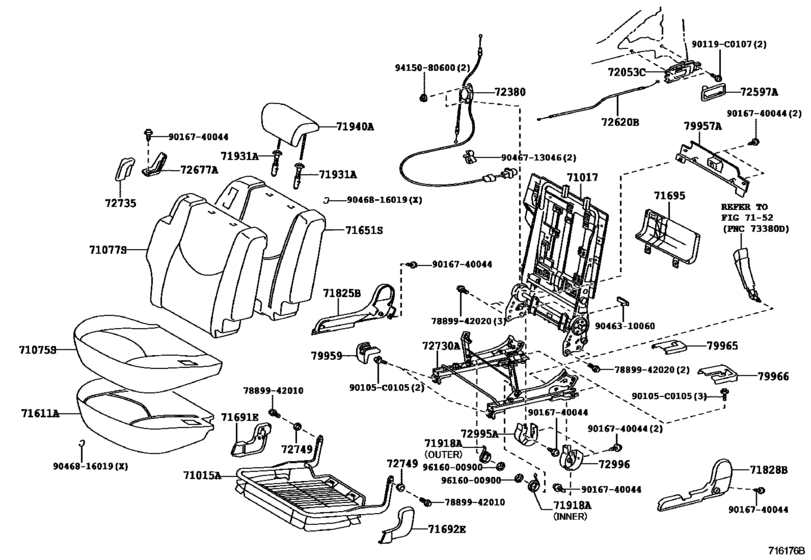

Seat & Seat Track ([03.2009 - ] REAR SEAT (RH) (0903- )) 68
#OEMPart name
71015 71650-0R030 Frame Sub-Assy, Rear Seat Cushion, Rh
71017 71017-0R030 Frame Sub-Assy, Rear Seat Back, Rh
71075 71075-0R041-B2 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-0R041-E0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-0R050-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-0R050-E0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-0R051-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-0R051-E0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71077 71077-0R061-B3 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-0R061-E0 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-0R070-B2 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-0R070-E0 Cover, Rear Seat Back, Rh (For Separate Type)
71611 71611-0R020 Pad, Rear Seat Cushion, Rh
71651 71651-0R030 Pad, Rear Seat Back, Rh(For Separate Type)
71691 71691-0R020-B1 Cover, Rear Seat Cushion Hinge, No.1
71691 71691-0R020-E0 Cover, Rear Seat Cushion Hinge, No.1
71692 71692-0R020-B1 Cover, Rear Seat Cushion Hinge, No.2
71692 71692-0R020-E0 Cover, Rear Seat Cushion Hinge, No.2
71695 71695-0R020 Protector, Rear Seat Back
71825 71825-0R020-B1 Moulding, Rear Seat Cushion, Rh
71825 71825-0R020-E0 Moulding, Rear Seat Cushion, Rh
71828 71828-0R020-B1 Moulding, Rear Seat Cushion, Rear Rh
71828 71828-0R020-E0 Moulding, Rear Seat Cushion, Rear Rh
71918 71918-42010 Spring, Center Seat Cushion Catch
71918 71918-42020 Spring, Center Seat Cushion Catch
71931 71930-02360-B0 Support, Front Seat Headrest
71931 71930-02360-C0 Support, Front Seat Headrest
71931 71930-02360-E2 Support, Front Seat Headrest
71931 71931-02120-B0 Support, Front Seat Headrest
71931 71931-02120-C0 Support, Front Seat Headrest
71931 71931-02120-E2 Support, Front Seat Headrest
71940 71940-0R060-B3 Headrest Assy, Rear Seat
71940 71940-0R060-E0 Headrest Assy, Rear Seat
71940 71940-0R070-B2 Headrest Assy, Rear Seat
71940 71940-0R070-E0 Headrest Assy, Rear Seat
72053 72053-0R020 Lever Sub-Assy, Reclining Remote Control, Rh
72380 72380-42020 Cable Assy, Seat Adjuster Control, No.2
72380 72380-42030 Cable Assy, Seat Adjuster Control, No.2
72597 72597-0R020 Bezel, Reclining Remote Control Lever, Rh
72620 72620-0R030 Cable Assy, Rear No.1 Seat Lock
72677 72677-0R030-B1 Base, Rear Seat Back Lock Control Lever, Rh
72677 72677-0R030-E0 Base, Rear Seat Back Lock Control Lever, Rh
72730 72730-0R030 Adjuster Assy, Rear Seat Reclining, Rh
72735 72735-0R030-B1 Lever, Rear Seat Reclining Release
72735 72735-0R030-E0 Lever, Rear Seat Reclining Release
72749 72749-48010 Spacer, Rear Seat Reclining
72995 72995-0R030-B1 Cover, Rear Seat
72995 72995-0R030-E0 Cover, Rear Seat
72996 72996-0R020-B1 Cover, Rear Seat Back, Rh
72996 72996-0R020-E0 Cover, Rear Seat Back, Rh
79957 79957-0R030-B1 Cover, Rear Seat Rear Bracket, Rh
79957 79957-0R030-E0 Cover, Rear Seat Rear Bracket, Rh
79959 79959-0R020-B1 Cover, Rr Seat Leg
79959 79959-0R020-E0 Cover, Rr Seat Leg
79965 79965-0R030-B1 Cover, Rear Seat Leg Side, No.2
79965 79965-0R030-E0 Cover, Rear Seat Leg Side, No.2
79966 79966-0R030-B1 Cover, Rear Seat Leg Side, No.3
79966 79966-0R030-E0 Cover, Rear Seat Leg Side, No.3
90105 90105-C0105 New Genuine Part
90119 90119-C0107 New Genuine Part
7889942010 78899-42010 Bolt, Front Seat
7889942020 78899-42020 Bolt, Front Seat
9016740044 90167-40044 BOLT
9046310060 90463-10060 New Genuine Part
9046713046 90467-13046 New Genuine Part
9046816019 90468-16019 Clip (For Rear Seat Back)
9415080600 94150-80600 NUT FLANGE
9616000900 96160-00900 Ring, E(For Injection Pump Lever)
