ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

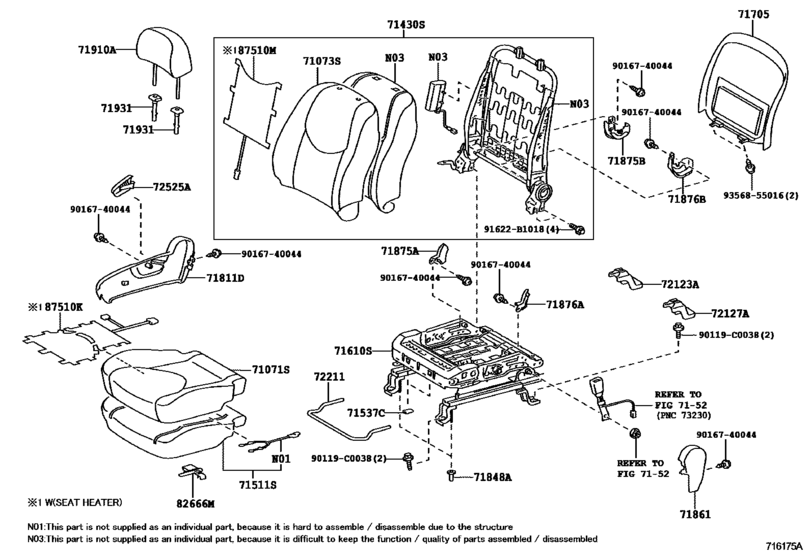

Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- )) 53

#	OEM	Part name
71071	71071-0R051-B3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R051-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R060-B2	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-0R060-E0	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-0R101-B3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R101-E0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R120-B2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-0R120-E0	Cover, Front Seat Back, Rh(For Separate Type)
71430	71430-0R031-B1	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-0R031-E0	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-0R040-B3	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-0R040-E0	Back Assy, Front Seat, Rh(For Separate Type)
71511	71051-0R020	Pad, Front Seat Cushion, Rh(For Separate Type)
71511	71051-0R030	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-02020	Protector, Front Seat Cushion - FRONT SEAT CUSHION EDGE, RH
71610	71610-0R010	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71705	71771-0R020-B3	Board Sub-Assy, Front Seat Back, Rh
71705	71771-0R020-E0	Board Sub-Assy, Front Seat Back, Rh
71811	71811-0R020-B1	Shield, Front Seat Cushion, Rh
71811	71811-0R020-E0	Shield, Front Seat Cushion, Rh
71848	71848-33010	Cap, Rear Seat
71861	71861-0R020-B1	Shield, Front Seat Cushion, Inner Rh
71861	71861-0R020-E0	Shield, Front Seat Cushion, Inner Rh
71875	71875-0R020-B1	Cover, Reclining Adjuster Inside, Rh
71875	71875-0R020-E0	Cover, Reclining Adjuster Inside, Rh
71875	71875-06340	Cover, Reclining Adjuster Inside, Rh - RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71876	71876-0R020-B1	Cover, Reclining Adjuster Inside, Lh
71876	71876-0R020-E0	Cover, Reclining Adjuster Inside, Lh
71876	71876-06370	Cover, Reclining Adjuster Inside, Lh - RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71910	71910-0R040-B2	Headrest Assy, Front Seat
71910	71910-0R040-E0	Headrest Assy, Front Seat
71910	71910-0R050-B1	Headrest Assy, Front Seat
71910	71910-0R050-E0	Headrest Assy, Front Seat
71931	71930-02360-B0	Support, Front Seat Headrest
71931	71930-02360-C0	Support, Front Seat Headrest
71931	71930-02360-E2	Support, Front Seat Headrest
71931	71931-02120-B0	Support, Front Seat Headrest
71931	71931-02120-C0	Support, Front Seat Headrest
71931	71931-02120-E2	Support, Front Seat Headrest
72123	72123-0R020-B1	Cover, Seat Track Bracket, Outer Front Rh
72123	72123-0R020-E0	Cover, Seat Track Bracket, Outer Front Rh
72127	72127-0R020-B1	Cover, Seat Track Bracket, Inner Front Rh
72127	72127-0R020-E0	Cover, Seat Track Bracket, Inner Front Rh
72211	72211-06040	Handle, Seat Track Adjusting
72525	72525-06050-B0	Handle, Reclining Adjuster Release, Rh
72525	72525-06050-E1	Handle, Reclining Adjuster Release, Rh
82666	82666-21060	Holder, Connector
87510	87510-0R040	Heater Assy, Front Seat Cushion, Rh
87510	87510-0R030	Heater Assy, Front Seat Back, Rh
90119	90119-C0038	New Genuine Part
91622	91622-B1018	BOLT WWASHER
9016740044	90167-40044	BOLT
9356855016	93568-55016	Screw

OEM	Part name	Category
71051-0R020	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71051-0R030	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71071-0R051-B3	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71071-0R051-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71071-0R060-B2	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71071-0R060-E0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71073-0R101-B3	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71073-0R101-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71073-0R120-B2	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71073-0R120-E0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71430-0R031-B1	Back Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71430-0R031-E0	Back Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71430-0R040-B3	Back Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71430-0R040-E0	Back Assy, Front Seat, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71537-02020	Protector, Front Seat Cushion - FRONT SEAT CUSHION EDGE, RH	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71610-0R010	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71771-0R020-B3	Board Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71771-0R020-E0	Board Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71811-0R020-B1	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71811-0R020-E0	Shield, Front Seat Cushion, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71848-33010	Cap, Rear Seat	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71861-0R020-B1	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71861-0R020-E0	Shield, Front Seat Cushion, Inner Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71875-06340	Cover, Reclining Adjuster Inside, Rh - RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71875-0R020-B1	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71875-0R020-E0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71876-06370	Cover, Reclining Adjuster Inside, Lh - RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71876-0R020-B1	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71876-0R020-E0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71910-0R040-B2	Headrest Assy, Front Seat	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71910-0R040-E0	Headrest Assy, Front Seat	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71910-0R050-B1	Headrest Assy, Front Seat	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71910-0R050-E0	Headrest Assy, Front Seat	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71930-02360-B0	Support, Front Seat Headrest	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71930-02360-C0	Support, Front Seat Headrest	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71930-02360-E2	Support, Front Seat Headrest	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71931-02120-B0	Support, Front Seat Headrest	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71931-02120-C0	Support, Front Seat Headrest	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
71931-02120-E2	Support, Front Seat Headrest	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72123-0R020-B1	Cover, Seat Track Bracket, Outer Front Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72123-0R020-E0	Cover, Seat Track Bracket, Outer Front Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72127-0R020-B1	Cover, Seat Track Bracket, Inner Front Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72127-0R020-E0	Cover, Seat Track Bracket, Inner Front Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72211-06040	Handle, Seat Track Adjusting	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72525-06050-B0	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
72525-06050-E1	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
82666-21060	Holder, Connector	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
87510-0R030	Heater Assy, Front Seat Back, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
87510-0R040	Heater Assy, Front Seat Cushion, Rh	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
90119-C0038	New Genuine Part	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
90167-40044	BOLT	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
91622-B1018	BOLT WWASHER	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
93568-55016	Screw	Seat & Seat Track ([03.2009 - ] PASSENGER SEAT W(SRS SIDE AIR BAG) (0903- ))
