Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories
ACA32 ×

← Back to categories

3,836 items

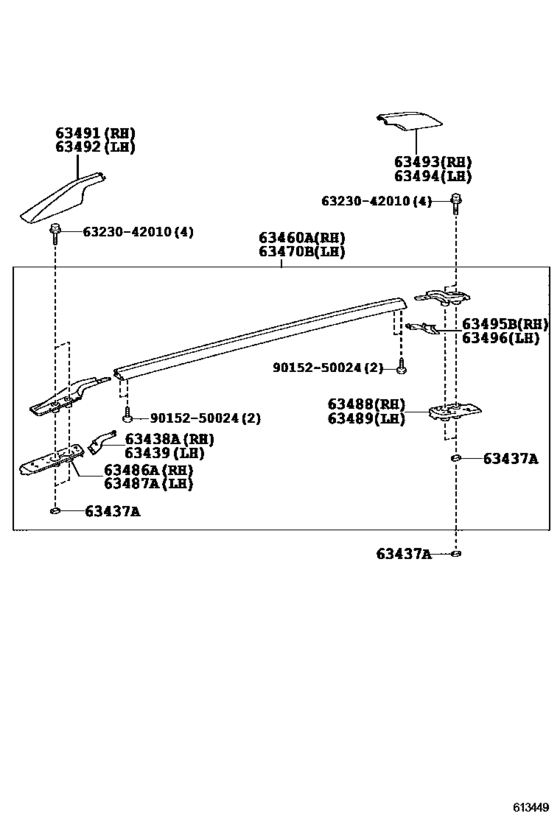

Roof Panel & Back Panel ([03.2009 - ] ROOF RAIL (0903- )) 29
#OEMPart name
63437 63437-0R020 Seal, Roof Carrier, No.1
63438 63438-0R020-B0 Cover, Roof Rack End, No.1
63438 63438-0R020-C0 Cover, Roof Rack End, No.1
63439 63439-0R020-B0 Cover, Roof Rack End, No.2
63439 63439-0R020-C0 Cover, Roof Rack End, No.2
63460 63460-0R020-B0 Rack Assy, Roof, Rh
63460 63460-0R020-C0 Rack Assy, Roof, Rh
63470 63470-0R020-B0 Rack Assy, Roof, Lh
63470 63470-0R020-C0 Rack Assy, Roof, Lh
63486 63486-0R020 Cushion, Roof Rack Leg, Front Rh
63487 63487-0R020 Cushion, Roof Rack Leg, Front Lh
63488 63488-0R020 Cushion, Roof Rack Leg, Rear Rh
63489 63489-0R020 Cushion, Roof Rack Leg, Rear Lh
63491 63491-0R020-B0 Cover, Roof Rack Leg, Front Rh
63491 63491-0R020-C0 Cover, Roof Rack Leg, Front Rh
63492 63492-0R020-B0 Cover, Roof Rack Leg, Front Lh
63492 63492-0R020-C0 Cover, Roof Rack Leg, Front Lh
63493 63493-0R020 Cover, Roof Rack Leg, Rear Rh
63493 63493-0R020-C0 Cover, Roof Rack Leg, Rear Rh
63493 63493-0R020-B0 Cover, Roof Rack Leg, Rear Rh
63494 63494-0R020 Cover, Roof Rack Leg, Rear Lh
63494 63494-0R020-C0 Cover, Roof Rack Leg, Rear Lh
63494 63494-0R020-B0 Cover, Roof Rack Leg, Rear Lh
63495 63495-0R020-B0 Cover, Roof Rack Leg, Center Rh
63495 63495-0R020-C0 Cover, Roof Rack Leg, Center Rh
63496 63496-0R020-B0 Cover, Roof Rack Leg, Center Lh
63496 63496-0R020-C0 Cover, Roof Rack Leg, Center Lh
6323042010 63230-42010 Bolt Assy, Removable Roof
9015250024 90152-50024 New Genuine Part
