Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

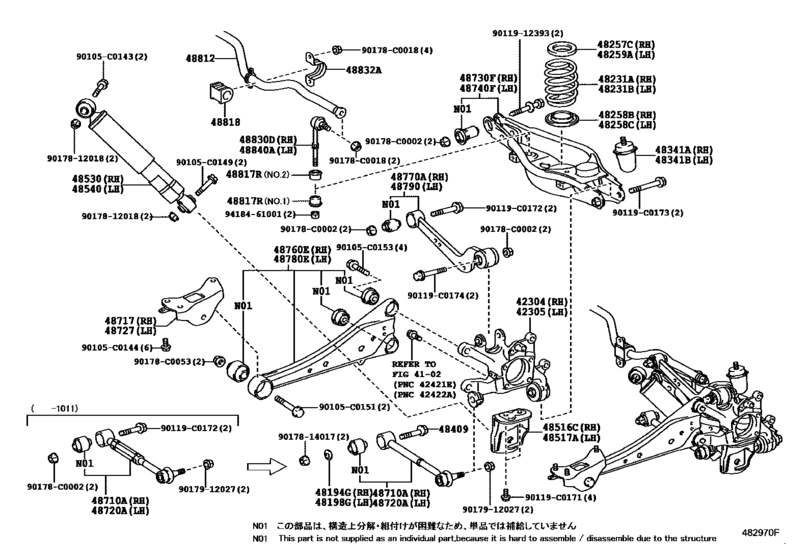

Rear Spring & Shock Absorber ([03.2009 - ] (0903- )) 44

#	OEM	Part name
42304	42304-0R010	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-0R010	Carrier Sub-Assy, Rear Axle, Lh
48194	48198-42010	Cam, Rear Suspension Camber Adjust, No.1 Rh
48231	48231-0R060	Spring, Coil, Rear Rh
48257	48257-0R020	Insulator, Rear Coil Spring, Upper Rh
48258	48258-0R020	Insulator, Rear Coil Spring, Lower Rh
48341	48341-0R020	Bumper, Rear Spring, No.1 Rh
48409	48409-42030	Cam Sub-Assy, Rear Suspension Toe Adjust
48516	48505-42010	Bracket, Rear Shock Absorber, No.1 Rh
48517	48506-42010	Bracket, Rear Shock Absorber, No.1 Lh
48530	48531-0R030	Absorber Assy, Shock, Rear Rh
48530	48531-0R031	Absorber Assy, Shock, Rear Rh
48710	48710-0R040	Arm Assy, Rear Suspension, No.1 Rh
48717	48717-42010	Bracket, Rear Suspension Arm, Rh
48727	48727-42010	Bracket, Rear Suspension Arm, Lh
48730	48730-42050	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-42020	Arm Assy, Rear Suspension, No.2 Lh
48760	48760-0R020	Arm Assy, Trailing, Rear Rh
48770	48770-0R010	Arm Assy, Upper Control, Rear Rh
48780	48780-0R020	Arm Assy, Trailing, Rear Lh
48790	48790-0R010	Arm Assy, Upper Control, Rear Lh
48812	48812-0R020	Bar, Stabilizer, Rear
48817	48817-0R020	Cushion, Stabilizer(For Rear)
48817	48817-0R030	Cushion, Stabilizer(For Rear)
48818	48818-0R020	Bush, Stabilizer, Rear
48830	48830-0R020	Link Assy, Rear Stabilizer, Rh
48832	48832-42010	Bracket, Rear Stabilizer Bar, No.1
90105	90105-C0143	New Genuine Part
90105	90105-C0144	New Genuine Part
90105	90105-C0149	New Genuine Part
90105	90105-C0151	New Genuine Part
90105	90105-C0153	New Genuine Part
90119	90119-C0171	New Genuine Part
90119	90119-C0172	New Genuine Part
90119	90119-C0173	New Genuine Part
90119	90119-C0174	New Genuine Part
90178	90178-C0002	New Genuine Part
90178	90178-C0018	Nut(For Front Stabilizer Link)
90178	90178-C0053	New Genuine Part
9011912393	90119-12393	BOLT WWASHER
9017812018	90178-12018	NUT FLANGE
9017814017	90178-14017	NUT FLANGE
9017912027	90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)
9418461001	94184-61001	Nut(For Front Stabilizer Bar)

OEM	Part name	Category
42304-0R010	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
42305-0R010	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48198-42010	Cam, Rear Suspension Camber Adjust, No.1 Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48231-0R060	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48257-0R020	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48258-0R020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48341-0R020	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48409-42030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48505-42010	Bracket, Rear Shock Absorber, No.1 Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48506-42010	Bracket, Rear Shock Absorber, No.1 Lh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48531-0R030	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48531-0R031	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48710-0R040	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48717-42010	Bracket, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48727-42010	Bracket, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48730-42050	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48740-42020	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48760-0R020	Arm Assy, Trailing, Rear Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48770-0R010	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48780-0R020	Arm Assy, Trailing, Rear Lh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48790-0R010	Arm Assy, Upper Control, Rear Lh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48812-0R020	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48817-0R020	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48817-0R030	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48818-0R020	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48830-0R020	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
48832-42010	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90105-C0143	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90105-C0144	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90105-C0149	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90105-C0151	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90105-C0153	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90119-12393	BOLT WWASHER	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90119-C0171	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90119-C0172	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90119-C0173	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90119-C0174	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-12018	NUT FLANGE	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-14017	NUT FLANGE	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-C0002	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-C0018	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-C0053	New Genuine Part	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
94184-61001	Nut(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([03.2009 - ] (0903- ))
