Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

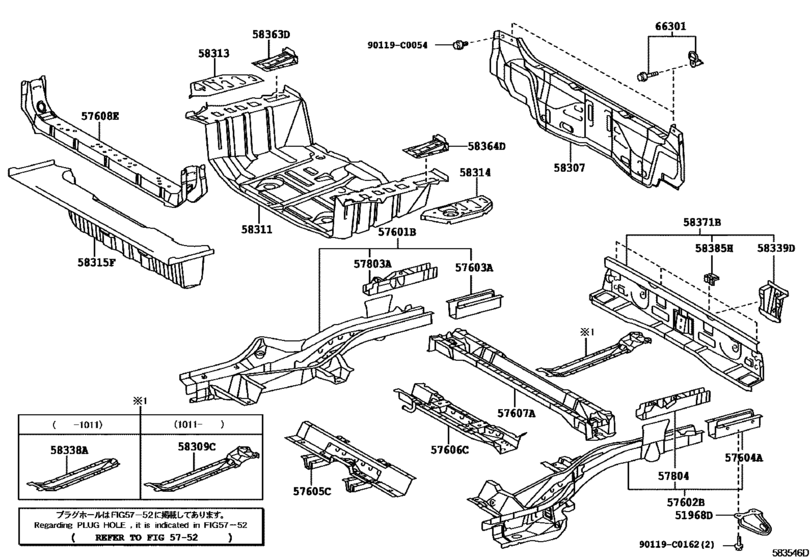

Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- )) 28

#	OEM	Part name
51968	51968-0R020	Hook, Transport, Rear Lh
57601	57601-0R903	Member Sub-Assy, Rear Floor Side, Front Rh
57601	57601-0R904	Member Sub-Assy, Rear Floor Side, Front Rh
57602	57602-0R902	Member Sub-Assy, Rear Floor Side, Front Lh
57602	57602-0R903	Member Sub-Assy, Rear Floor Side, Front Lh
57603	57603-0R021	Member Sub-Assy, Rear Floor Side, Rear Rh
57604	57604-0R020	Member Sub-Assy, Rear Floor Side, Rear Lh
57605	57605-0R020	Member Sub-Assy, Rear Floor Cross
57606	57606-0R020	Member Sub-Assy, Rear Floor Cross, No.2
57607	57607-0R020	Member Sub-Assy, Rear Floor Cross, No.3
57608	57608-0R030	Reinforce Sub-Assy, Side Member To Floor, Rh
57803	57803-0R020	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh
57804	57804-0R020	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh
58307	58307-0R020	Panel Sub-Assy, Body Lower Back
58307	58307-0R021	Panel Sub-Assy, Body Lower Back
58309	58309-0R030	Guard Sub-Assy, Rear Valance Panel
58311	58311-0R020	Pan, Rear Floor
58313	58313-0R020	Panel, Rear Floor Side, Rh
58314	58314-0R020	Panel, Rear Floor Side, Lh
58315	58315-0R020	Extension, Rear Floor Side Panel, Front
58339	58339-0R021	Bracket, Jack Up
58363	58363-0R020	Reinforcement, Rear Floor Panel, No.2 Rh
58364	58364-0R020	Reinforcement, Rear Floor Panel, No.2 Lh
58371	58302-0R021	Panel, Body Lower Back, Outer
58385	58385-0R020	Bracket, Rear Bumper Cover, No.1
66301	66301-42010	Hook Sub-Assy, Rope
90119	90119-C0054	New Genuine Part
90119	90119-C0162	New Genuine Part

OEM	Part name	Category
51968-0R020	Hook, Transport, Rear Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57601-0R903	Member Sub-Assy, Rear Floor Side, Front Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57601-0R904	Member Sub-Assy, Rear Floor Side, Front Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57602-0R902	Member Sub-Assy, Rear Floor Side, Front Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57602-0R903	Member Sub-Assy, Rear Floor Side, Front Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57603-0R021	Member Sub-Assy, Rear Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57604-0R020	Member Sub-Assy, Rear Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57605-0R020	Member Sub-Assy, Rear Floor Cross	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57606-0R020	Member Sub-Assy, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57607-0R020	Member Sub-Assy, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57608-0R030	Reinforce Sub-Assy, Side Member To Floor, Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57803-0R020	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
57804-0R020	Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58302-0R021	Panel, Body Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58307-0R020	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58307-0R021	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58309-0R030	Guard Sub-Assy, Rear Valance Panel	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58311-0R020	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58313-0R020	Panel, Rear Floor Side, Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58314-0R020	Panel, Rear Floor Side, Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58315-0R020	Extension, Rear Floor Side Panel, Front	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58339-0R021	Bracket, Jack Up	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58363-0R020	Reinforcement, Rear Floor Panel, No.2 Rh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58364-0R020	Reinforcement, Rear Floor Panel, No.2 Lh	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
58385-0R020	Bracket, Rear Bumper Cover, No.1	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
66301-42010	Hook Sub-Assy, Rope	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
90119-C0054	New Genuine Part	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))
90119-C0162	New Genuine Part	Rear Floor Panel & Rear Floor Member ([03.2009 - ] (0903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 189
Collected: 2026-08-02
