ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

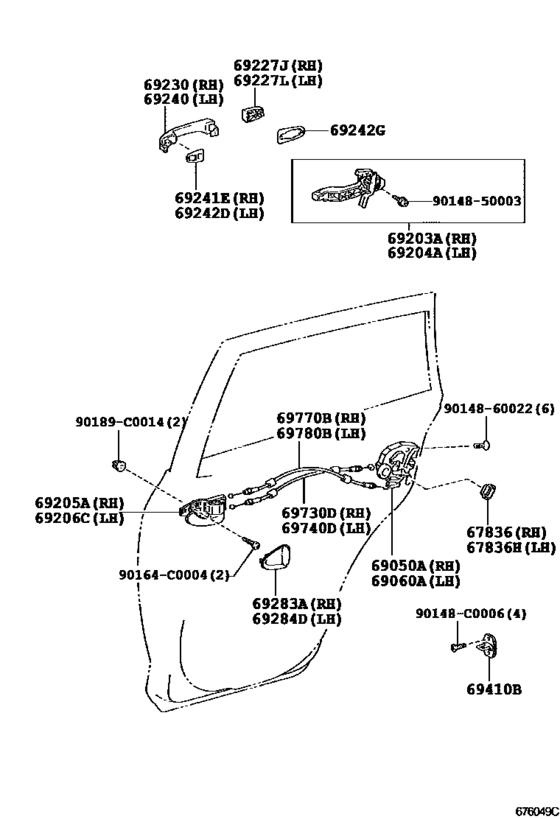

Rear Door Lock & Handle ([03.2009 - ] (0903- )) 34

#	OEM	Part name
67836	67836-02040	Cover, Rear Door Lock Child Protection, Rh
69050	69050-06111	Lock Assy, Rear Door W/motor, Rh
69060	69060-06111	Lock Assy, Rear Door W/motor, Lh
69203	69203-0R020	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-0R020	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-0R020-B0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0R020-B0	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-02160-A1	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-B1	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-B2	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-B4	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-C0	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-D1	Cover, Rear Door Outside Handle, Rh
69227	69227-02160-E3	Cover, Rear Door Outside Handle, Rh
69230	69211-02190-A1	Handle Assy, Front Door, Outside Rh
69230	69211-02190-B1	Handle Assy, Front Door, Outside Rh
69230	69211-02190-B2	Handle Assy, Front Door, Outside Rh
69230	69211-02190-B4	Handle Assy, Front Door, Outside Rh
69230	69211-02190-C0	Handle Assy, Front Door, Outside Rh
69230	69211-02190-D1	Handle Assy, Front Door, Outside Rh
69230	69211-02190-E3	Handle Assy, Front Door, Outside Rh
69241	69241-02070	Pad, Front Door Outside Handle, Rh
69242	69242-02070	Pad, Front Door Outside Handle, Lh
69283	69283-06050-B0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-06050-B0	Plug, Front Door Inside Handle Bezel, Lh
69410	69410-0P010	Plate Assy, Front Door Lock Striker
69730	69730-0R020	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-0R020	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-C0006	New Genuine Part
90164	90164-C0004	New Genuine Part
90189	90189-C0014	New Genuine Part
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw

OEM	Part name	Category
67836-02040	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69050-06111	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69060-06111	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69203-0R020	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69204-0R020	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69205-0R020-B0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69206-0R020-B0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-A1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-B1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-B2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-B4	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-C0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-D1	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-E3	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-A1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-B1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-B2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-B4	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-C0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-D1	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69227-02160-E3	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69241-02070	Pad, Front Door Outside Handle, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69242-02070	Pad, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69283-06050-B0	Plug, Front Door Inside Handle Bezel, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69284-06050-B0	Plug, Front Door Inside Handle Bezel, Lh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69410-0P010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69730-0R020	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
69770-0R020	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
90148-60022	BOLT	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
90148-C0006	New Genuine Part	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
90164-C0004	New Genuine Part	Rear Door Lock & Handle ([03.2009 - ] (0903- ))
90189-C0014	New Genuine Part	Rear Door Lock & Handle ([03.2009 - ] (0903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 189
Collected: 2026-08-02
