ACA32

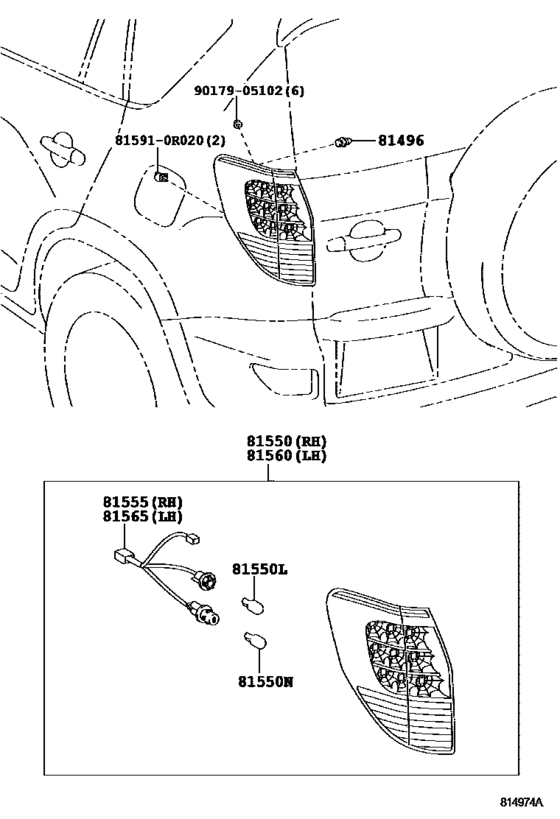

Rear Combination Lamp ([03.2009 - ] (0903- )) 8
| # | OEM | Part name |
|---|---|---|
| 81496 | 81496-0R020 | Guide, Rear Combination Lamp |
| 81550 | 81550-0R020 | Lamp Assy, Rear Combination, Rh |
| 81550 | 90981-15011 | Bulb (For Turn Signal Lamp) 12V 21W, AMBER |
| 81550 | 90981-11059 | Bulb(For Rear Combination Lamp) (12V 16W) |
| 81555 | 81555-0R020 | Socket, Rear Fog Lamp - REAR COMBINATION LAMP, RH |
| 81560 | 81560-0R020 | Lamp Assy, Rear Combination, Lh |
| 815910 | 81591-0R020 | Lens And Body, Reflex Side Reflector, Lh |
| 9017905102 | 90179-05102 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 81496-0R020 | Guide, Rear Combination Lamp | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 81550-0R020 | Lamp Assy, Rear Combination, Rh | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 81555-0R020 | Socket, Rear Fog Lamp - REAR COMBINATION LAMP, RH | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 81560-0R020 | Lamp Assy, Rear Combination, Lh | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 81591-0R020 | Lens And Body, Reflex Side Reflector, Lh | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 90179-05102 | Nut | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 90981-11059 | Bulb(For Rear Combination Lamp) (12V 16W) | Rear Combination Lamp ([03.2009 - ] (0903- )) |
| 90981-15011 | Bulb (For Turn Signal Lamp) 12V 21W, AMBER | Rear Combination Lamp ([03.2009 - ] (0903- )) |
