Search › Model › ACA32
ACA32

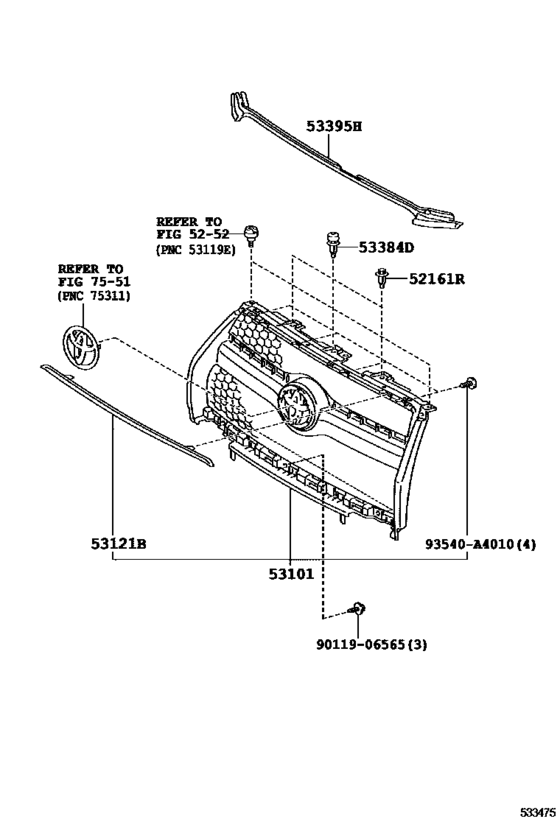

Radiator Grille ([08.2011 - ] TYPE B (1108- )) 8
| # | OEM | Part name |
|---|---|---|
| 52161 | 52161-02040 | Piece, Rear Bumper |
| 53101 | 53101-0R090 | Grille Sub-Assy, Radiator |
| 53101 | 53101-0R110 | Grille Sub-Assy, Radiator |
| 53121 | 53121-0R040 | Moulding, Radiator Grille, Upper |
| 53384 | 53384-68010 | Cushion, Radiator Grille |
| 53395 | 53395-0R020 | Seal, Hood To Radiator Grille |
| 93540 | 93540-A4010 | SCREW TAPPING |
| 9011906565 | 90119-06565 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 52161-02040 | Piece, Rear Bumper | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 53101-0R090 | Grille Sub-Assy, Radiator | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 53101-0R110 | Grille Sub-Assy, Radiator | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 53121-0R040 | Moulding, Radiator Grille, Upper | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 53384-68010 | Cushion, Radiator Grille | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 53395-0R020 | Seal, Hood To Radiator Grille | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 90119-06565 | BOLT WWASHER | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
| 93540-A4010 | SCREW TAPPING | Radiator Grille ([08.2011 - ] TYPE B (1108- )) |
