ACA32

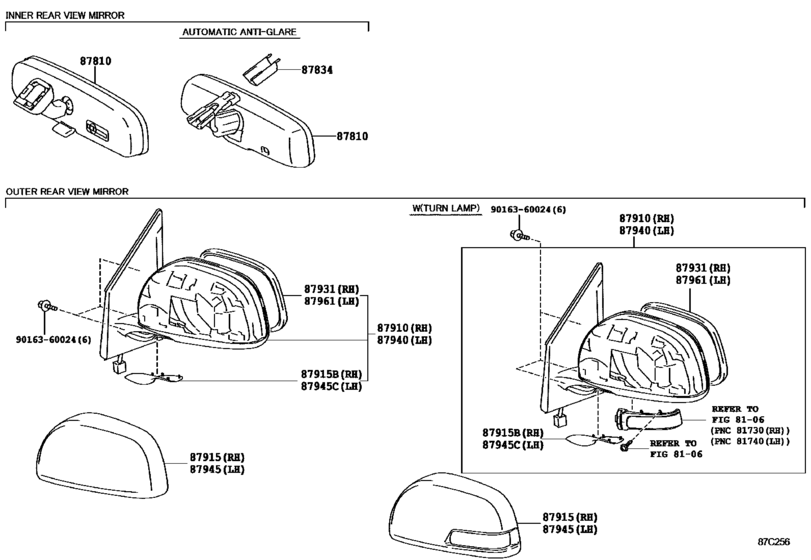

Mirror ([03.2009 - ] (0903- )) 10
| # | OEM | Part name |
|---|---|---|
| 87810 | 87810-06061 | Mirror Assy, Inner Rear View |
| 87910 | 87910-0R050 | Mirror Assy, Outer Rear View, Rh |
| 87915 | 87915-0F906 | Cover, Outer Mirror, Rh |
| 87915 | 87915-0R040 | Cover, Outer Mirror, Lower Rh |
| 87931 | 87931-0R030 | Outer Mirror, Rh |
| 87940 | 87940-0R060 | Mirror Assy, Outer Rear View, Lh |
| 87945 | 87945-0R901 | Cover, Outer Mirror, Lh |
| 87945 | 87945-0R040 | Cover, Outer Mirror, Lower Lh |
| 87961 | 87961-0R050 | Mirror Outer, Lh |
| 9016360024 | 90163-60024 | SCREW HEXAGON |
| OEM | Part name | Category |
|---|---|---|
| 87810-06061 | Mirror Assy, Inner Rear View | Mirror ([03.2009 - ] (0903- )) |
| 87910-0R050 | Mirror Assy, Outer Rear View, Rh | Mirror ([03.2009 - ] (0903- )) |
| 87915-0F906 | Cover, Outer Mirror, Rh | Mirror ([03.2009 - ] (0903- )) |
| 87915-0R040 | Cover, Outer Mirror, Lower Rh | Mirror ([03.2009 - ] (0903- )) |
| 87931-0R030 | Outer Mirror, Rh | Mirror ([03.2009 - ] (0903- )) |
| 87940-0R060 | Mirror Assy, Outer Rear View, Lh | Mirror ([03.2009 - ] (0903- )) |
| 87945-0R040 | Cover, Outer Mirror, Lower Lh | Mirror ([03.2009 - ] (0903- )) |
| 87945-0R901 | Cover, Outer Mirror, Lh | Mirror ([03.2009 - ] (0903- )) |
| 87961-0R050 | Mirror Outer, Lh | Mirror ([03.2009 - ] (0903- )) |
| 90163-60024 | SCREW HEXAGON | Mirror ([03.2009 - ] (0903- )) |
