Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

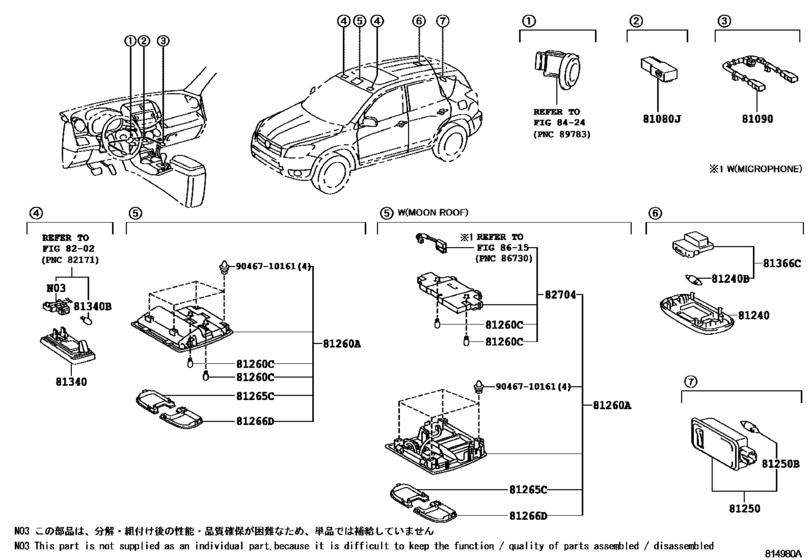

Interior Lamp ([03.2009 - ] (0903- )) 22

#	OEM	Part name
81080	81080-0R020	Lamp Assy, Interior Illumination, No.1
81080	81080-42010	Lamp Assy, Interior Illumination, No.1
81090	81090-0R020	Lamp Assy, Interior Illumination, No.2
81090	81090-42010	Lamp Assy, Interior Illumination, No.2
81240	81240-52040-B0	Lamp Assy, Room, No.1
81240	81240-52040-E2	Lamp Assy, Room, No.1
81240	90981-14011	Bulb, Room Lamp, No.1
81250	81250-48010	Lamp Assy, Room, No.2
81250	99132-13050	Bulb(For Courtesy Lamp)
81250	00234-13050	Bulb,Room Lamp
81260	81260-0R060-B0	Lamp Assy, Map
81260	81260-0R060-E0	Lamp Assy, Map
81260	90981-11062	Bulb, Room Lamp, No.1
81265	81265-42020	Lens, Map Lamp, No.1
81266	81266-42020	Lens, Map Lamp, No.2
81340	81340-0N010-B1	Lamp Assy, Vanity
81340	81340-0N010-E1	Lamp Assy, Vanity
81340	81340-0P010	Lamp Assy, Vanity
81366	81366-68010	Base, Room Lamp Switch
82704	82704-0R041-B0	Block, Overhead Junction
82704	82704-0R041-E0	Block, Overhead Junction
9046710161	90467-10161	Clip

OEM	Part name	Category
00234-13050	Bulb,Room Lamp	Interior Lamp ([03.2009 - ] (0903- ))
81080-0R020	Lamp Assy, Interior Illumination, No.1	Interior Lamp ([03.2009 - ] (0903- ))
81080-42010	Lamp Assy, Interior Illumination, No.1	Interior Lamp ([03.2009 - ] (0903- ))
81090-0R020	Lamp Assy, Interior Illumination, No.2	Interior Lamp ([03.2009 - ] (0903- ))
81090-42010	Lamp Assy, Interior Illumination, No.2	Interior Lamp ([03.2009 - ] (0903- ))
81240-52040-B0	Lamp Assy, Room, No.1	Interior Lamp ([03.2009 - ] (0903- ))
81240-52040-E2	Lamp Assy, Room, No.1	Interior Lamp ([03.2009 - ] (0903- ))
81250-48010	Lamp Assy, Room, No.2	Interior Lamp ([03.2009 - ] (0903- ))
81260-0R060-B0	Lamp Assy, Map	Interior Lamp ([03.2009 - ] (0903- ))
81260-0R060-E0	Lamp Assy, Map	Interior Lamp ([03.2009 - ] (0903- ))
81265-42020	Lens, Map Lamp, No.1	Interior Lamp ([03.2009 - ] (0903- ))
81266-42020	Lens, Map Lamp, No.2	Interior Lamp ([03.2009 - ] (0903- ))
81340-0N010-B1	Lamp Assy, Vanity	Interior Lamp ([03.2009 - ] (0903- ))
81340-0N010-E1	Lamp Assy, Vanity	Interior Lamp ([03.2009 - ] (0903- ))
81340-0P010	Lamp Assy, Vanity	Interior Lamp ([03.2009 - ] (0903- ))
81366-68010	Base, Room Lamp Switch	Interior Lamp ([03.2009 - ] (0903- ))
82704-0R041-B0	Block, Overhead Junction	Interior Lamp ([03.2009 - ] (0903- ))
82704-0R041-E0	Block, Overhead Junction	Interior Lamp ([03.2009 - ] (0903- ))
90467-10161	Clip	Interior Lamp ([03.2009 - ] (0903- ))
90981-11062	Bulb, Room Lamp, No.1	Interior Lamp ([03.2009 - ] (0903- ))
90981-14011	Bulb, Room Lamp, No.1	Interior Lamp ([03.2009 - ] (0903- ))
99132-13050	Bulb(For Courtesy Lamp)	Interior Lamp ([03.2009 - ] (0903- ))
