Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

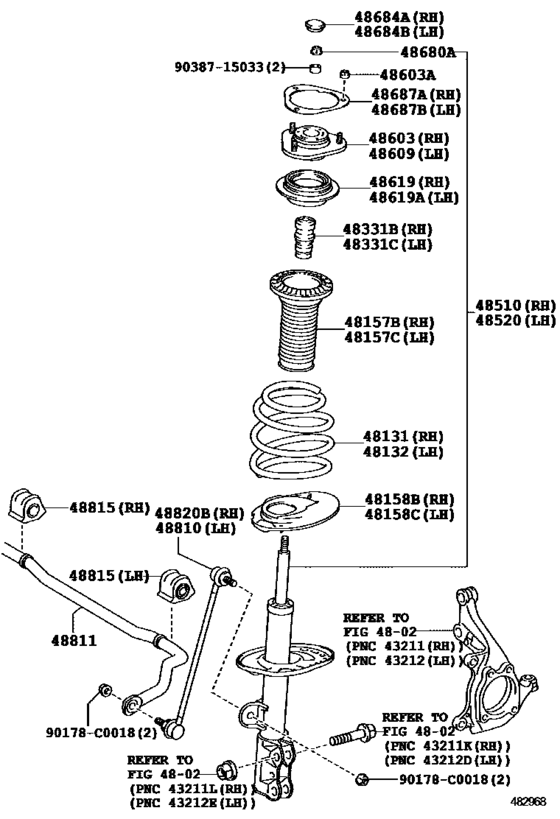

Front Spring & Shock Absorber ([03.2009 - ] (0903- )) 22

#	OEM	Part name
48131	48131-0R080	Spring, Front Coil, Rh
48131	48131-0R060	Spring, Front Coil, Rh
48157	48157-0R020	Insulator, Front Coil Spring, Upper Rh
48158	48158-0R020	Insulator, Front Coil Spring, Lower Rh
48331	48331-0R020	Bumper, Front Spring, Rh
48510	48510-09W90	Absorber Assy, Shock, Front Rh
48510	48510-09W91	Absorber Assy, Shock, Front Rh
48520	48520-09P90	Absorber Assy, Shock, Front Lh
48520	48520-09P91	Absorber Assy, Shock, Front Lh
48603	48609-0R020	Support Sub-Assy, Front Suspension, Rh
48603	90178-C0061	Nut(For Front Suspension Support)
48619	48619-0R020	Bearing, Strut Mounting, Rh
48680	90177-14005	Nut(For Front Support To Front Shock Absorber)
48684	48684-0R020	Cover, Front Suspension Support Dust, Rh
48687	48687-28010	Plate, Front Suspension Support
48810	48820-02080	Link Assy, Front Stabilizer, Lh
48811	48811-0R020	Bar, Stabilizer, Front
48811	48811-0R040	Bar, Stabilizer, Front
48815	48815-0R030	Bush, Front Stabilizer Bar, No.1
48815	48815-0R040	Bush, Front Stabilizer Bar, No.1
90178	90178-C0018	Nut(For Front Stabilizer Link)
9038715033	90387-15033	COLLAR

OEM	Part name	Category
48131-0R060	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48131-0R080	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48157-0R020	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48158-0R020	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48331-0R020	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48510-09W90	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48510-09W91	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48520-09P90	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48520-09P91	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48609-0R020	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48619-0R020	Bearing, Strut Mounting, Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48684-0R020	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48687-28010	Plate, Front Suspension Support	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48811-0R020	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48811-0R040	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48815-0R030	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48815-0R040	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
48820-02080	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
90177-14005	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-C0018	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
90178-C0061	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
90387-15033	COLLAR	Front Spring & Shock Absorber ([03.2009 - ] (0903- ))
