Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

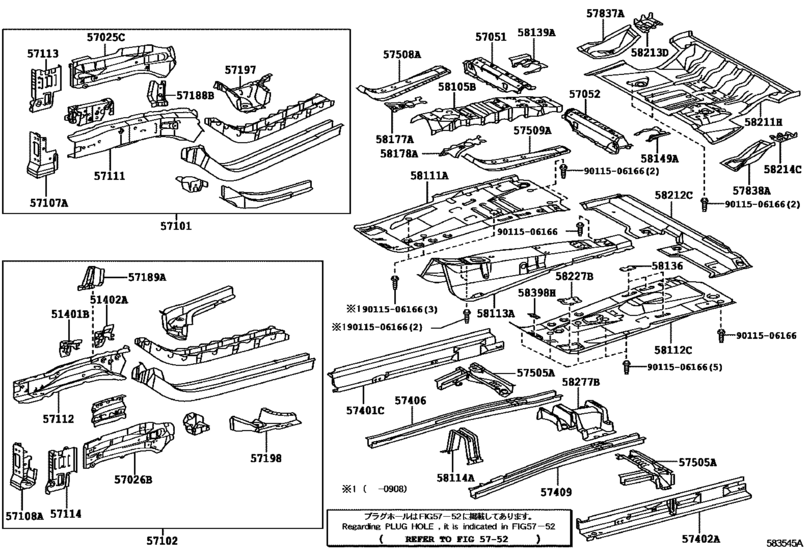

Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- )) 56

#	OEM	Part name
51401	51401-0R020	Bracket Sub-Assy, Engine Front Mounting
51402	51402-0R020	Bracket Sub-Assy, Engine Front Mounting, Lh
57025	57025-02040	Member Sub-Assy, Front Side, Outer Rh
57026	57026-02040	Member Sub-Assy, Front Side, Outer Lh
57051	57051-0R020	Member Sub-Assy, Front Floor Cross, Rh
57051	57051-0R021	Member Sub-Assy, Front Floor Cross, Rh
57051	58111-0R021	Pan, Front Floor, Rh
57052	57052-0R020	Member Sub-Assy, Front Floor Cross, Lh
57052	57052-0R021	Member Sub-Assy, Front Floor Cross, Lh
57052	58112-0R021	Pan, Front Floor, Lh
57052	58149-0R021	Plate, Front Floor Side, Rear Lh
57101	57101-0R020	Member Sub-Assy, Front Side, Rh
57102	57102-0R020	Member Sub-Assy, Front Side, Lh
57107	57107-0R020	Plate Sub-Assy, Front Side Member, No.2 Rh
57108	57108-0R020	Plate Sub-Assy, Front Side Member, No.2 Lh
57111	57111-02130	Member, Front Side, Rh
57112	57112-02120	Member, Front Side, Lh
57113	57113-0R020	Extension, Front Side Member, Rh
57114	57114-0R020	Extension, Front Side Member, Lh
57114	57114-0R021	Extension, Front Side Member, Lh
57188	57188-0R020	Gusset, Front Side Member To Spring Support, Rh
57189	57189-0R020	Gusset, Front Side Member To Spring Support, Lh
57197	57197-0R020	Box, Torque, Front Rh
57198	57198-0R020	Box, Torque, Front Lh
57401	57401-0R020	Member Sub-Assy, Floor Side, Inner Rh
57402	57402-0R020	Member Sub-Assy, Floor Side, Inner Lh
57406	57406-0R020	Member Sub-Assy, Main Floor Side, Rh
57409	57409-0R020	Member Sub-Assy, Main Floor Side, Lh
57505	57505-0R020	Reinforcement Sub-Assy, Front Floor Under
57505	57506-0R020	Reinforcement Sub-Assy, Front Floor Under
57508	57508-0R020	Reinforcement Sub-Assy, Front Floor, Rh
57509	57509-0R020	Reinforcement Sub-Assy, Front Floor, Lh
57837	57837-0R020	Reinforcement, Rear No.1 Seat Leg, Rear No.3
57838	57838-0R020	Reinforcement, Rear No.1 Seat Leg, Rear No.4
58105	58105-0R020	Panel Sub-Assy, Front Floor Rear Upper Sub
58105	58105-0R021	Panel Sub-Assy, Front Floor Rear Upper Sub
58111	58111-0R020	Pan, Front Floor, Rh
58112	58112-0R020	Pan, Front Floor, Lh
58113	58113-0R020	Panel, Front Floor, Center
58114	58114-0R020	Reinforcement, Front Floor Panel
58114	58114-0R021	Reinforcement, Front Floor Panel
58136	58136-0R010	Cover, Front Floor Hole
58139	58139-0R020	Plate, Front Floor Side, Rear Rh
58149	58149-0R020	Plate, Front Floor Side, Rear Lh
58177	58177-0R020	Extension, Front Floor Panel, Rh
58178	58178-0R020	Extention, Front Floor Panel, Lh
58211	58211-0R020	Pan, Center Floor
58211	58211-0R021	Pan, Center Floor
58212	58202-0R020	Pan, Center Floor, Front
58213	58213-0R020	Reinforcement, Center Floor Panel
58214	58214-0R020	Reinforcement, Center Floor Panel, Lh
58227	58227-0R020	Plate, Front Floor Panel Side, Rh
58277	58209-0R020	Reinforcement, Drive Shaft Center Support
58277	58209-0R021	Reinforcement, Drive Shaft Center Support
58398	58398-0R020	Cover, Floor Under, No.1
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)

OEM	Part name	Category
51401-0R020	Bracket Sub-Assy, Engine Front Mounting	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
51402-0R020	Bracket Sub-Assy, Engine Front Mounting, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57025-02040	Member Sub-Assy, Front Side, Outer Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57026-02040	Member Sub-Assy, Front Side, Outer Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57051-0R020	Member Sub-Assy, Front Floor Cross, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57051-0R021	Member Sub-Assy, Front Floor Cross, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57052-0R020	Member Sub-Assy, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57052-0R021	Member Sub-Assy, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57101-0R020	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57102-0R020	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57107-0R020	Plate Sub-Assy, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57108-0R020	Plate Sub-Assy, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57111-02130	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57112-02120	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57113-0R020	Extension, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57114-0R020	Extension, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57114-0R021	Extension, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57188-0R020	Gusset, Front Side Member To Spring Support, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57189-0R020	Gusset, Front Side Member To Spring Support, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57197-0R020	Box, Torque, Front Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57198-0R020	Box, Torque, Front Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57401-0R020	Member Sub-Assy, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57402-0R020	Member Sub-Assy, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57406-0R020	Member Sub-Assy, Main Floor Side, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57409-0R020	Member Sub-Assy, Main Floor Side, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57505-0R020	Reinforcement Sub-Assy, Front Floor Under	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57506-0R020	Reinforcement Sub-Assy, Front Floor Under	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57508-0R020	Reinforcement Sub-Assy, Front Floor, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57509-0R020	Reinforcement Sub-Assy, Front Floor, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57837-0R020	Reinforcement, Rear No.1 Seat Leg, Rear No.3	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
57838-0R020	Reinforcement, Rear No.1 Seat Leg, Rear No.4	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58105-0R020	Panel Sub-Assy, Front Floor Rear Upper Sub	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58105-0R021	Panel Sub-Assy, Front Floor Rear Upper Sub	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58111-0R020	Pan, Front Floor, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58111-0R021	Pan, Front Floor, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58112-0R020	Pan, Front Floor, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58112-0R021	Pan, Front Floor, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58113-0R020	Panel, Front Floor, Center	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58114-0R020	Reinforcement, Front Floor Panel	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58114-0R021	Reinforcement, Front Floor Panel	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58136-0R010	Cover, Front Floor Hole	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58139-0R020	Plate, Front Floor Side, Rear Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58149-0R020	Plate, Front Floor Side, Rear Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58149-0R021	Plate, Front Floor Side, Rear Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58177-0R020	Extension, Front Floor Panel, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58178-0R020	Extention, Front Floor Panel, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58202-0R020	Pan, Center Floor, Front	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58209-0R020	Reinforcement, Drive Shaft Center Support	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58209-0R021	Reinforcement, Drive Shaft Center Support	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58211-0R020	Pan, Center Floor	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58211-0R021	Pan, Center Floor	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58213-0R020	Reinforcement, Center Floor Panel	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58214-0R020	Reinforcement, Center Floor Panel, Lh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58227-0R020	Plate, Front Floor Panel Side, Rh	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
58398-0R020	Cover, Floor Under, No.1	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))
90115-06166	Bolt, Weld(For Front Floor Pan)	Front Floor Panel & Front Floor Member ([03.2009 - ] (0903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 189
Collected: 2026-08-02
