ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

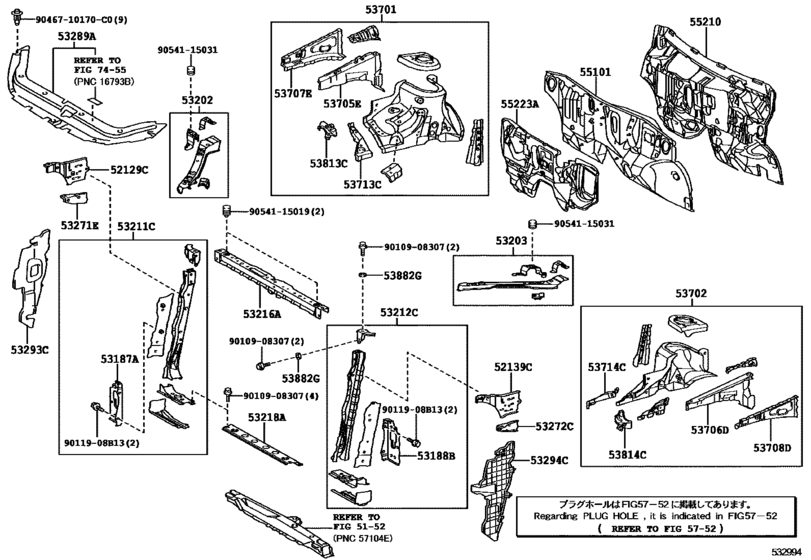

Front Fender Apron & Dash Panel ([03.2009 - ] (0903- )) 41

#	OEM	Part name
52129	52129-0R020	Arm, Front Bumper, Upper No.2 Rh
52139	52139-0R020	Arm, Front Bumper, Upper No.2 Lh
53187	53187-0R020	Stay, Radiator Support, Rh
53188	53188-0R020	Stay, Radiator Support, Lh
53202	53202-0R020	Support Sub-Assy, Radiator, Rh
53203	53203-0R020	Support Sub-Assy, Radiator, Lh
53211	53211-0R902	Support, Radiator, Rh
53212	53212-0R902	Support, Radiator, Lh
53216	53216-0R902	Support, Radiator, Upper
53218	53218-0R020	Support, Radiator, Lower
53271	53271-0R020	Bracket, Headlamp Mounting, Rh
53272	53272-0R020	Bracket, Headlamp Mounting, Lh
53289	53289-0R030	Cover, Radiator Support Opening
53293	53293-0R020	Deflector, Radiator Side, Rh
53294	53294-0R020	Deflector, Radiator Side, Lh
53701	53701-0R020	Apron Sub-Assy, Front Fender, Rh
53702	53702-0R020	Apron Sub-Assy, Front Fender, Lh
53705	53705-0R020	Member Sub-Assy, Front Apron To Cowl Side, Rh
53705	53705-0R021	Member Sub-Assy, Front Apron To Cowl Side, Rh
53706	53706-0R020	Member Sub-Assy, Front Apron To Cowl Side, Lh
53706	53706-0R021	Member Sub-Assy, Front Apron To Cowl Side, Lh
53707	53707-0R020	Apron Sub-Assy, Fender Side, Rh
53708	53708-0R020	Apron Sub-Assy, Fender Side, Lh
53713	53713-0R020	Extension, Front Fender Apron, Front Rh
53714	53714-0R020	Extension, Front Fender Apron, Front Lh
53813	53813-0R020	Extension, Front Fender, Rh
53814	53814-0R020	Extension, Front Fender, Lh
53882	53882-30040	Seal, Radiator Support, Upper
55101	55101-0R020	Panel Sub-Assy, Dash
55101	55101-0R021	Panel Sub-Assy, Dash
55101	55101-0R030	Panel Sub-Assy, Dash
55101	55101-0R031	Panel Sub-Assy, Dash
55210	55210-0R020	Insulator Assy, Dash Panel
55210	55210-0R021	Insulator Assy, Dash Panel
55223	55223-0R020	Insulator, Dash Panel, Outer
55223	55223-0R021	Insulator, Dash Panel, Outer
9011908	90119-08B13	BOLT WWASHER
9010908307	90109-08307	New Genuine Part
9046710170	90467-10170-C0	Clip(For Front Fender Apron Seal)
9054115019	90541-15019	Cushion, Hood Bumper
9054115031	90541-15031	Cushion, Radiator Support

OEM	Part name	Category
52129-0R020	Arm, Front Bumper, Upper No.2 Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
52139-0R020	Arm, Front Bumper, Upper No.2 Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53187-0R020	Stay, Radiator Support, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53188-0R020	Stay, Radiator Support, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53202-0R020	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53203-0R020	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53211-0R902	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53212-0R902	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53216-0R902	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53218-0R020	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53271-0R020	Bracket, Headlamp Mounting, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53272-0R020	Bracket, Headlamp Mounting, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53289-0R030	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53293-0R020	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53294-0R020	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53701-0R020	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53702-0R020	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53705-0R020	Member Sub-Assy, Front Apron To Cowl Side, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53705-0R021	Member Sub-Assy, Front Apron To Cowl Side, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53706-0R020	Member Sub-Assy, Front Apron To Cowl Side, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53706-0R021	Member Sub-Assy, Front Apron To Cowl Side, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53707-0R020	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53708-0R020	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53713-0R020	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53714-0R020	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53813-0R020	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53814-0R020	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
53882-30040	Seal, Radiator Support, Upper	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55101-0R020	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55101-0R021	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55101-0R030	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55101-0R031	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55210-0R020	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55210-0R021	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55223-0R020	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
55223-0R021	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
90109-08307	New Genuine Part	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
90119-08B13	BOLT WWASHER	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
90467-10170-C0	Clip(For Front Fender Apron Seal)	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
90541-15019	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
90541-15031	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([03.2009 - ] (0903- ))
