ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

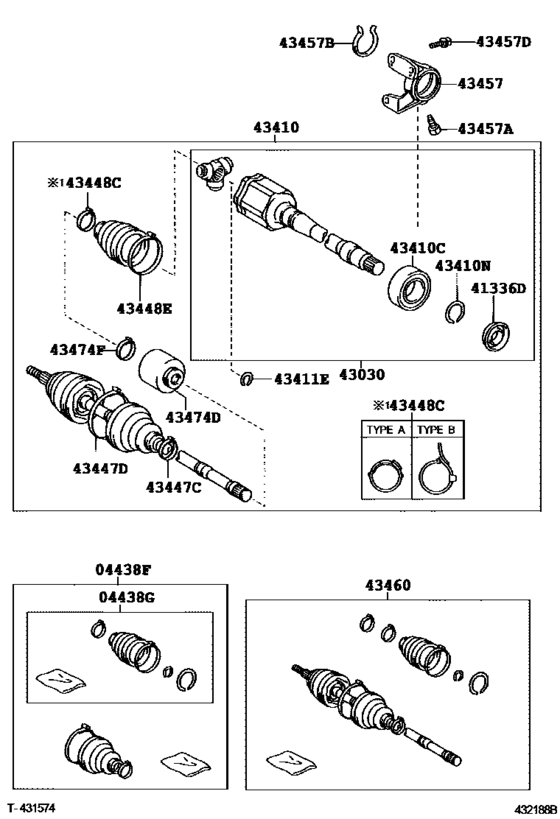

Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33) 33

#	OEM	Part name
4438	04427-0R080	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-0R081	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-0R060	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04427-0R070	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-0R071	Boot Kit, Front Drive Shaft, In & Outboard, Rh
41336	41336-52020	Cover, Front Drive Shaft Dust, Rh
43030	43030-0R030	Joint Assy, Front Drive Inboard, Rh
43030	43030-0R120	Joint Assy, Front Drive Inboard, Rh
43030	43030-0R020	Joint Assy, Front Drive Inboard, Rh
43410	43410-0R080	Shaft Assy, Front Drive, Rh
43410	90363-36006	Bearing (For Front Drive Shaft)
43410	90363-C0015	Bearing (For Front Drive Shaft)
43410	90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)
43410	43410-0R070	Shaft Assy, Front Drive, Rh
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43447	42345-42120	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42110	Clamp, No.2 (For Front Axle Outboard Joint Boot)
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43457	43457-42060	Bracket, Drive Shaft Bearing
43457	90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-75002	Ring, Hole Snap (For Drive Shaft Bearing Bracket)
43457	90105-C0014	Bolt(For Drive Shaft Bearring Bracket Setting No.2)
43457	43457-42050	Bracket, Drive Shaft Bearing
43460	43470-09X60	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-09X50	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-09X51	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-0R010	Damper, Front Drive Shaft, Lh
43474	43474-0R140	Damper, Front Drive Shaft, Lh
43474	42345-06420	Clamp (For Drive Shaft Damper Setting)

OEM	Part name	Category
04427-0R070	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
04427-0R071	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
04427-0R080	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
04427-0R081	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
04437-0R060	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
41336-52020	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-06420	Clamp (For Drive Shaft Damper Setting)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-42110	Clamp, No.2 (For Front Axle Outboard Joint Boot)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
42345-42120	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43030-0R020	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43030-0R030	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43030-0R120	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43410-0R070	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43410-0R080	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43457-42050	Bracket, Drive Shaft Bearing	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43457-42060	Bracket, Drive Shaft Bearing	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43470-09X50	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43470-09X51	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43470-09X60	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43474-0R010	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
43474-0R140	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90105-C0014	Bolt(For Drive Shaft Bearring Bracket Setting No.2)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90363-36006	Bearing (For Front Drive Shaft)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90363-C0015	Bearing (For Front Drive Shaft)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90521-75002	Ring, Hole Snap (For Drive Shaft Bearing Bracket)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([03.2009 - ] RH (0903- )ACA32,33)
