Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

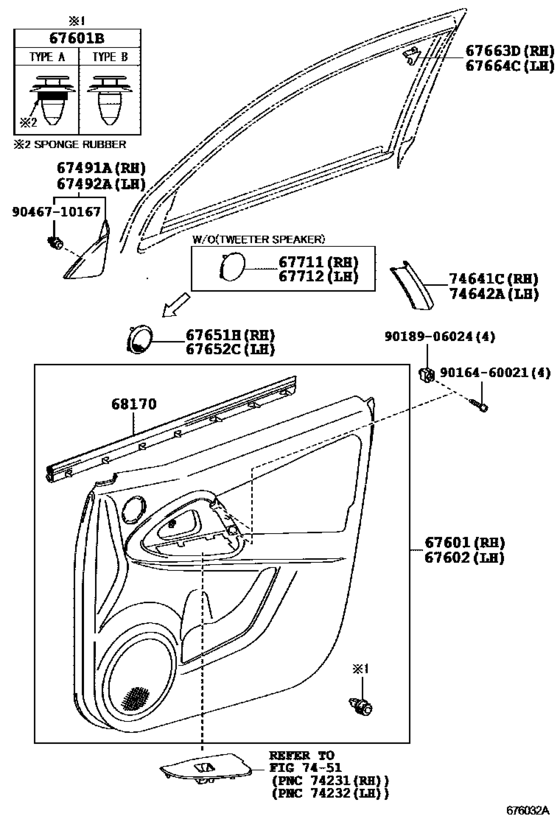

Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- )) 22

#	OEM	Part name
67491	67491-0R020	Garnish, Front Door Lower Frame Bracket, Rh
67492	67492-0R020	Garnish, Front Door Lower Frame Bracket, Lh
67601	67610-0R060-B3	Board Sub-Assy, Front Door Trim, Rh
67601	67610-0R060-B4	Board Sub-Assy, Front Door Trim, Rh
67601	67610-0R070-B2	Board Sub-Assy, Front Door Trim, Rh
67601	67610-0R070-B3	Board Sub-Assy, Front Door Trim, Rh
67601	90467-09206	Clip, Front Air Shutter Seal
67601	90467-10161	Clip
67602	67620-0R060-B3	Board Sub-Assy, Front Door Trim, Lh
67602	67620-0R060-B4	Board Sub-Assy, Front Door Trim, Lh
67602	67620-0R070-B2	Board Sub-Assy, Front Door Trim, Lh
67602	67620-0R070-B3	Board Sub-Assy, Front Door Trim, Lh
67663	67663-0R020	Garnish, Door Frame, Rh
67664	67664-0R020	Garnish, Door Frame, Lh
67711	67651-0R030-B0	Cover, Front Door Trim, Rh
68170	68171-0R020	Weatherstrip Assy, Front Door Glass, Inner
68170	68172-0R020	Weatherstrip Assy, Front Door Glass, Inner
74641	74641-42010-B0	Cover, Front Door Assist Grip, Rh
74642	74642-42010-B0	Cover, Front Door Assist Grip, Lh
9016460021	90164-60021	SCREW BINDING
9018906024	90189-06024	GROMMET
9046710167	90467-10167	Clip(For Rear Floor Finish Plate)

OEM	Part name	Category
67491-0R020	Garnish, Front Door Lower Frame Bracket, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67492-0R020	Garnish, Front Door Lower Frame Bracket, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67610-0R060-B3	Board Sub-Assy, Front Door Trim, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67610-0R060-B4	Board Sub-Assy, Front Door Trim, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67610-0R070-B2	Board Sub-Assy, Front Door Trim, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67610-0R070-B3	Board Sub-Assy, Front Door Trim, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67620-0R060-B3	Board Sub-Assy, Front Door Trim, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67620-0R060-B4	Board Sub-Assy, Front Door Trim, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67620-0R070-B2	Board Sub-Assy, Front Door Trim, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67620-0R070-B3	Board Sub-Assy, Front Door Trim, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67651-0R030-B0	Cover, Front Door Trim, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67663-0R020	Garnish, Door Frame, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67664-0R020	Garnish, Door Frame, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
68171-0R020	Weatherstrip Assy, Front Door Glass, Inner	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
68172-0R020	Weatherstrip Assy, Front Door Glass, Inner	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
74641-42010-B0	Cover, Front Door Assist Grip, Rh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
74642-42010-B0	Cover, Front Door Assist Grip, Lh	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90164-60021	SCREW BINDING	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90189-06024	GROMMET	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90467-09206	Clip, Front Air Shutter Seal	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90467-10161	Clip	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90467-10167	Clip(For Rear Floor Finish Plate)	Front Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
