Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

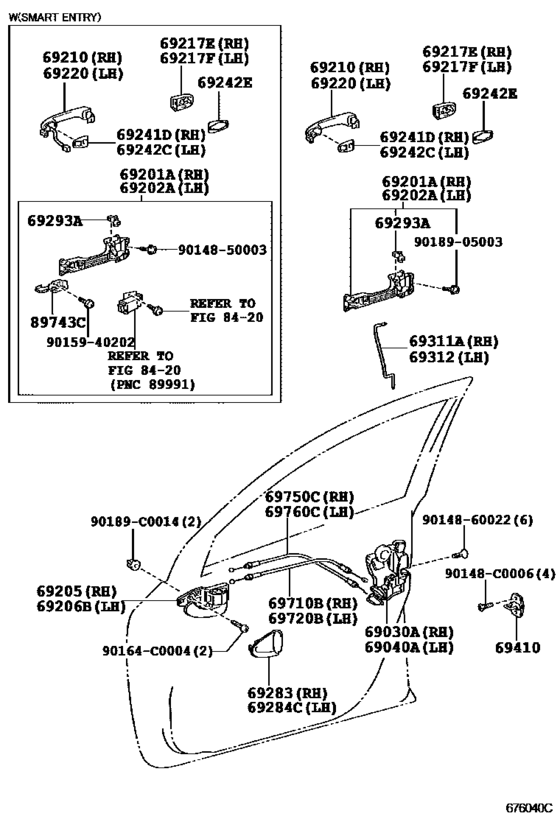

Front Door Lock & Handle ([03.2009 - ] (0903- )) 46

#	OEM	Part name
69030	69030-06221	Lock Assy, Front Door W/motor, Rh
69040	69040-06191	Lock Assy, Front Door W/motor, Lh
69201	69201-02100	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-02070	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0R020-B0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0R020-B0	Handle Sub-Assy, Front Door Inside, Lh
69210	69211-02190-A1	Handle Assy, Front Door, Outside Rh
69210	69211-02190-B1	Handle Assy, Front Door, Outside Rh
69210	69211-02190-B2	Handle Assy, Front Door, Outside Rh
69210	69211-02190-B4	Handle Assy, Front Door, Outside Rh
69210	69211-02190-C0	Handle Assy, Front Door, Outside Rh
69210	69211-02190-D1	Handle Assy, Front Door, Outside Rh
69210	69211-02190-E3	Handle Assy, Front Door, Outside Rh
69217	69217-02140-A0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02140-B0	Cover, Back Door Outside Handle
69217	69217-02140-B1	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02140-B3	Cover, Back Door Outside Handle
69217	69217-02140-C0	Cover, Back Door Outside Handle
69217	69217-02140-D0	Cover, Back Door Outside Handle
69217	69217-02140-E3	Cover, Back Door Outside Handle
69217	69217-02170-A1	Cover, Front Door Outside Handle
69217	69217-02170-B1	Cover, Front Door Outside Handle
69217	69217-02170-B2	Cover, Front Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02170-B4	Cover, Front Door Outside Handle
69217	69217-02170-C0	Cover, Front Door Outside Handle
69217	69217-02170-D1	Cover, Front Door Outside Handle
69217	69217-02170-E3	Cover, Front Door Outside Handle
69241	69241-02070	Pad, Front Door Outside Handle, Rh
69242	69242-02070	Pad, Front Door Outside Handle, Lh
69283	69283-06050-B0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-06050-B0	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69311	69311-0R020	Rod, Front Door Lock Open, Rh
69312	69312-0R020	Rod, Front Door Lock Open, Lh
69410	69410-0P010	Plate Assy, Front Door Lock Striker
69710	69710-0R020	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-0R020	Cable Assy, Front Door Inside Locking, Rh
90148	90148-C0006	New Genuine Part
90164	90164-C0004	New Genuine Part
90189	90189-C0014	New Genuine Part
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9015940202	90159-40202	SCREW WWASHER
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-06221	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69040-06191	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69201-02100	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69202-02070	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69205-0R020-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69206-0R020-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-A1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-B2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-B4	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-D1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69211-02190-E3	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-A0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-B0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-B1	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-B3	Cover, Back Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-C0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-D0	Cover, Back Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02140-E3	Cover, Back Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-A1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-B1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-B2	Cover, Front Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-B4	Cover, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-C0	Cover, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-D1	Cover, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69217-02170-E3	Cover, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69241-02070	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69242-02070	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69283-06050-B0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69284-06050-B0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69311-0R020	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69312-0R020	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69410-0P010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69710-0R020	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
69750-0R020	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90148-60022	BOLT	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90148-C0006	New Genuine Part	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90159-40202	SCREW WWASHER	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90164-C0004	New Genuine Part	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90189-05003	CLIP	Front Door Lock & Handle ([03.2009 - ] (0903- ))
90189-C0014	New Genuine Part	Front Door Lock & Handle ([03.2009 - ] (0903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 189
Collected: 2026-08-02
