Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

← Back to categories

3,836 items

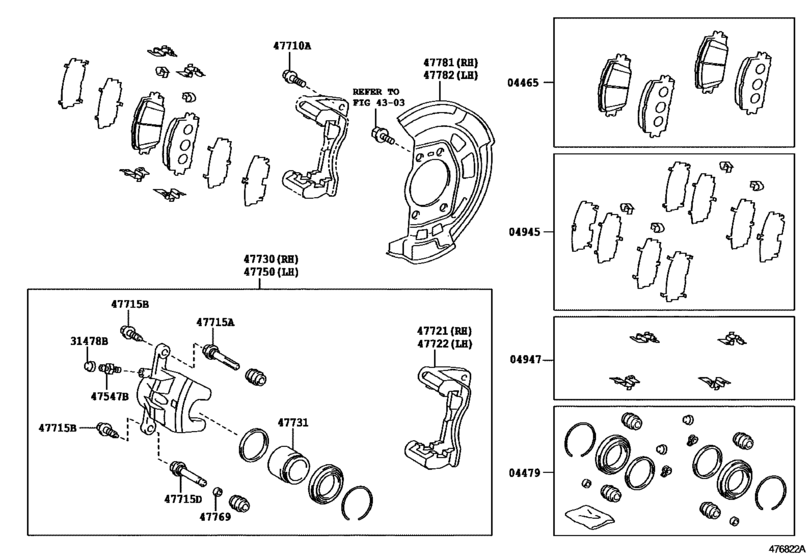

Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- )) 18

#	OEM	Part name
4465	04465-42180	Pad Kit, Disc Brake, Front
4479	04478-0R010	Cylinder Kit, Disc Brake, Front
4945	04945-0R020	Shim Kit, Anti Squeal, Front
4947	04947-02100	Fitting Kit, Disc Brake, Front
31478	31478-0N010	Cap, Bleeder Plug(For Release Cylinder)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	90105-C0021	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47714-06270	Pin, Front Disc Brake Cylinder Slide
47715	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47715	47715-06270	Pin, Front Disc Brake Cylinder Slide, No.2
47721	47721-0R030	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-0R030	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-0R030	Cylinder Assy, Front Disc Brake, Rh
47731	47731-0R030	Piston, Front Disc Brake
47750	47750-0R030	Cylinder Assy, Disc Brake, Lh
47769	47769-0P010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47781	47781-0R030	Cover, Disc Brake Dust, Front Rh
47782	47782-0R030	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-42180	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
04478-0R010	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
04945-0R020	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
04947-02100	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
31478-0N010	Cap, Bleeder Plug(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47714-06270	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47715-06270	Pin, Front Disc Brake Cylinder Slide, No.2	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47721-0R030	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47722-0R030	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47730-0R030	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47731-0R030	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47750-0R030	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47769-0P010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47781-0R030	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
47782-0R030	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))
90105-C0021	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([03.2009 - ] (0903- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 189
Collected: 2026-08-02
