ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

3,836 items

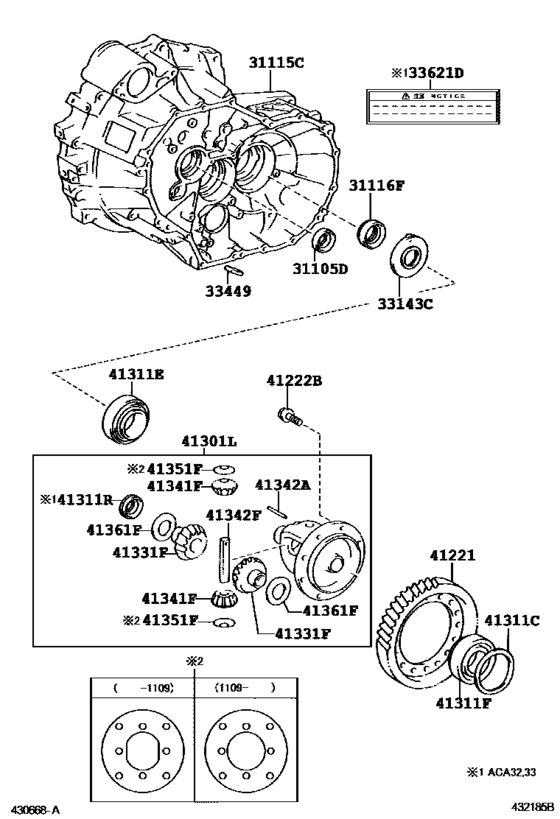

Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F) 40

#	OEM	Part name
31105	90311-30017	Seal, Oil, No.1(For Front Transaxle Case)
31115	31115-42041	Case, Front Transaxle(Mtm)
31116	90311-55004	Seal, Type T Oil, No.1(For Cvt) - OIL, NO.2(FOR TRANSAXLE CASE)
33143	33143-28010	Baffle, Front Differential Oil
33449	33449-20010	Magnet, Transmission
33621	33621-42020	Label, Transaxle Oil Information
41221	41221-42090	Gear, Front Differential Ring
41222	90105-12319	Bolt (For Front Differential Ring Gear Set)
41301	41301-42100	Case Sub-Assy, Front Differential, No.1
41311	90564-56091	Shim (For Front Differential Case Rear)
41311	90564-56092	Shim (For Front Differential Case Rear)
41311	90564-56093	Shim (For Front Differential Case Rear)
41311	90564-56094	Shim (For Front Differential Case Rear)
41311	90564-56095	Shim (For Front Differential Case Rear)
41311	90564-56096	Shim (For Front Differential Case Rear)
41311	90564-56097	Shim (For Front Differential Case Rear)
41311	90564-56098	Shim (For Front Differential Case Rear)
41311	90564-56099	Shim (For Front Differential Case Rear)
41311	90564-56100	Shim (For Front Differential Case Rear)
41311	90564-56101	Shim (For Front Differential Case Rear)
41311	90564-56102	Shim (For Front Differential Case Rear)
41311	90564-56103	Shim (For Front Differential Case Rear)
41311	90564-56104	Shim (For Front Differential Case Rear)
41311	90564-56105	Shim (For Front Differential Case Rear)
41311	90564-56106	Shim (For Front Differential Case Rear)
41311	90564-56107	Shim (For Front Differential Case Rear)
41311	90564-56108	Shim (For Front Differential Case Rear)
41311	90366-57001	Bearing(For Rear Differential Case)
41311	90366-50072	Bearing, Tapered Roller (For Front Differential Case Rear)
41311	90316-34001	Oil Seal, Front Drive Shaft, Rh
41331	41331-12140	Gear, Front Differential Side
41341	41341-12090	Pinion, Front Differential
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-28010	Shaft, Front Differential Pinion, No.1
41351	41351-28010	Washer, Front Differential Pinion Thrust
41351	41351-30060	Washer, Rear Differential Pinion Thrust
41361	41361-28230	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28240	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28250	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-28260	Washer, Front Differential Side Gear Thrust, No.1

OEM	Part name	Category
31115-42041	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
33143-28010	Baffle, Front Differential Oil	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
33449-20010	Magnet, Transmission	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
33621-42020	Label, Transaxle Oil Information	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41221-42090	Gear, Front Differential Ring	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41301-42100	Case Sub-Assy, Front Differential, No.1	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41331-12140	Gear, Front Differential Side	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41341-12090	Pinion, Front Differential	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41342-28010	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41351-28010	Washer, Front Differential Pinion Thrust	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41351-30060	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41361-28230	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41361-28240	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41361-28250	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
41361-28260	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90105-12319	Bolt (For Front Differential Ring Gear Set)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90311-30017	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90311-55004	Seal, Type T Oil, No.1(For Cvt) - OIL, NO.2(FOR TRANSAXLE CASE)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90316-34001	Oil Seal, Front Drive Shaft, Rh	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90366-50072	Bearing, Tapered Roller (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90366-57001	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56091	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56092	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56093	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56094	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56095	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56096	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56097	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56098	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56099	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56100	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56101	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56102	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56103	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56104	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56105	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56106	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56107	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
90564-56108	Shim (For Front Differential Case Rear)	Front Axle Housing & Differential ([03.2009 - ] E352,E359F (0903- )5F)
