Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

← Back to categories

3,836 items

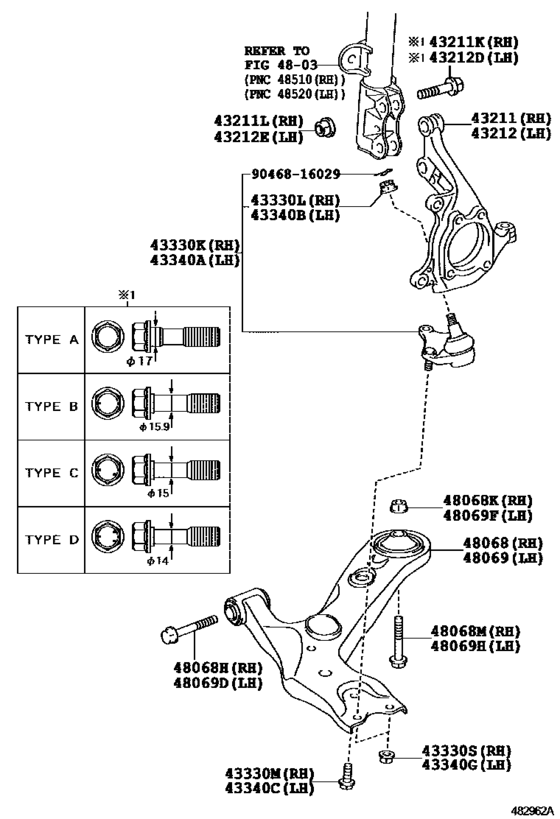

Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- )) 17

#	OEM	Part name
43211	43211-0R010	Knuckle, Steering, Rh
43211	90105-17008	Bolt (For Steering Knuckle Rh)
43211	90105-17009	Bolt (For Steering Knuckle Rh)
43211	90105-17010	Bolt (For Steering Knuckle Rh)
43211	90105-17011	Bolt (For Steering Knuckle Rh)
43211	90178-17002	Nut (For Rear Axle Carrier Rh)
43212	43212-0R010	Knuckle, Steering, Lh
43330	43330-09651	Joint Assy, Lower Ball, Front Rh
43330	43330-09652	Joint Assy, Lower Ball, Front Rh
43330	90171-14011	Nut, Castle (For Front Lower Ball Joint Setting)
43330	90105-C0059	Bolt (For Front Lower Ball Joint Rh)
43330	90178-C0062	Nut (For Front Lower Ball Joint Rh)
48068	48068-0R020	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90105-C0066	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)
48069	48069-0R020	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9046816029	90468-16029	CLIP

OEM	Part name	Category
43211-0R010	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
43212-0R010	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
43330-09651	Joint Assy, Lower Ball, Front Rh	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
43330-09652	Joint Assy, Lower Ball, Front Rh	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
48068-0R020	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
48069-0R020	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90105-17008	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90105-17009	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90105-17010	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90105-17011	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90105-C0059	Bolt (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90105-C0066	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90171-14011	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90178-16006	Nut(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90178-17002	Nut (For Rear Axle Carrier Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90178-C0062	Nut (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
90468-16029	CLIP	Front Axle Arm & Steering Knuckle ([03.2009 - ] (0903- ))
