Search › Model › ACA32

ACA32

Toyota RAV4-VANGUARD · 2011 · 3,836 parts · 189 categories

← Back to categories

3,836 items

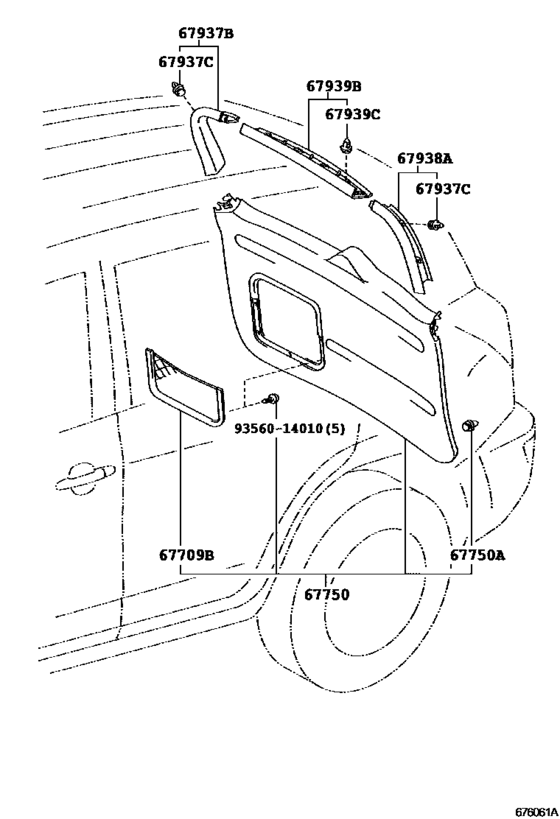

Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- )) 11

#	OEM	Part name
67709	67709-0R020-B1	Pocket Sub-Assy, Back Door Trim
67750	67750-0R030-B0	Board Assy, Back Door Trim
67750	90467-09206	Clip, Front Air Shutter Seal
67937	67937-0R020-B0	Garnish, Back Door Side, Rh
67937	67937-0R020-E0	Garnish, Back Door Side, Rh
67937	90467-10161	Clip
67938	67938-0R020-B0	Garnish, Back Door Side, Lh
67938	67938-0R020-E0	Garnish, Back Door Side, Lh
67939	67939-0R020-B0	Garnish, Back Door, Center
67939	67939-0R020-E0	Garnish, Back Door, Center
9356014010	93560-14010	SCREW

OEM	Part name	Category
67709-0R020-B1	Pocket Sub-Assy, Back Door Trim	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67750-0R030-B0	Board Assy, Back Door Trim	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67937-0R020-B0	Garnish, Back Door Side, Rh	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67937-0R020-E0	Garnish, Back Door Side, Rh	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67938-0R020-B0	Garnish, Back Door Side, Lh	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67938-0R020-E0	Garnish, Back Door Side, Lh	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67939-0R020-B0	Garnish, Back Door, Center	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
67939-0R020-E0	Garnish, Back Door, Center	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90467-09206	Clip, Front Air Shutter Seal	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
90467-10161	Clip	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
93560-14010	SCREW	Back Door Panel & Glass ([03.2009 - ] DOOR TRIM (0903- ))
