ACA32

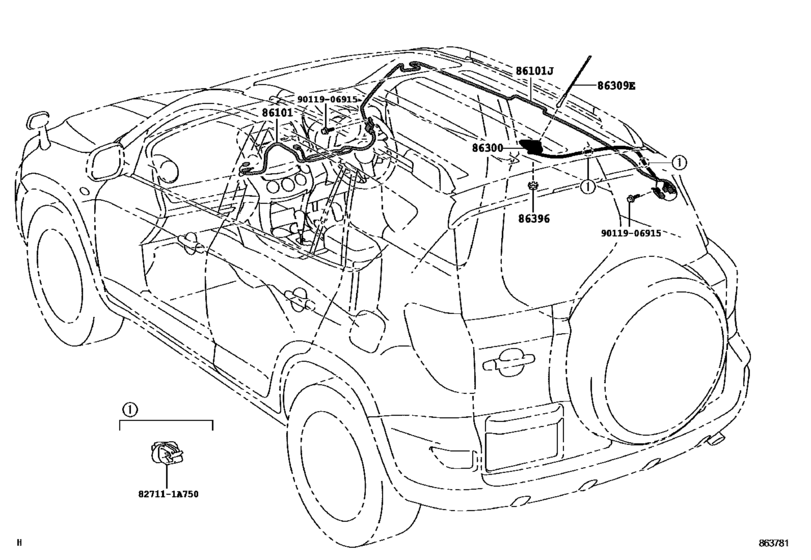

Antenna ([03.2009 - ] (0903- )) 9
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-0R100 | Cord Sub-Assy, Antenna |
| 86101 | 86101-0R101 | Cord Sub-Assy, Antenna |
| 86101 | 86101-0R090 | Cord Sub-Assy, Antenna, No.2 |
| 86101 | 86101-0R091 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-0R040 | Antenna Assy, W/holder |
| 86309 | 86309-0D030 | Pole Sub-Assy, Roof Antenna |
| 86396 | 86396-0D010 | Nut, Antenna |
| 827111 | 82711-1A750 | Clamp, No.1(For Back Door Lock Control Cable) |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-1A750 | Clamp, No.1(For Back Door Lock Control Cable) | Antenna ([03.2009 - ] (0903- )) |
| 86101-0R090 | Cord Sub-Assy, Antenna, No.2 | Antenna ([03.2009 - ] (0903- )) |
| 86101-0R091 | Cord Sub-Assy, Antenna, No.2 | Antenna ([03.2009 - ] (0903- )) |
| 86101-0R100 | Cord Sub-Assy, Antenna | Antenna ([03.2009 - ] (0903- )) |
| 86101-0R101 | Cord Sub-Assy, Antenna | Antenna ([03.2009 - ] (0903- )) |
| 86300-0R040 | Antenna Assy, W/holder | Antenna ([03.2009 - ] (0903- )) |
| 86309-0D030 | Pole Sub-Assy, Roof Antenna | Antenna ([03.2009 - ] (0903- )) |
| 86396-0D010 | Nut, Antenna | Antenna ([03.2009 - ] (0903- )) |
| 90119-06915 | BOLT W-WASHER | Antenna ([03.2009 - ] (0903- )) |
