ACA30

Toyota RAV4-VANGUARD · 2005 · 5,597 parts · 233 categories

5,597 items

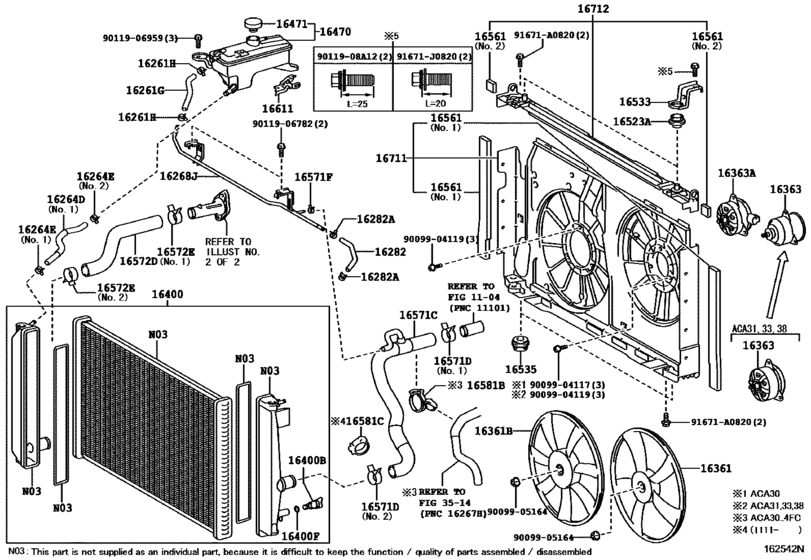

Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE) 65

#	OEM	Part name
16258	16258-28030	Gasket(For Heater Return)
16261	16261-28070	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	16261-28100	Hose, Water By-Pass
16261	96135-51300	Clamp, Hose
16261	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-28090	Hose, Water By-Pass, No.2
16264	96134-51700	Clip Or Clamp(For Ventilation Hose)
16264	16264-28120	Hose, Water By-Pass, No.2
16268	16268-31020	Pipe, Water By-Pass, No.5
16268	16268-31011	Pipe, Water By-Pass, No.1
16268	16268-31021	Pipe, Water By-Pass, No.1
16268	16268-28010	Pipe, Water By-Pass, No.1
16282	16282-28120	Hose, Water By-Pass, No.5
16321	16321-28020	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16331	90916-03136	Thermostat
16361	16361-28200	Fan
16361	16361-28210	Fan, No.2
16363	16363-28020	Motor, Cooling Fan
16363	16363-28240	Motor, Cooling Fan, No.2
16400	16400-28560	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16470-28110	Tank Assy, Radiator Reserve
16470	16470-28113	Tank Assy, Radiator Reserve
16470	16470-28111	Tank Assy, Radiator Reserve
16471	16401-75120	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-28120	Cap Sub-Assy, Reserve Tank
16471	16475-37010	Cap Sub-Assy, Radiator Reserve Tank
16523	16523-28030	Cushion, Radiator Support
16533	16533-28030	Support, Radiator, Upper
16535	16535-20030	Support, Radiator, Lower
16561	16561-28080	Seal, Radiator To Support, No.1
16561	16561-28090	Seal, Radiator To Support, No.1
16571	16571-28250	Hose, Radiator, No.1
16571	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-41005	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-54301	Clip, Radiator Hose, No.1
16571	96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-13073	Clamp Or Clip, Hose(For Water By-Pass Hose)
16571	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-28210	Hose, Radiator, No.2
16581	16581-28020	Clamp, Hose(For Radiator Hose)
16581	16581-26040	Clamp, Hose(For Water Hose)
16611	16611-28030	Bracket, Radiator Reserve Tank
16711	16711-28330	Shroud, Fan
16711	16711-28331	Shroud, Fan
16712	16712-28050	Shroud, Fan, No.2
91631	91631-G0614	BOT WWASHER
91671	91671-A0820	New Genuine Part
91671	91671-J0820	BOLT FLANGE
9011908	90119-08A12	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9011906782	90119-06782	BOLT WWASHER
9011906959	90119-06959	New Genuine Part
9012606024	90126-06024	STUD HEX LOBULAR
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16261-28070	Hose, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16261-28100	Hose, Water By-Pass	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16264-28090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16264-28120	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16268-28010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16268-31011	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16268-31020	Pipe, Water By-Pass, No.5	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16268-31021	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16282-28120	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16321-28020	Inlet, Water	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16361-28200	Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16361-28210	Fan, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16363-28020	Motor, Cooling Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16363-28240	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16400-28560	Radiator Assy	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16401-75120	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16470-28110	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16470-28111	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16470-28113	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16475-28120	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16475-37010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16523-28030	Cushion, Radiator Support	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16533-28030	Support, Radiator, Upper	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16535-20030	Support, Radiator, Lower	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16561-28080	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16561-28090	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16571-28250	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16572-28210	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16581-26040	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16581-28020	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16611-28030	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16711-28330	Shroud, Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16711-28331	Shroud, Fan	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
16712-28050	Shroud, Fan, No.2	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90099-05164	Nut	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90119-06782	BOLT WWASHER	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90119-06959	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90119-08A12	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90126-06024	STUD HEX LOBULAR	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90466-41005	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90467-13073	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
90916-03136	Thermostat	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
91671-A0820	New Genuine Part	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
91671-J0820	BOLT FLANGE	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
94150-80640	NUT FLANGE	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96134-51700	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96136-54301	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2005 - ] (0511- )1AZFE,2AZFE)
