Search › Model › ACA30

ACA30

Toyota RAV4-VANGUARD · 2005 · 5,597 parts · 233 categories

5,597 items

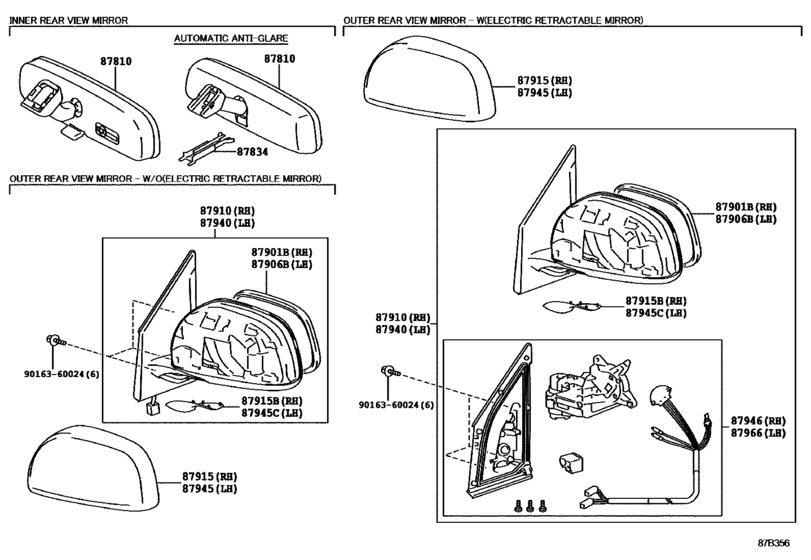

Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30) 75

#	OEM	Part name
87810	87810-52040	Mirror Assy, Inner Rear View
87810	87810-52041	Mirror Assy, Inner Rear View
87810	87810-AA011	Mirror Assy, Inner Rear View
87810	87810-05040	Mirror Assy, Inner Rear View
87810	87810-05042	Mirror Assy, Inner Rear View
87810	87810-05041	Mirror Assy, Inner Rear View
87834	87818-AC010	Cover, Inner Rear View Mirror Stay Holder
87901	87931-42850	Mirror Sub-Assy, Outer Rear View, Rh
87901	87931-B4120	Outer Mirror, Rh
87901	87931-42840	Mirror Sub-Assy, Outer Rear View, Rh
87901	87931-42A00	Mirror Sub-Assy, Outer Rear View, Rh
87906	87961-42830	Mirror Sub-Assy, Outer Rear View, Lh
87906	87961-B4120	Mirror Outer, Lh
87906	87961-42840	Mirror Sub-Assy, Outer Rear View, Lh
87910	87910-42850	Mirror Assy, Outer Rear View, Rh
87910	87910-42A70	Mirror Assy, Outer Rear View, Rh
87910	87910-42840	Mirror Assy, Outer Rear View, Rh
87910	87910-42A60	Mirror Assy, Outer Rear View, Rh
87915	87915-42031-A0	Cover, Outer Mirror, Rh
87915	87915-42031-B0	Cover, Outer Mirror, Rh
87915	87915-42031-B1	Cover, Outer Mirror, Rh
87915	87915-42031-C0	Cover, Outer Mirror, Rh
87915	87915-42031-J0	Cover, Outer Mirror, Rh
87915	87915-42031-J1	Cover, Outer Mirror, Rh
87915	87915-42060-A0	Cover, Outer Mirror, Rh
87915	87915-42060-B0	Cover, Outer Mirror, Rh
87915	87915-42060-B1	Cover, Outer Mirror, Rh
87915	87915-42060-B2	Cover, Outer Mirror, Rh
87915	87915-42060-C0	Cover, Outer Mirror, Rh
87915	87915-42060-D0	Cover, Outer Mirror, Rh
87915	87915-42060-D1	Cover, Outer Mirror, Rh
87915	87915-42060-E0	Cover, Outer Mirror, Rh
87915	87915-42060-E1	Cover, Outer Mirror, Rh
87915	87915-42060-G0	Cover, Outer Mirror, Rh
87915	87915-42060-J0	Cover, Outer Mirror, Rh
87915	87915-42080	Cover, Outer Mirror, Lower Rh
87915	87915-42031-D0	Cover, Outer Mirror, Rh
87915	87915-42031-E0	Cover, Outer Mirror, Rh
87915	87915-42031-G0	Cover, Outer Mirror, Rh
87915	87915-42031-G1	Cover, Outer Mirror, Rh
87915	87915-42060-A1	Cover, Outer Mirror, Rh
87915	87915-42060-K0	Cover, Outer Mirror, Rh
87940	87940-42790	Mirror Assy, Outer Rear View, Lh
87940	87940-42A40	Mirror Assy, Outer Rear View, Lh
87940	87940-42780	Mirror Assy, Outer Rear View, Lh
87940	87940-42A30	Mirror Assy, Outer Rear View, Lh
87945	87945-42031-A0	Cover, Outer Mirror, Lh
87945	87945-42031-B0	Cover, Outer Mirror, Lh
87945	87945-42031-B1	Cover, Outer Mirror, Lh
87945	87945-42031-C0	Cover, Outer Mirror, Lh
87945	87945-42031-J0	Cover, Outer Mirror, Lh
87945	87945-42031-J1	Cover, Outer Mirror, Lh
87945	87945-42060-A0	Cover, Outer Mirror, Lh
87945	87945-42060-B0	Cover, Outer Mirror, Lh
87945	87945-42060-B1	Cover, Outer Mirror, Lh
87945	87945-42060-B2	Cover, Outer Mirror, Lh
87945	87945-42060-C0	Cover, Outer Mirror, Lh
87945	87945-42060-D0	Cover, Outer Mirror, Lh
87945	87945-42060-D1	Cover, Outer Mirror, Lh
87945	87945-42060-E0	Cover, Outer Mirror, Lh
87945	87945-42060-E1	Cover, Outer Mirror, Lh
87945	87945-42060-G0	Cover, Outer Mirror, Lh
87945	87945-42060-J0	Cover, Outer Mirror, Lh
87945	87945-42080	Cover, Outer Mirror, Lower Lh
87945	87945-42031-D0	Cover, Outer Mirror, Lh
87945	87945-42031-E0	Cover, Outer Mirror, Lh
87945	87945-42031-G0	Cover, Outer Mirror, Lh
87945	87945-42031-G1	Cover, Outer Mirror, Lh
87945	87945-42060-A1	Cover, Outer Mirror, Lh
87945	87945-42060-K0	Cover, Outer Mirror, Lh
87946	87946-42840	Retractor, Outer Mirror, Rh
87946	87946-42A60	Retractor, Outer Mirror, Rh
87966	87966-42780	Retractor, Outer Mirror, Lh
87966	87966-42A20	Retractor, Outer Mirror, Lh
9016360024	90163-60024	SCREW HEXAGON

OEM	Part name	Category
87810-05040	Mirror Assy, Inner Rear View	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87810-05041	Mirror Assy, Inner Rear View	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87810-05042	Mirror Assy, Inner Rear View	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87810-52040	Mirror Assy, Inner Rear View	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87810-52041	Mirror Assy, Inner Rear View	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87810-AA011	Mirror Assy, Inner Rear View	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87818-AC010	Cover, Inner Rear View Mirror Stay Holder	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87910-42840	Mirror Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87910-42850	Mirror Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87910-42A60	Mirror Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87910-42A70	Mirror Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-A0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-B0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-B1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-C0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-D0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-E0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-G0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-G1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-J0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42031-J1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-A0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-A1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-B0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-B1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-B2	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-C0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-D0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-D1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-E0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-E1	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-G0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-J0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42060-K0	Cover, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87915-42080	Cover, Outer Mirror, Lower Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87931-42840	Mirror Sub-Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87931-42850	Mirror Sub-Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87931-42A00	Mirror Sub-Assy, Outer Rear View, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87931-B4120	Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87940-42780	Mirror Assy, Outer Rear View, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87940-42790	Mirror Assy, Outer Rear View, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87940-42A30	Mirror Assy, Outer Rear View, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87940-42A40	Mirror Assy, Outer Rear View, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-A0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-B0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-B1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-C0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-D0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-E0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-G0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-G1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-J0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42031-J1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-A0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-A1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-B0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-B1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-B2	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-C0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-D0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-D1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-E0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-E1	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-G0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-J0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42060-K0	Cover, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87945-42080	Cover, Outer Mirror, Lower Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87946-42840	Retractor, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87946-42A60	Retractor, Outer Mirror, Rh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87961-42830	Mirror Sub-Assy, Outer Rear View, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87961-42840	Mirror Sub-Assy, Outer Rear View, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87961-B4120	Mirror Outer, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87966-42780	Retractor, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
87966-42A20	Retractor, Outer Mirror, Lh	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
90163-60024	SCREW HEXAGON	Mirror ([11.2005 - 12.2008] (0511-0808)ACA33,38,GSA33 ; (0511-0812)ACA30,31, ALA30)
