ACA30

Toyota RAV4-VANGUARD · 2005 · 5,597 parts · 233 categories

← Back to categories

5,597 items

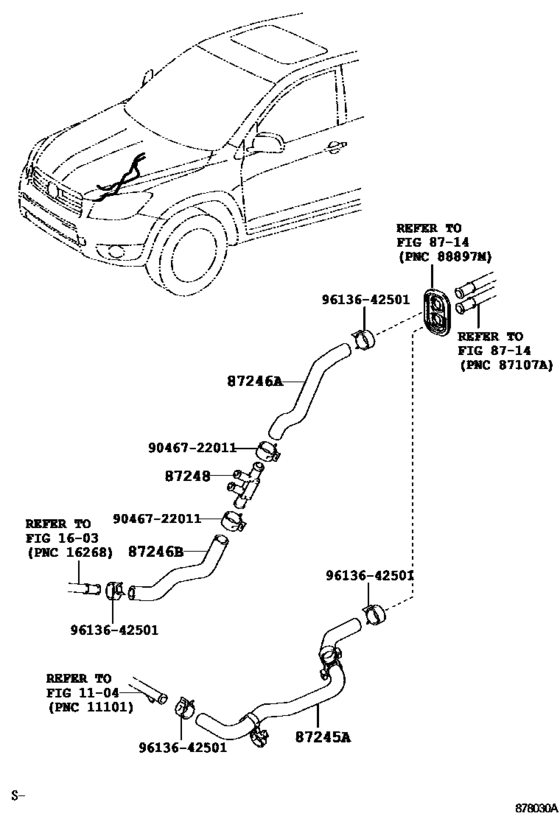

Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC) 8

#	OEM	Part name
87245	87209-42060	Hose, Heater Water, Inlet A
87246	87245-42360	Hose, Heater Water, Outlet A
87246	87245-42370	Hose, Heater Water, Outlet B
87248	87248-42010	Pipe Sub-Assy, Water
87248	87248-42041	Pipe Sub-Assy, Water
87248	87248-42040	Pipe Sub-Assy, Water
9046722011	90467-22011	Clip(For Water By-Pass Hose No.1)
9613642501	96136-42501	Clip(For Ventilation Hose)

OEM	Part name	Category
87209-42060	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
87245-42360	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
87245-42370	Hose, Heater Water, Outlet B	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
87248-42010	Pipe Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
87248-42040	Pipe Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
87248-42041	Pipe Sub-Assy, Water	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
90467-22011	Clip(For Water By-Pass Hose No.1)	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)
96136-42501	Clip(For Ventilation Hose)	Heating & Air Conditioning - Water Piping ([11.2005 - ] (0511- )ACA30..4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 233
Collected: 2026-08-02
