Search › Model › ACA30

ACA30

Toyota RAV4-VANGUARD · 2005 · 5,597 parts · 233 categories

5,597 items

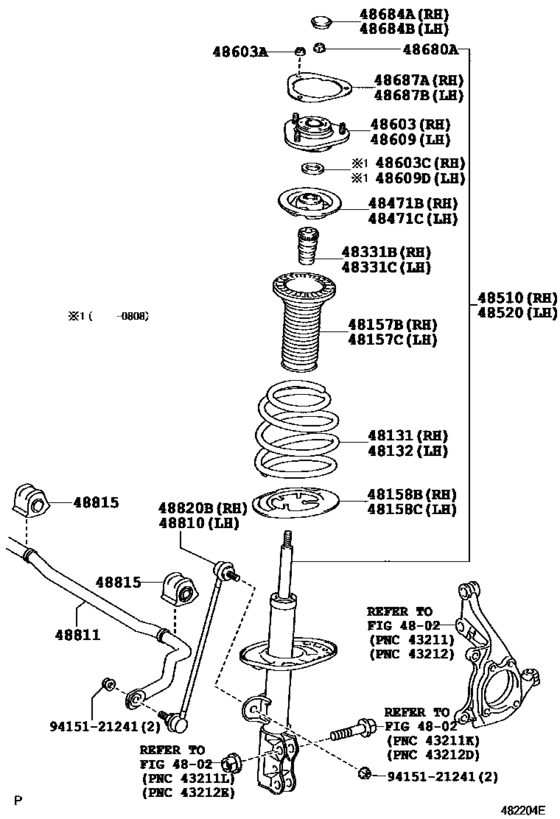

Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E) 47

#	OEM	Part name
48131	48131-42470	Spring, Front Coil, Rh
48131	48131-42471	Spring, Front Coil, Rh
48131	48131-42481	Spring, Front Coil, Rh
48131	48131-42540	Spring, Front Coil, Rh
48131	48131-42541	Spring, Front Coil, Rh
48131	48131-42550	Spring, Front Coil, Rh
48131	48131-42551	Spring, Front Coil, Rh
48131	48131-42552	Spring, Front Coil, Rh
48131	48131-42561	Spring, Front Coil, Rh
48157	48157-42020	Insulator, Front Coil Spring, Upper
48157	48157-42030	Insulator, Front Coil Spring, Upper
48157	48157-58010	Insulator, Front Coil Spring, Upper
48158	48158-21010	Insulator, Front Coil Spring, Lower Rh
48158	48158-42010	Insulator, Front Coil Spring, Lower
48331	48331-42030	Bumper, Front Spring, Rh
48331	48331-28090	BUMPER FR SPRING
48331	48331-42040	Bumper, Front Spring, Rh
48331	48331-42060	Bumper, Front Spring, Rh
48471	48044-42010	Seat, Front Coil Spring, Upper
48510	48510-80284	Absorber Assy, Shock, Front Rh
48510	48510-80638	Absorber Assy, Shock, Front Rh
48510	48510-80287	Absorber Assy, Shock, Front Rh
48510	48510-80637	Absorber Assy, Shock, Front Rh
48510	48510-80451	Absorber Assy, Shock, Front Rh
48510	48510-80579	Absorber Assy, Shock, Front Rh
48520	48520-80071	Absorber Assy, Shock, Front Lh
48520	48520-80341	Absorber Assy, Shock, Front Lh
48520	48520-80074	Absorber Assy, Shock, Front Lh
48520	48520-80340	Absorber Assy, Shock, Front Lh
48520	48520-80195	Absorber Assy, Shock, Front Lh
48520	48520-80299	Absorber Assy, Shock, Front Lh
48603	48609-42020	Support Sub-Assy, Front Suspension, Rh
48603	48609-42030	Support Sub-Assy, Front Suspension, Rh
48603	48609-42060	Support Sub-Assy, Front Suspension, Rh
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48603	90178-10030	Nut(For Front Suspension Support)
48680	90177-14005	Nut(For Front Support To Front Shock Absorber)
48684	48684-42010	Cover, Front Suspension Support Dust, Rh
48684	48684-42020	Cover, Front Suspension Support Dust, Rh
48684	48684-52010	Cover, Front Suspension Support Dust
48687	48687-28010	Plate, Front Suspension Support
48810	48820-42030	Link Assy, Front Stabilizer
48811	48811-42070	Bar, Stabilizer, Front
48811	48811-42071	Bar, Stabilizer, Front
48815	48815-42090	Bush, Front Stabilizer Bar, No.1 (LH)
48815	48815-42100	Bush, Front Stabilizer Bar, No.1, (RH)
9415121241	94151-21241	Nut(For Front Stabilizer Link)

OEM	Part name	Category
48044-42010	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42470	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42471	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42481	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42540	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42541	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42550	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42551	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42552	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48131-42561	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48157-42020	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48157-42030	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48157-58010	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48158-21010	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48158-42010	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48331-28090	BUMPER FR SPRING	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48331-42030	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48331-42040	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48331-42060	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48510-80284	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48510-80287	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48510-80451	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48510-80579	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48510-80637	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48510-80638	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48520-80071	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48520-80074	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48520-80195	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48520-80299	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48520-80340	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48520-80341	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48609-42020	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48609-42030	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48609-42060	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48684-42010	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48684-42020	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48684-52010	Cover, Front Suspension Support Dust	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48687-28010	Plate, Front Suspension Support	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48811-42070	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48811-42071	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48815-42090	Bush, Front Stabilizer Bar, No.1 (LH)	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48815-42100	Bush, Front Stabilizer Bar, No.1, (RH)	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
48820-42030	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
90177-14005	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
90178-10030	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
94151-21241	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([11.2005 - ] TYPE B, FOR PNC48510 OR 48520 (0511- )ACA33..ARL,GCC,GEN ; (0511- )ACA30 ,38,ALA30..4FC,5F,6F..EUR,GEN..ATYP E)
