ACA30

Toyota RAV4-VANGUARD · 2005 · 5,597 parts · 233 categories

5,597 items

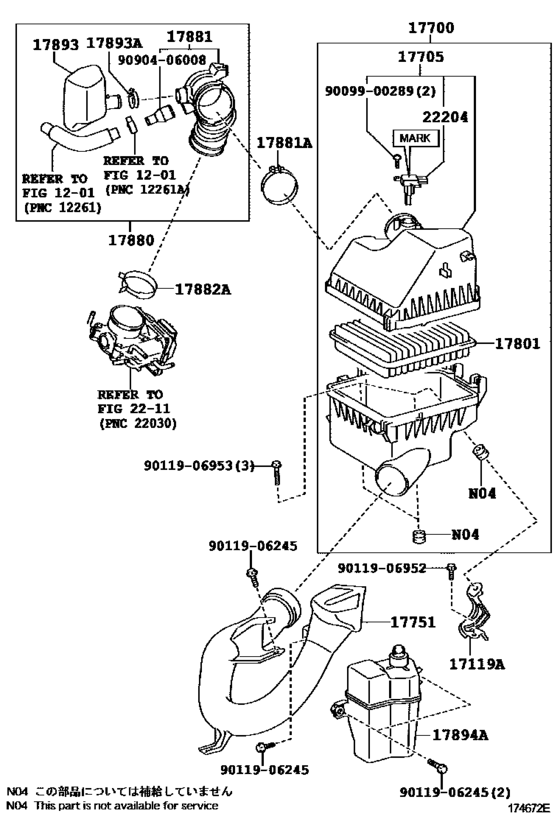

Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE) 26

#	OEM	Part name
17119	17119-28070	Bracket, Air Cleaner
17700	17700-28300	Cleaner Assy, Air
17700	17700-28302	Cleaner Assy, Air
17700	17700-28301	Cleaner Assy, Air
17705	17705-28250	Cap Sub-Assy, Air Cleaner
17705	17705-28252	Cap Sub-Assy, Air Cleaner
17705	17705-28251	Cap Sub-Assy, Air Cleaner
17751	17751-28060	Inlet, Air Cleaner, No.1
17801	17801-31120	Element Sub-Assy, Air Cleaner Filter
17880	17880-28240	Hose Assy, Air Cleaner
17881	17881-28260	Hose, Air Cleaner, No.1
17881	96111-10850	Clamp, Hose(For Air Connector)
17882	90466-62002	Clamp(For Air Cleaner Hose, No.1)
17893	17893-28060	Resonator, Intake Air
17893	96111-10380	Clamp Or Clip, Hose(For Radiator Inlet)
17894	17894-28110	Resonator, Intake Air, No.2
22204	22204-0H010	Meter Sub-Assy, Intake Air Flow
22204	22204-0P010	Meter Sub-Assy, Intake Air Flow
22204	22204-0T010	Meter Sub-Assy, Intake Air Flow
22204	22204-31010	Meter Sub-Assy, Intake Air Flow
22204	22204-31020	Meter Sub-Assy, Intake Air Flow
9009900289	90099-00289	SCREW
9011906245	90119-06245	BOLT
9011906952	90119-06952	New Genuine Part
9011906953	90119-06953	BOLT WWASHER
9090406008	90904-06008	Tube, Union(Fog Air Cleaner Hose)

OEM	Part name	Category
17119-28070	Bracket, Air Cleaner	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17700-28300	Cleaner Assy, Air	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17700-28301	Cleaner Assy, Air	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17700-28302	Cleaner Assy, Air	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17705-28250	Cap Sub-Assy, Air Cleaner	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17705-28251	Cap Sub-Assy, Air Cleaner	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17705-28252	Cap Sub-Assy, Air Cleaner	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17751-28060	Inlet, Air Cleaner, No.1	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17801-31120	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17880-28240	Hose Assy, Air Cleaner	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17881-28260	Hose, Air Cleaner, No.1	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17893-28060	Resonator, Intake Air	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
17894-28110	Resonator, Intake Air, No.2	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
22204-0H010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
22204-0P010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
22204-0T010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
22204-31010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
22204-31020	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
90099-00289	SCREW	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
90119-06245	BOLT	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
90119-06952	New Genuine Part	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
90119-06953	BOLT WWASHER	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
90466-62002	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
90904-06008	Tube, Union(Fog Air Cleaner Hose)	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
96111-10380	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
96111-10850	Clamp, Hose(For Air Connector)	Air Cleaner ([11.2005 - ] (0511- )1AZFE,2AZFE)
