Search › Model › ACA28

ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories

← Back to categories

4,219 items

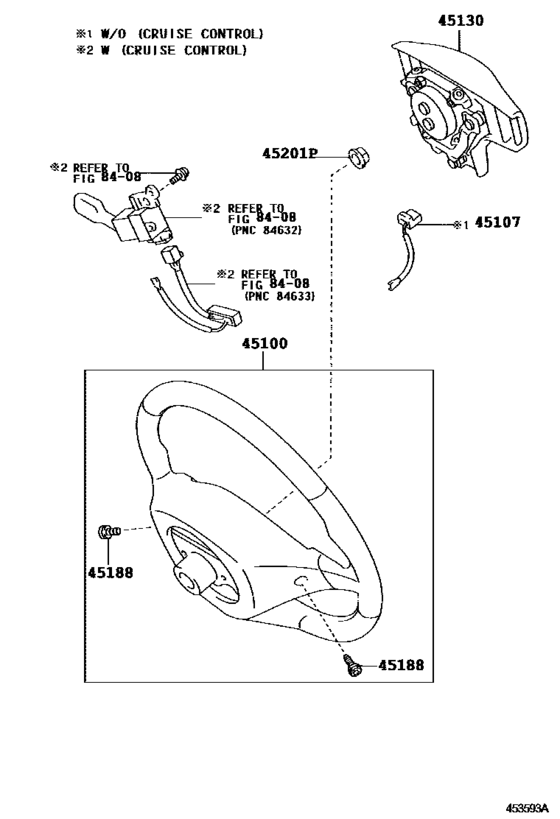

Steering Wheel ([07.2003 - ] 3-SPOKE (0307- )) 11

#	OEM	Part name
45100	45100-42200-C0	Wheel Assy, Steering
45100	45100-42210-C0	Wheel Assy, Steering
45100	45100-42220-C0	Wheel Assy, Steering
45100	45100-42230-C0	Wheel Assy, Steering
45107	45107-42020	Wire Sub-Assy, Horn Button
45130	45130-42120-C0	Button Assy, Horn
45130	45130-42230-C0	Button Assy, Horn
45130	45130-42140-C0	Button Assy, Horn
45130	45130-42250-C0	Button Assy, Horn
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set

OEM	Part name	Category
45100-42200-C0	Wheel Assy, Steering	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45100-42210-C0	Wheel Assy, Steering	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45100-42220-C0	Wheel Assy, Steering	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45100-42230-C0	Wheel Assy, Steering	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45107-42020	Wire Sub-Assy, Horn Button	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45130-42120-C0	Button Assy, Horn	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45130-42140-C0	Button Assy, Horn	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45130-42230-C0	Button Assy, Horn	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45130-42250-C0	Button Assy, Horn	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([07.2003 - ] 3-SPOKE (0307- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
