ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories
ACA28 ×

← Back to categories

4,219 items

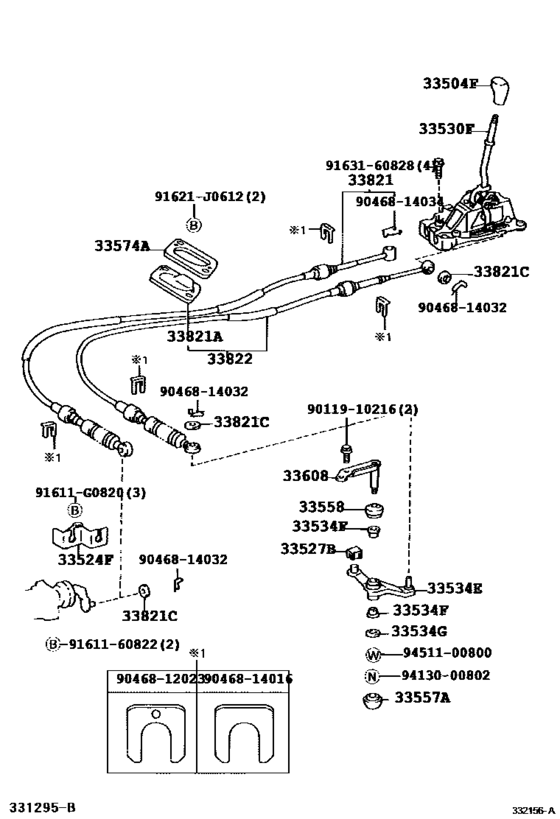

Shift Lever & Retainer ([08.2000 - ] (0008- )MTM) 32
#OEMPart name
33504 33504-13010-C0 Knob Sub-Assy, Shift Lever
33504 33504-13010-B0 Knob Sub-Assy, Shift Lever
33504 33504-42010-C0 Knob Sub-Assy, Shift Lever
33504 33504-52060-B1 Knob Sub-Assy, Shift Lever
33504 33504-42011-C0 Knob Sub-Assy, Shift Lever
33524 33524-28020 Bracket, Control Lever Housing Support (For Floor Shift)
33527 33557-33010 Bush (For Shift & Select Lever)
33530 33530-42060 Lever Assy, Shift (For Floor Shift)
33534 33534-28090 Crank, Selecting Bell, No.2
33534 90386-12022 Bush (For Selecting Bellcrank No.1)
33534 90201-08028 Washer, Plate (For Selecting Bellcrank No.2)
33557 33557-32010 Cover, Selecting Bellcrank Dust, No.1
33558 33558-10030 Cover, Selecting Bellcrank Dust, No.2
33574 33574-42030 Retainer, Shift Cable Grommet, No.1
33608 33608-12031 Support Sub-Assy, Selecting Bellcrank
33821 33821-42100 Cable Transmission Control Shift (For Floor Shift)
33821 33577-42050 Grommet, No.1 (For Transmission Control Cable)
33821 90201-08077 Washer, Plate (For Transmission Control Cable)
33821 90201-10042 Washer, Plate (For Transfer Control Cable)
33822 33822-42040 Cable Transmission Control Select (For Floor Shift)
91611 91611-G0820 Bolt
91621 91621-J0612 BOLT W-WASHER
9011910216 90119-10216 Bolt (For Control Shaft Cover)
9046812023 90468-12023 CLIP
9046814016 90468-14016 CLIP
9046814032 90468-14032 CLIP
9046814034 90468-14034 New Genuine Part
9161160822 91611-60822 Bolt
9163160828 91631-60828 BOLT WWASHER
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451100800 94511-00800 WASHERSPRING
