ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories
ACA28 ×

← Back to categories

4,219 items

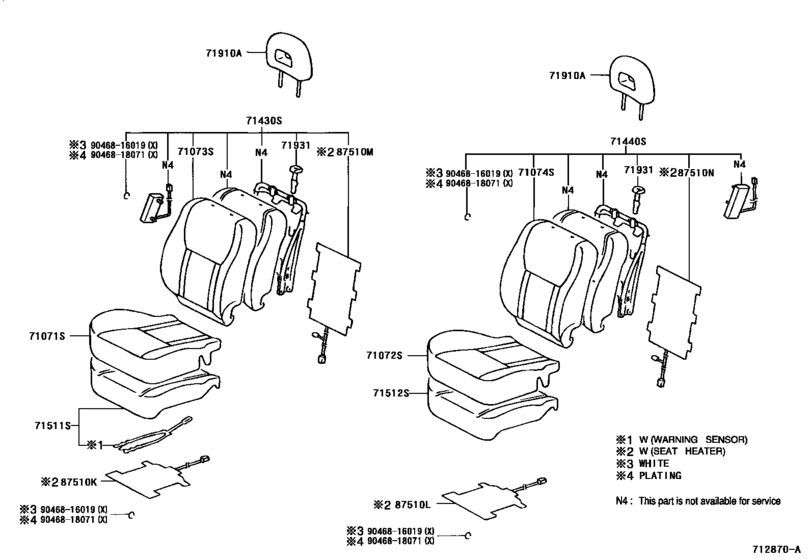

Seat & Seat Track ([07.2003 - ] W(SRS SIDE AIR BAG) (0307- )) 115
#OEMPart name
71071 71071-42210-B3 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42250-B3 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42250-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42310-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42311-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42310-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42311-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42320-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42321-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42320-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42321-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42350-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42360-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42360-E0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-42040-B3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42090-B3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42090-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42120-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42121-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42120-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42121-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42130-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42131-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42130-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42131-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42160-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42170-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-42170-E0 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-42260-B6 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42290-B3 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42290-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42310-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42311-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42310-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42311-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42320-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42320-B1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42330-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42331-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42330-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42331-E0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42340-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42340-E0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-42030-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42030-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42040-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42041-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42040-E0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42041-E0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42050-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-42050-E0 Cover, Front Seat Back, Lh(For Separate Type)
71430 71430-42340-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42360-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42361-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42360-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42361-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42380-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42380-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42450-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42390-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42390-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42440-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42450-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42460-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42460-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42510-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42520-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42521-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42520-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42521-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42530-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42530-E0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42540-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42540-E0 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-42030-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42050-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42051-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42050-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42051-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42070-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42070-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42080-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42080-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42090-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42100-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42100-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42110-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42110-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42120-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42130-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42131-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42130-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42131-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42140-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42140-E0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42150-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-42150-E0 Back Assy, Front Seat, Lh(For Separate Type)
71511 71052-42020 Pad, Front Seat Cushion, Lh (For Separate Type)
71512 71511-42050 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71511-42060 Pad, Front Seat Cushion, Lh (For Separate Type) - FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71910 71910-42080-B0 Headrest Assy, Front Seat
71910 71910-42090-B0 Headrest Assy, Front Seat
71910 71910-42320-B0 Headrest Assy, Front Seat
71910 71910-42090-E0 Headrest Assy, Front Seat
71910 71910-42320-E0 Headrest Assy, Front Seat
71910 71910-42100-B0 Headrest Assy, Front Seat
71910 71910-42100-E0 Headrest Assy, Front Seat
71931 71930-42020-B4 Support Assy, Front Seat Headrest
71931 71930-42020-E0 Support, Front Seat Headrest
71931 71931-42020-B4 Support Assy, Front Seat Headrest
71931 71931-42020-E0 Support, Front Seat Headrest
87510 87510-42110 Heater Assy, Front Seat Cushion, Rh
87510 87510-42130 Heater Assy, Front Seat Back, Rh
9046816019 90468-16019 Clip (For Rear Seat Back)
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
