Search › Model › ACA28

ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories

4,219 items

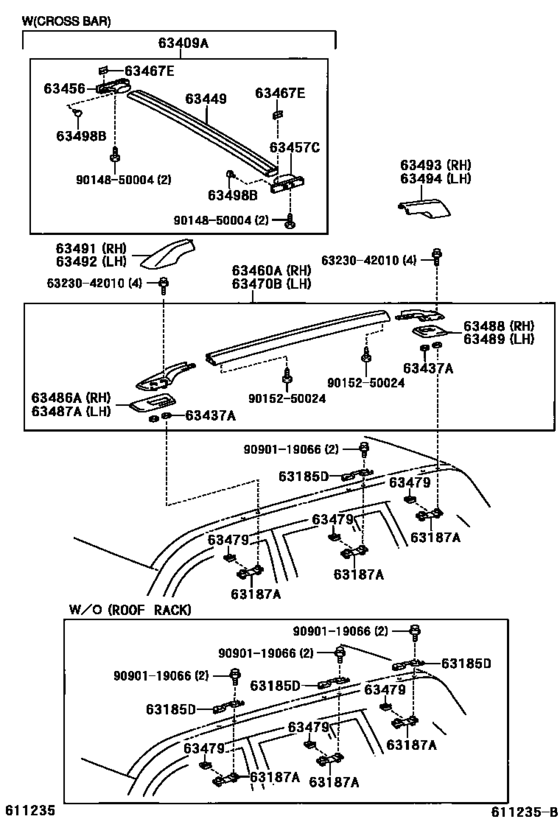

Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- )) 26

#	OEM	Part name
63185	63185-42020	Bracket, Roof Rack, Front Rh
63187	63187-42010	Bracket, Roof Rack, Rear
63409	63409-42011	Support Sub-Assy, Roof Rack, Center
63409	63409-42012	Support Sub-Assy, Roof Rack, Center
63437	63437-42010	Seal, Roof Carrier, No.2
63449	63449-42010	Bar, Roof Carrier Side
63456	63456-42011	Joint, Roof Rack Bar
63457	63457-42011	Joint, Roof Rack Bar, No.2
63460	63460-42013	Rack Assy, Roof, Rh
63467	63467-42011	Plate, Roof Rack, Rear
63470	63470-42013	Rack Assy, Roof, Lh
63479	63479-42010	Retainer, Roof Inner Rack
63486	63486-42010	Cushion, Roof Rack Leg, Front Rh
63487	63487-42010	Cushion, Roof Rack Leg, Front Lh
63488	63488-42010	Cushion, Roof Rack Leg, Rear Rh
63489	63489-42010	Cushion, Roof Rack Leg, Rear Lh
63491	63491-42012	Cover, Roof Rack Leg, Front Rh
63492	63492-42012	Cover, Roof Rack Leg, Front Lh
63493	63493-42012	Cover, Roof Rack Leg, Rear Rh
63494	63494-42012	Cover, Roof Rack Leg, Rear Lh
63498	63498-42011	Cap, Roof Carrier
63498	63498-42030	Cap, Roof Carrier
6323042010	63230-42010	Bolt Assy, Removable Roof
9014850004	90148-50004	New Genuine Part
9015250024	90152-50024	New Genuine Part
9090119066	90901-19066	BOLT WWASHER

OEM	Part name	Category
63185-42020	Bracket, Roof Rack, Front Rh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63187-42010	Bracket, Roof Rack, Rear	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63230-42010	Bolt Assy, Removable Roof	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63409-42011	Support Sub-Assy, Roof Rack, Center	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63409-42012	Support Sub-Assy, Roof Rack, Center	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63437-42010	Seal, Roof Carrier, No.2	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63449-42010	Bar, Roof Carrier Side	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63456-42011	Joint, Roof Rack Bar	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63457-42011	Joint, Roof Rack Bar, No.2	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63460-42013	Rack Assy, Roof, Rh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63467-42011	Plate, Roof Rack, Rear	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63470-42013	Rack Assy, Roof, Lh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63479-42010	Retainer, Roof Inner Rack	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63486-42010	Cushion, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63487-42010	Cushion, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63488-42010	Cushion, Roof Rack Leg, Rear Rh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63489-42010	Cushion, Roof Rack Leg, Rear Lh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63491-42012	Cover, Roof Rack Leg, Front Rh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63492-42012	Cover, Roof Rack Leg, Front Lh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63493-42012	Cover, Roof Rack Leg, Rear Rh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63494-42012	Cover, Roof Rack Leg, Rear Lh	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63498-42011	Cap, Roof Carrier	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
63498-42030	Cap, Roof Carrier	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
90148-50004	New Genuine Part	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
90152-50024	New Genuine Part	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))
90901-19066	BOLT WWASHER	Roof Panel & Back Panel ([08.2000 - ] ROOF RACK (0008- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
