ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories
ACA28 ×

← Back to categories

4,219 items

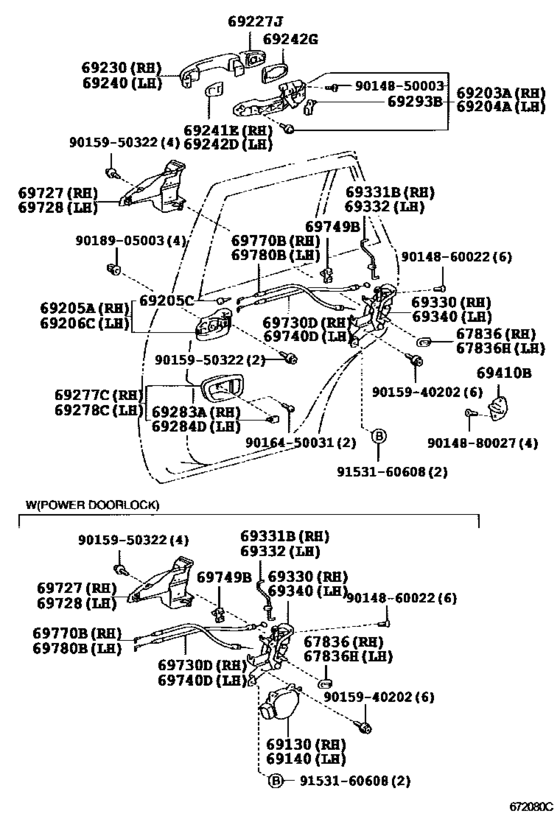

Rear Door Lock & Handle ([08.2000 - ] (0008- )) 68
#OEMPart name
67836 67836-14010 Cover, Rear Door Lock Child Protection, Rh
69130 69130-42030 Actuator Assy, Rear Door Lock, Rh
69140 69140-42030 Actuator Assy, Rear Door Lock, Lh
69203 69203-42020 Frame Sub-Assy, Rear Door Outside Handle, Rh
69203 69203-42030 Frame Sub-Assy, Rear Door Outside Handle, Rh
69204 69204-42020 Frame Sub-Assy, Rear Door Outside Handle, Lh
69204 69204-42030 Frame Sub-Assy, Rear Door Outside Handle, Lh
69205 69205-30150-B6 Handle Sub-Assy, Front Door Inside, Rh
69205 69205-30150-E2 Handle Sub-Assy, Front Door Inside, Rh
69205 90541-04014 Cushion, Console Box
69206 69206-30150-B6 Handle Sub-Assy, Front Door Inside, Lh
69206 69206-30150-E2 Handle Sub-Assy, Front Door Inside, Lh
69227 69227-42060 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-A1 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-A3 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-B0 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-P6 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-C0 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-E4 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-G4 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-J0 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-P2 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-X2 Cover, Rear Door Outside Handle, Rh
69230 69211-12220-A0 Handle Assy, Front Door, Outside Rh
69230 69211-12220-A7 Handle Assy, Front Door, Outside Rh
69230 69211-12220-B6 Handle Assy, Front Door, Outside Rh
69230 69211-12220-C1 Handle Assy, Front Door, Outside Rh
69230 69211-12220-E4 Handle Assy, Front Door, Outside Rh
69230 69211-12220-G4 Handle Assy, Front Door, Outside Rh
69230 69211-12220-J3 Handle Assy, Front Door, Outside Rh
69230 69211-12220-P2 Handle Assy, Front Door, Outside Rh
69230 69211-12220-X2 Handle Assy, Front Door, Outside Rh
69230 69211-42010 Handle Assy, Front Door, Outside Rh
69241 69241-42020 Pad, Front Door Outside Handle, Rh
69242 69242-42010 Pad, Front Door Outside Handle, Lh
69277 69277-30150-B9 Bezel, Front Door Inside Handle, Rh
69277 69277-30150-B1 Bezel, Front Door Inside Handle, Rh
69277 69277-30150-E4 Bezel, Front Door Inside Handle, Rh
69278 69278-30080-B9 Bezel, Front Door Inside Handle, Lh
69278 69278-30080-E4 Bezel, Front Door Inside Handle, Lh
69283 69283-30040-E3 Plug, Front Door Inside Handle Bezel, Rh
69283 69283-30040-P0 Plug, Front Door Inside Handle Bezel (DK.GRAY)
69284 69284-30040-E3 Plug, Front Door Inside Handle Bezel, Rh
69284 69284-30040-P0 Plug, Front Door Inside Handle Bezel, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69293 69293-12040 Snap, Front Door Outside Handle
69330 69305-42020 Lock Assy, Rear Door, Rh
69330 69330-42060 Lock Assy, Rear Door, Rh
69331 69331-42020 Rod, Rear Door Lock Open, Rh
69332 69332-42020 Rod, Rear Door Lock Open, Lh
69340 69306-42020 Lock Assy, Rear Door, Lh
69340 69340-42060 Lock Assy, Rear Door, Lh
69410 69410-20110 Plate Assy, Front Door Lock Striker
69727 69727-42030 Protector, Rear Door Inside Locking Link, Rh
69728 69728-42030 Protector, Rear Door Inside Locking Link, Lh
69730 69730-42020 Cable Assy, Rear Door Lock Remote Control, Rh
69749 69749-32040 Clamp, Front Door Lock Link
69770 69770-42040 Cable Assy, Rear Door Inside Locking, Rh
69780 69780-42040 Cable Assy, Rear Door Inside Locking, Lh
9014850003 90148-50003 Screw Hex Lobular
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880027 90148-80027 Screw Hex Lobular
9015940202 90159-40202 SCREW WWASHER
9015950322 90159-50322 SCREW WWASHER
9016450031 90164-50031 SCREW BINDING
9018905003 90189-05003 CLIP
9153160608 91531-60608 BOLT FLANGE
