Search › Model › ACA28

ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories

4,219 items

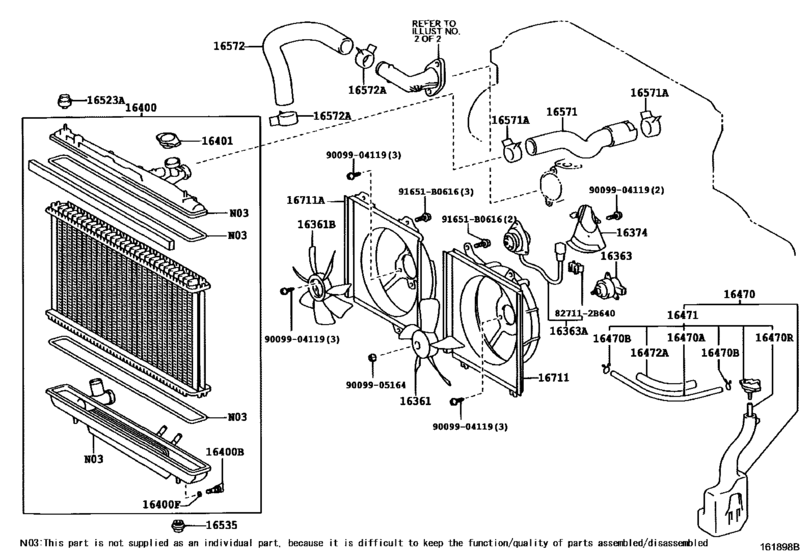

Radiator & Water Outlet ([07.2003 - ] (0307- )) 47

#	OEM	Part name
16258	16258-28011	Gasket(For Heater Return)
16258	16258-28030	Gasket(For Heater Return)
16258	16258-28020	Gasket(For Water By-Pass Pipe)
16258	16258-28040	Gasket(For Oil Cooler Pipe Union Bolt)
16261	16261-28060	Hose, Water By-Pass
16261	96135-51300	Clamp, Hose
16264	16264-28080	Hose, Water By-Pass, No.2
16268	16268-28010	Pipe, Water By-Pass, No.1
16268	16268-28100	Pipe, Water By-Pass, No.1
16321	16321-28010	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16331	90916-03084	Thermostat
16331	90916-03129	Thermostat
16331	90916-03136	Thermostat
16361	16361-21050	Fan
16361	16361-23050	Fan
16361	16361-28070	Fan, No.2
16363	16363-28160	Motor, Cooling Fan
16363	16363-28050	Motor, Cooling Fan, No.2
16374	16374-28010	Insulator, Cooling Fan Motor
16400	16400-28500	Radiator Assy
16400	16417-15210	Plug, Radiator Drain Cock
16400	16418-15520	Packing(For Radiator Drain Cock)
16400	16400-28480	Radiator Assy
16401	16401-7A470	Cap Sub-Assy, Radiator
16470	16470-28050	Tank Assy, Radiator Reserve
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-28020	Cap Sub-Assy, Reserve Tank
16472	16483-28050	Protector, Hose
16523	16523-28010	Cushion, Sub-Radiator Support
16535	16535-74210	Support, Radiator, Lower
16571	16571-28060	Hose, Radiator, Inlet
16571	90467-37005	Clip(For Water Inlet Hose)
16572	16572-28030	Hose, Radiator, Outlet
16711	16711-28150	Shroud, Fan
16711	16711-28180	Shroud, Fan, No.2
91631	91631-G0614	BOT WWASHER
91651	91651-B0616	BOLT WWASHER
827112	82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9012606012	90126-06012	STUD, HEX LOBULAR
9012606022	90126-06022	STUD HEX LOBULAR
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28011	Gasket(For Heater Return)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16258-28020	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16258-28040	Gasket(For Oil Cooler Pipe Union Bolt)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16261-28060	Hose, Water By-Pass	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16264-28080	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16268-28010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16268-28100	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16321-28010	Inlet, Water	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16361-21050	Fan	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16361-23050	Fan	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16361-28070	Fan, No.2	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16363-28050	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16363-28160	Motor, Cooling Fan	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16374-28010	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16400-28480	Radiator Assy	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16400-28500	Radiator Assy	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16401-7A470	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16405-28020	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16417-15210	Plug, Radiator Drain Cock	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16470-28050	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16483-28050	Protector, Hose	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16523-28010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16535-74210	Support, Radiator, Lower	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16571-28060	Hose, Radiator, Inlet	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16572-28030	Hose, Radiator, Outlet	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16711-28150	Shroud, Fan	Radiator & Water Outlet ([07.2003 - ] (0307- ))
16711-28180	Shroud, Fan, No.2	Radiator & Water Outlet ([07.2003 - ] (0307- ))
82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90099-05164	Nut	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90126-06012	STUD, HEX LOBULAR	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90126-06022	STUD HEX LOBULAR	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90916-03084	Thermostat	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90916-03129	Thermostat	Radiator & Water Outlet ([07.2003 - ] (0307- ))
90916-03136	Thermostat	Radiator & Water Outlet ([07.2003 - ] (0307- ))
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([07.2003 - ] (0307- ))
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([07.2003 - ] (0307- ))
94150-80640	NUT FLANGE	Radiator & Water Outlet ([07.2003 - ] (0307- ))
96135-51300	Clamp, Hose	Radiator & Water Outlet ([07.2003 - ] (0307- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
