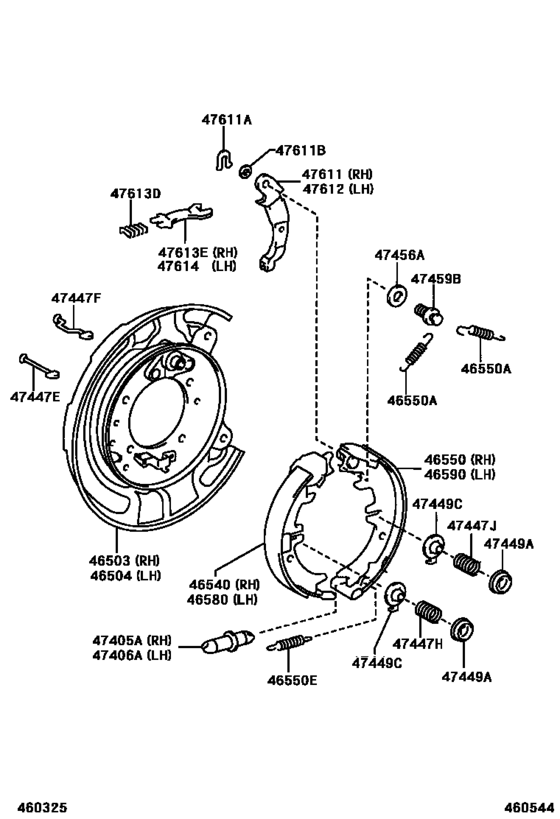

| 46503-42021 |
Plate Sub-Assy, Parking Brake, Rh |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 46504-42021 |
Plate Sub-Assy, Parking Brake, Lh |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 46540-44010 |
Shoe Assy, Parking Brake, No.1 |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 46550-44010 |
Shoe Assy, Parking Brake, Rh Or Center No.2 |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 46590-44010 |
Shoe Assy, Parking Brake, Lh No.2 |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47405-30040 |
Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47406-30040 |
Adjuster Sub-Assy, Parking Brake Shoe, Lh |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47447-30020 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47447-50010 |
Pin, Shoe Hold Down Spring(For Parking Brake) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47449-30030 |
Cup, Brake Shoe Hold Down |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47449-40010 |
Cup, Brake Shoe Hold Down |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47456-33010 |
Plate, Shoe Guide(For Parking Brake) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47459-30010 |
Bolt, Parking Brake Shoe Guide Plate Set |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47611-28030 |
Lever, Parking Brake Shoe, Rh |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47612-28030 |
Lever, Parking Brake Shoe, Lh |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47613-28010 |
Strut, Parking Brake Shoe |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 47614-28010 |
Strut, Parking Brake Shoe |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90213-07018 |
Washer, Type C(For Parking Brake Shoe) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90501-16156 |
Spring, Compression, No.1(For Parking Brake Shoe Hold Down) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90501-16157 |
Spring, Compression, No.2(For Parking Brake Shoe Hold Down) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90504-14002 |
Spring, Compression(For Parking Brake Shoe Strut) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90506-12051 |
Spring, Tension, No.2(For Parking Brake Shoe Return) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90507-20016 |
Spring, Tension, No.1(For Parking Brake Shoe Return) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90564-09184 |
Shim(For Parking Brake Shoe) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90564-09185 |
Shim(For Parking Brake Shoe) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
| 90564-09186 |
Shim(For Parking Brake Shoe) |
Parking Brake & Cable ([07.2003 - ] W(REAR DISC BRAKE) (0307- )) |
