ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories

4,219 items

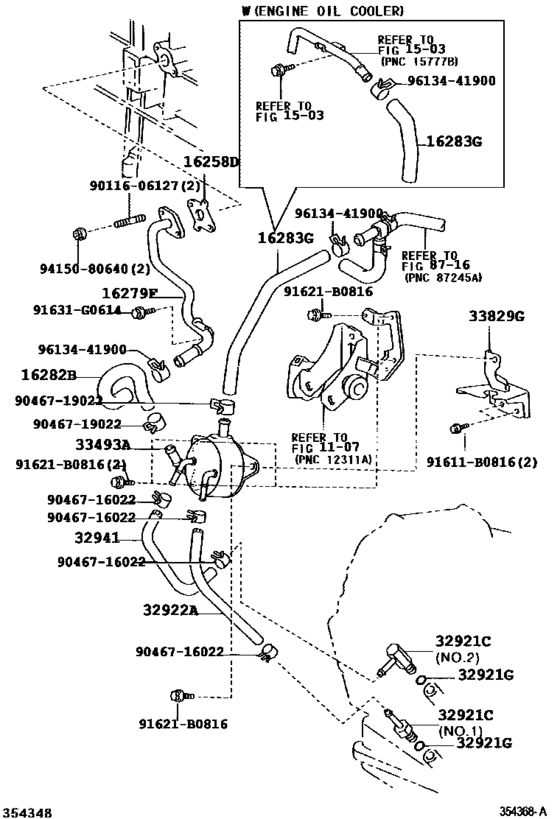

Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM) 22

#	OEM	Part name
16258	16258-28040	Gasket(For Oil Cooler Pipe Union Bolt)
16279	16279-28060	Pipe, Water By-Pass, No.3
16282	16282-28060	Hose, Water By-Pass, No.5
16283	16283-28090	Hose, Water By-Pass, No.6
16283	16283-28100	Hose, Water By-Pass, No.6
32921	90404-13004	Union(For Oil Cooler Tube)
32921	90404-13010	Union(For Oil Cooler Tube)
32921	90407-13009	Union(For Oil Cooler Tube)
32921	90407-13010	Union(For Oil Cooler Tube)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32922	90445-17101	Hose, Oil Cooler Water Outlet
32941	32941-42010	Hose, Oil Cooler Inlet, No.1
33493	33493-42020	Cooler, Transmission Oil
33829	33829-42010	Support, Transmission Control Cable
91611	91611-B0816	Bolt
91621	91621-B0816	BOLT WWASHER
91631	91631-G0614	BOT WWASHER
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9046716022	90467-16022	Clip(For Water Inlet Hose)
9046719022	90467-19022	Clip(For Ventilation Hose No.2)
9415080640	94150-80640	NUT FLANGE
9613441900	96134-41900	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
16258-28040	Gasket(For Oil Cooler Pipe Union Bolt)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
16279-28060	Pipe, Water By-Pass, No.3	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
16282-28060	Hose, Water By-Pass, No.5	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
16283-28090	Hose, Water By-Pass, No.6	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
16283-28100	Hose, Water By-Pass, No.6	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
32941-42010	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
33493-42020	Cooler, Transmission Oil	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
33829-42010	Support, Transmission Control Cable	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90116-06127	Bolt, Stud(For Oil Pan)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90404-13004	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90404-13010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90407-13009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90407-13010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90445-17101	Hose, Oil Cooler Water Outlet	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
90467-19022	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
91621-B0816	BOLT WWASHER	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
91631-G0614	BOT WWASHER	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
94150-80640	NUT FLANGE	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Oil Cooler & Tube (Atm) ([07.2003 - ] U140F,U241E (0307- )ATM)
