Search › Model › ACA28

ACA28

Toyota RAV4-VANGUARD · 2003 · 4,219 parts · 183 categories

4,219 items

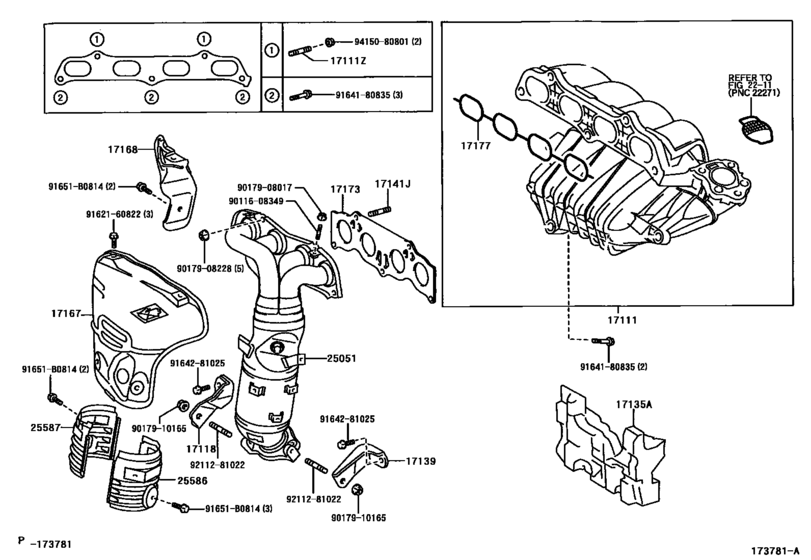

Manifold ([07.2003 - ] (0307- )) 28

#	OEM	Part name
17111	17120-28090	Manifold, Intake
17111	17120-28101	Manifold, Intake
17111	90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)
17118	17118-28020	Stay, Manifold
17135	17135-28010	Insulator, Intake Manifold, No.1
17135	17135-28011	Insulator, Intake Manifold, No.1
17139	17139-28010	Stay, Manifold, No.2
17141	90126-08037	Bolt, Stud(For Oil Strainer)
17167	17167-28040	Insulator, Exhaust Manifold Heat, No.1
17168	17168-28011	Insulator, Exhaust Manifold Heat, No.2
17173	17173-28010	Gasket, Exhaust Manifold To Head
17177	17177-28010	Gasket, Intake Manifold To Head, No.1
17177	17177-28031	Gasket, Intake Manifold To Head, No.1
25051	25051-28220	Converter Sub-Assy, Exhaust Manifold
25051	25051-28430	Converter Sub-Assy, Exhaust Manifold
25586	25586-28031	Insulator, Manifold Converter, No.1
25587	25587-28041	Insulator, Manifold Converter, No.2
91651	91651-B0814	Bolt with washer
91651	90119-A0109	New Genuine Part
9011608349	90116-08349	New Genuine Part
9017908017	90179-08017	NUT
9017908228	90179-08228	NUT
9017910165	90179-10165	NUT
9162160822	91621-60822	Bolt, W/washer(For Repair Actuator Set)
9164180835	91641-80835	Bolt, Compressor, No.1
9164281025	91642-81025	BOLT WWASHER
9211281022	92112-81022	BOLT STUD
9415080801	94150-80801	Nut

OEM	Part name	Category
17118-28020	Stay, Manifold	Manifold ([07.2003 - ] (0307- ))
17120-28090	Manifold, Intake	Manifold ([07.2003 - ] (0307- ))
17120-28101	Manifold, Intake	Manifold ([07.2003 - ] (0307- ))
17135-28010	Insulator, Intake Manifold, No.1	Manifold ([07.2003 - ] (0307- ))
17135-28011	Insulator, Intake Manifold, No.1	Manifold ([07.2003 - ] (0307- ))
17139-28010	Stay, Manifold, No.2	Manifold ([07.2003 - ] (0307- ))
17167-28040	Insulator, Exhaust Manifold Heat, No.1	Manifold ([07.2003 - ] (0307- ))
17168-28011	Insulator, Exhaust Manifold Heat, No.2	Manifold ([07.2003 - ] (0307- ))
17173-28010	Gasket, Exhaust Manifold To Head	Manifold ([07.2003 - ] (0307- ))
17177-28010	Gasket, Intake Manifold To Head, No.1	Manifold ([07.2003 - ] (0307- ))
17177-28031	Gasket, Intake Manifold To Head, No.1	Manifold ([07.2003 - ] (0307- ))
25051-28220	Converter Sub-Assy, Exhaust Manifold	Manifold ([07.2003 - ] (0307- ))
25051-28430	Converter Sub-Assy, Exhaust Manifold	Manifold ([07.2003 - ] (0307- ))
25586-28031	Insulator, Manifold Converter, No.1	Manifold ([07.2003 - ] (0307- ))
25587-28041	Insulator, Manifold Converter, No.2	Manifold ([07.2003 - ] (0307- ))
90116-08349	New Genuine Part	Manifold ([07.2003 - ] (0307- ))
90119-A0109	New Genuine Part	Manifold ([07.2003 - ] (0307- ))
90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([07.2003 - ] (0307- ))
90126-08037	Bolt, Stud(For Oil Strainer)	Manifold ([07.2003 - ] (0307- ))
90179-08017	NUT	Manifold ([07.2003 - ] (0307- ))
90179-08228	NUT	Manifold ([07.2003 - ] (0307- ))
90179-10165	NUT	Manifold ([07.2003 - ] (0307- ))
91621-60822	Bolt, W/washer(For Repair Actuator Set)	Manifold ([07.2003 - ] (0307- ))
91641-80835	Bolt, Compressor, No.1	Manifold ([07.2003 - ] (0307- ))
91642-81025	BOLT WWASHER	Manifold ([07.2003 - ] (0307- ))
91651-B0814	Bolt with washer	Manifold ([07.2003 - ] (0307- ))
92112-81022	BOLT STUD	Manifold ([07.2003 - ] (0307- ))
94150-80801	Nut	Manifold ([07.2003 - ] (0307- ))
